York LX series Installation Manual

21
Model
Dual Capacity
024 036 048 060 072
Compressor (1 each) Copeland Ultra Tech, Dual Capacity Scroll
Factory Charge R410a, oz [kg] Vertical 39 [1.05] 52 [1.47] 68 [1.93] 76 [2.15] 88 [2.49]
Factory Charge R410a, oz [kg] Horizontal 38 [1.08] 52 [1.47] 68 [1.93] 72 [2.04] 85 [2.41]
ECM Blower Motor & Blower
Blower Motor Type/Speeds ECM 5 Speed ECM
Blower Motor- hp [W] ECM 1/2 [373] 1/2 [373] 1 [746] 1 [746] 1 [746]
Blower Wheel Size (Dia x W), in. [mm] ECM
9 x 7
[229 x 178]
9 x 7
[229 x 178]
11 x 1 0
[279 x 254]
1 1 x 1 0
[279 x 254]
1 1 x 1 0
[279 x 254]
Coax and Water Piping
Water Connections Size - Swivel - in [mm] 1” [25.4] 1” [25.4] 1” [25.4] 1” [25.4] 1” [25.4]
HWG Connection Size - Female Sweat I.D. - in [mm] 1/2” [12.7] 1/2” [12.7] 1/2” [12.7] 1/2” [12.7] 1/2” [12.7]
Coax & Piping Water Volume - gal [l] .35 [1.3] .7 [2.6] .7 [2.6] 1.3 [4.9] 1.6 [6.1]
Vertical
Air Coil Dimensions (H x W), in. [mm]
1 9 x 2 0
[483 x 508]
2 4 x 2 0
[610 x 508]
2 8 x 2 5
[711 x 635]
2 8 x 2 5
[711 x 635]
32 x 25
[813 x 635]
Air Coil Total Face Area, ft2 [m2] 2.6 [0.245] 3.3 [0.310] 4.9 [0.452] 4.9 [0.452] 5.6 [0.516]
Air Coil Tube Size, in [mm] 3/8 [9.5] 3/8 [9.5] 3/8 [9.5] 3/8 [9.5] 3/8 [9.5]
Air Coil Number of rows 3 3 3 3 3
Optional Filter - 1” [25mm] Pleated MERV8 Throwaway, in [mm]
20 x 24
[508 x 610]
24 x 24
[610 x 610]
28 x 30
[711 x 762]
28 x 30
[711 x 762]
30 x 32
[762 x 813]
Weight - Operating, lb [kg] 198 [90] 221 [100] 303 [137] 329 [149] 350 [159]
Weight - Packaged, lb [kg] 218 [99] 241 [109] 323 [147] 349 [158] 370 [168]
Horizontal
Air Coil Dimensions (H x W), in. [mm]
18 x 21
[457 x 533]
18 x 27
[457 x 686]
20 x 35
[508 x 889]
20 x 35
[508 x 889]
20 x 40
[508 x 1016]
Air Coil Total Face Area, ft2 [m2] 2.6 [.244] 3.4 [0.314] 4.9 [0.452] 4.9 [0.452] 5.6 [0.516]
Air Coil Tube Size, in [mm] 3/8 [9.5] 3/8 [9.5] 3/8 [9.5] 3/8 [9.5] 3/8 [9.5]
Air Coil Number of rows 3 3 3 3 3
Optional Filter - 1” [25mm] Pleated MERV8 Throwaway, in [mm]
1 - 18 x 24
[457 x 610]
1 - 18 x 32
[457 x 813]
1 - 20 x 37
[508 x 940]
1 - 20 x 37
[508 x 940]
1 - 20 x 20
[508 x 508]
1 - 20 x 22
[508 x 559]
Weight - Operating, lb [kg] 228 [103] 250 [113] 325 [147] 358 [162] 369 [167]
Weight - Packaged, lb [kg] 248 [112] 270 [122] 345 [156] 378 [171] 389 [176]
12/14/2016

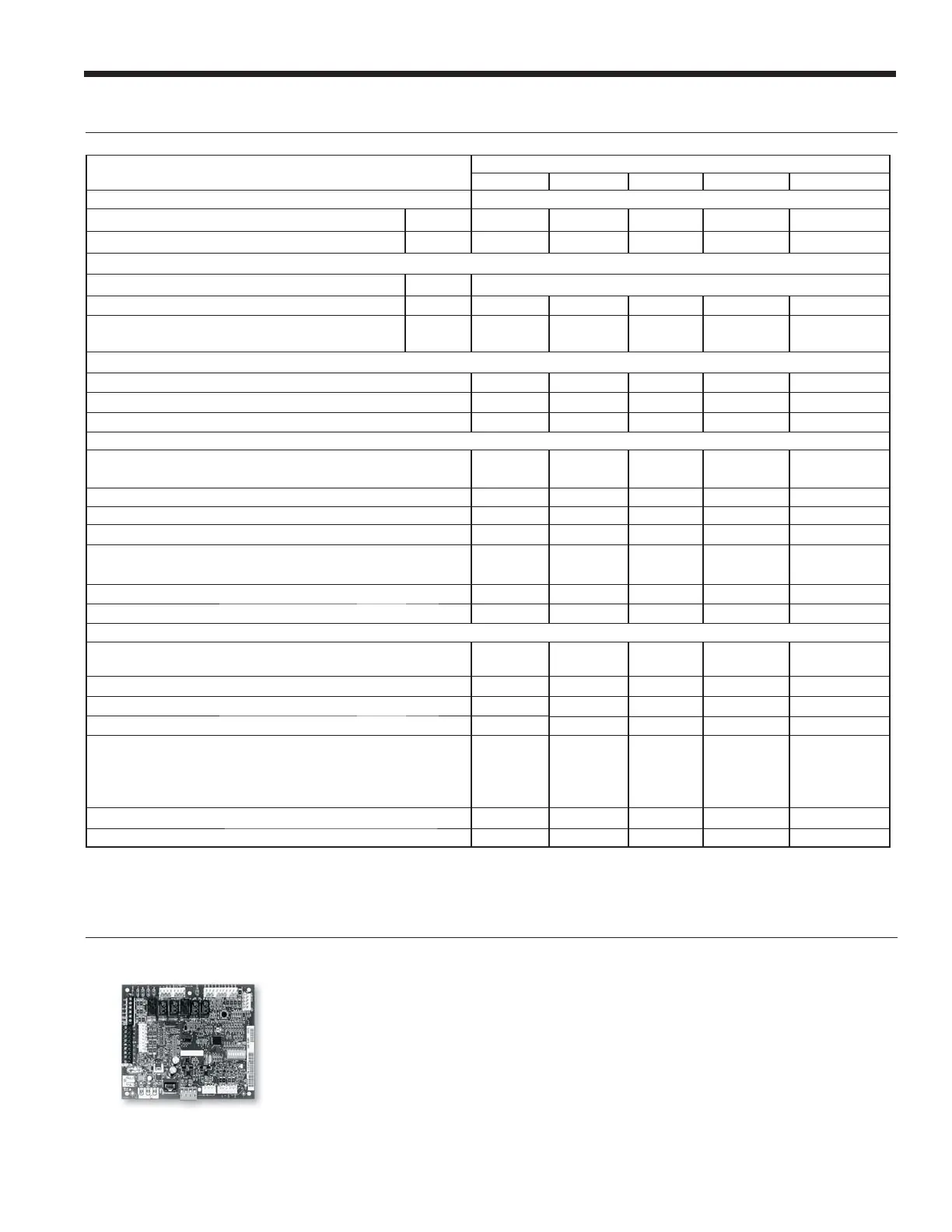

Physical Data
Aurora ‘Base’ Control
The Aurora ‘Base’ Control (ABC)
System is a complete residential
and commercial comfort system
that brings all aspects of the
HVAC system into one cohesive
module network. The ABC features
microprocessor control and HP, LP,
condensate and freeze detection,
over/under voltage faults, along with
communicating thermostat capability for complete fault detection
text at the thermostat. Aurora uses the Modbus communication
protocol to communicate between modules. Each module contains
the logic to control all features that are connected to the module.
The Aurora ‘Base’ Control (ABC) has two Modbus channels. The
first channel is configured as a master for connecting to devices
such as a communicating thermostat or other slave devices. The
second channel is configured as a slave for connecting the Aurora
Interface Diagnostics Tool (AID Tool).
The Aurora™ Control System
LX SERIES INSTALLATION MANUAL

York LX series Specifications

General

Refrigerant	R-410A
Series	LX
Cooling Capacity	1.5 to 5 tons
Warranty	10-year limited warranty
Sound Level	As low as 72 dBA (depending on model)
