York LX series Installation Manual

7
General Installation Information cont.
:STb@WUVb
!&BV`SORSR
@]RPg]bVS`a
6Sf<cba 
Pg]bVS`a
EOaVS`
DWP`ObW]\
7a]ZOb]`
0]ZbO\R
:]QYEOaVS`
1
4
/
/W`1]WZ
2
0
/W`1]WZ
 !
"

"
!

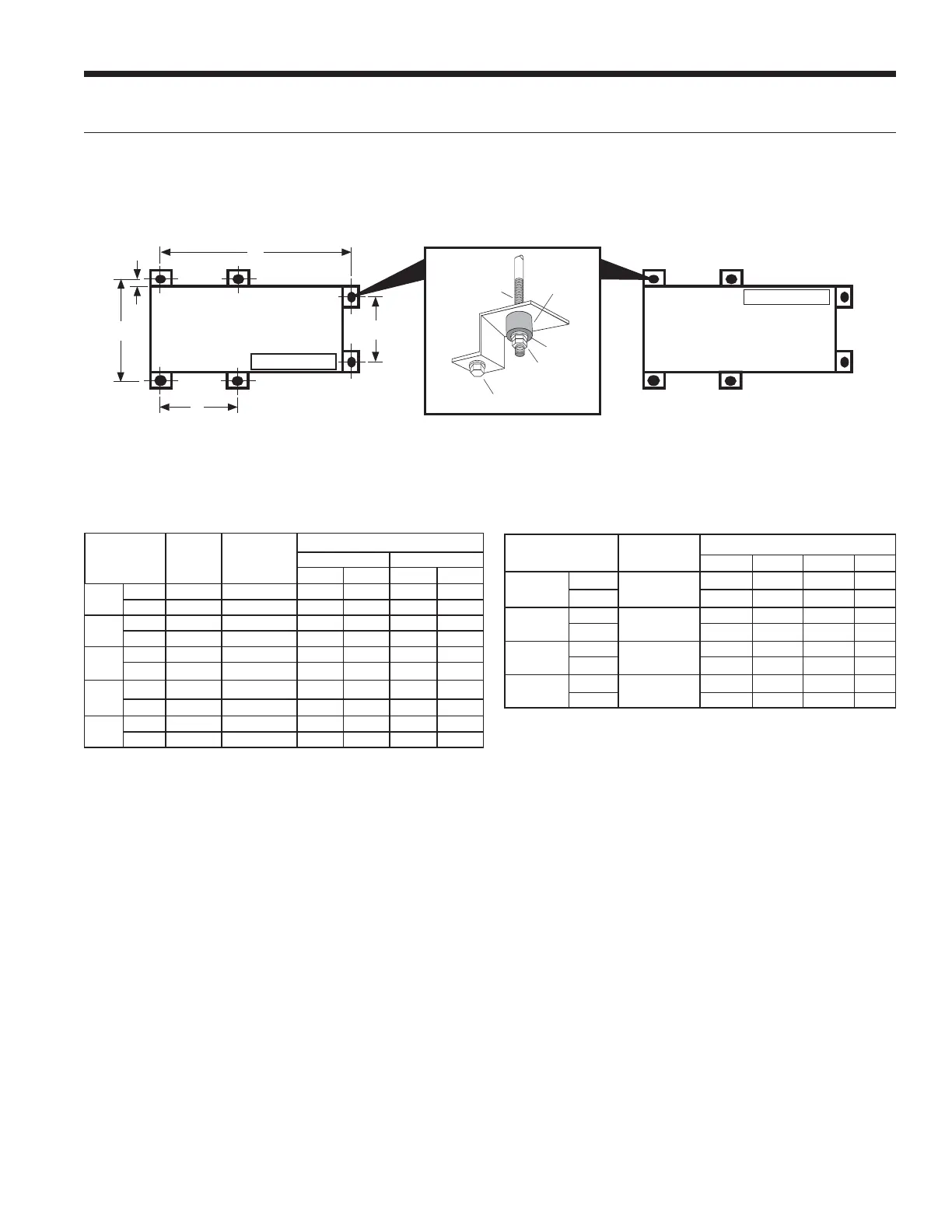

Figure 3: Hanger Location and Assembly
Weight Distribution
Model
Vertical
Weight
Horizontal
Weight
Horizontal Weight Distribution
Front Back
1234
024
lb 198 228 69 63 73 23
kg 90 103 31 29 33 10
036
lb 221 250 80 65 70 35
kg 100 113 36 29 32 16
048
lb 303 325 93 97 101 34
kg 137 147 42 44 46 15
060
lb 329 358 110 100 103 45
kg 149 162 50 45 47 20
072
lb 350 369 141 78 71 79
kg 159 167 64 35 32 36
8/3/2014
Hanger Bracket Locations (See Figure 3)
Model
Hanger Kit
Part Number
Unit Hanger Dimensions
ABCD
024
in.
99S500A04
53.7 25.1 21.4 n/a
cm. 136.4 63.8 54.4 n/a
036
in.
99S500A04
63.7 25.1 21.4 n/a
cm. 161.8 63.8 54.4 n/a
048-060
in.
99S500A03
72.7 28.1 24.4 29.3
cm. 184.7 71.4 62.0 74.4
072
in.
99S500A03
77.7 28.1 24.4 29.3
cm. 197.4 71.4 62.0 74.4
LX SERIES INSTALLATION MANUAL
