York MaxE YK - Fig. 2 - Refrigerant Flow-Through Chiller

YORK INTERNATIONAL
FORM 160.73-O2 (605)
8

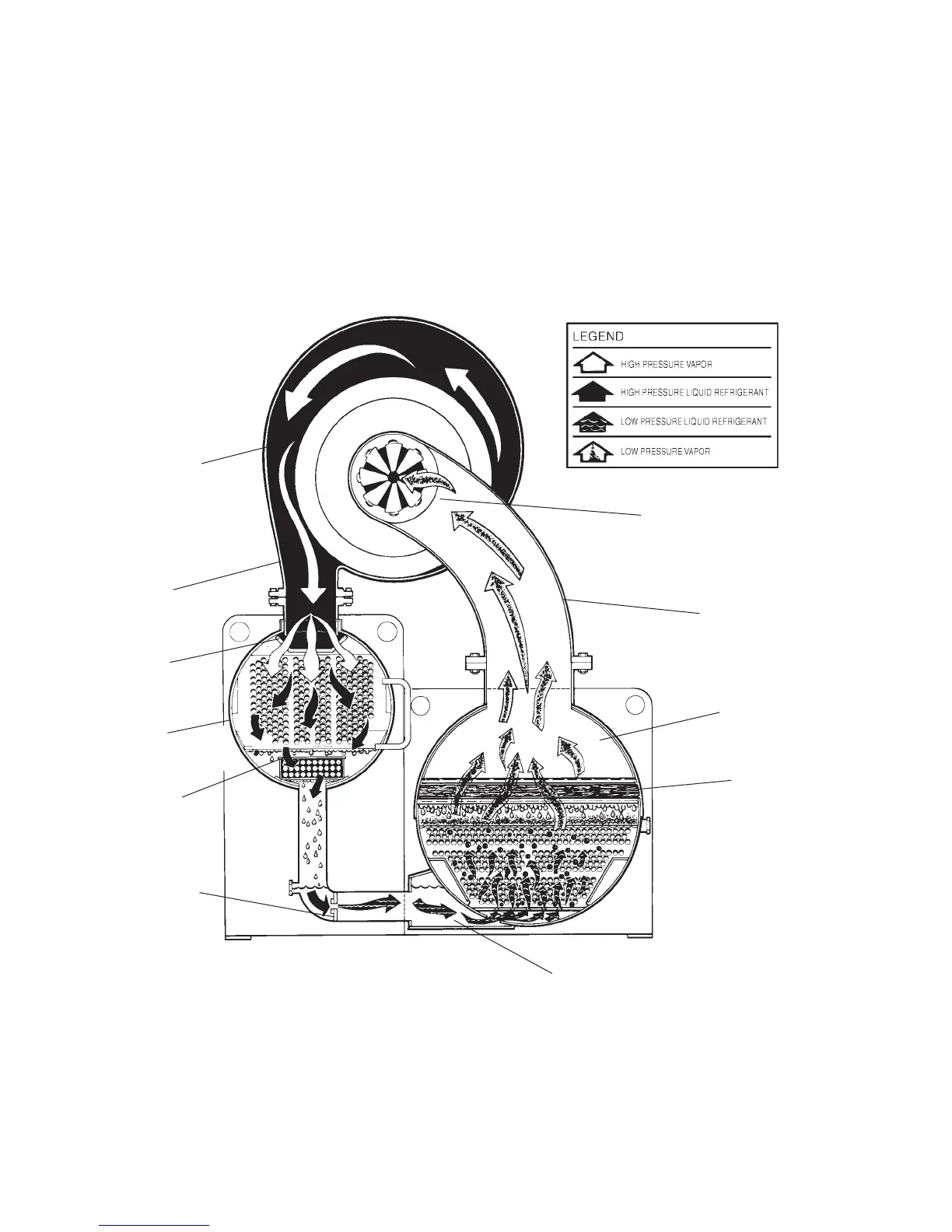

FIG. 2 – REFRIGERANT FLOW-THRU CHILLER
PREROTATION VANES
(See Detail A)
SUCTION
EVAPORATOR
ELIMINATOR
OIL COOLER
LD00924
FLOW CON TROL
ORIFICE
SUB-COOLER
CON DENS ER
DIS CHARGE
BAFFLE
DISCHARGE
COM PRES SOR
