York YS User Manual

37JOHNSON CONTROLS
FORM 160.80-EG1 (808)
* Applies to compressor end if connections are on motor end.
** Applies to motor end if connections are on motor end.
CONDENSER NOZZLE SIZES
WEIGHTS
(To be added to Standard Unit Weights on pages 36-37)
1-PASS
2-PASS
COMPR. END
COMPR. END
MOTOR END
MOTOR END

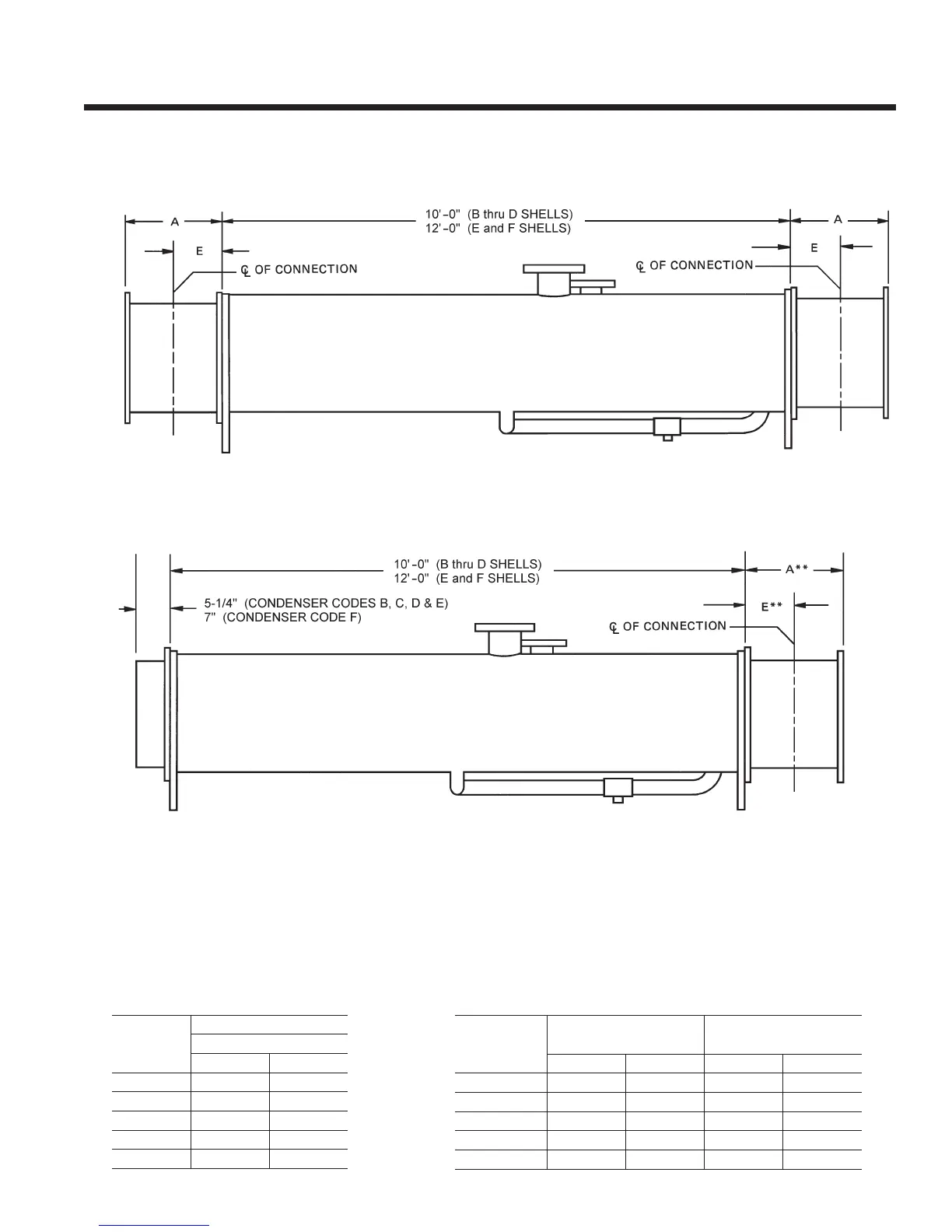

CONDENSER NOZZLE ARRANGEMENTS – MARINE WATER BOXES
R-22 & R-134a UNITS
*
*
CondEnsEr
CodE
noZZLE sIZE (In.)
no. oF PassEs
1 2
B
8 6
C
10 8
d
12 10
E
12 10
F
14 12
CondEnsEr
CodE
shIPPInG WEIGht
InCrEasE – LBs
oPEratInG WEIGht
InCrEasE – LBs
1-Pass 2-Pass 1-Pass 2-Pass
B
542 241 744 327
C
686 328 1018 475
d
818 317 1235 466
E
818 317 1235 466
F
1004 459 1586 704
