York YS - Condenser Nozzle Arrangements

46 JOHNSON CONTROLS
Dimensions – Metric - continued
1-PASS 1-PASS
2-PASS
2-PASS
MOTOR END
MOTOR END
COMPR. END COMPR. END
MOTOR END MOTOR END
COMPR. END
COMPR. END
DIMENSIONS (mm)

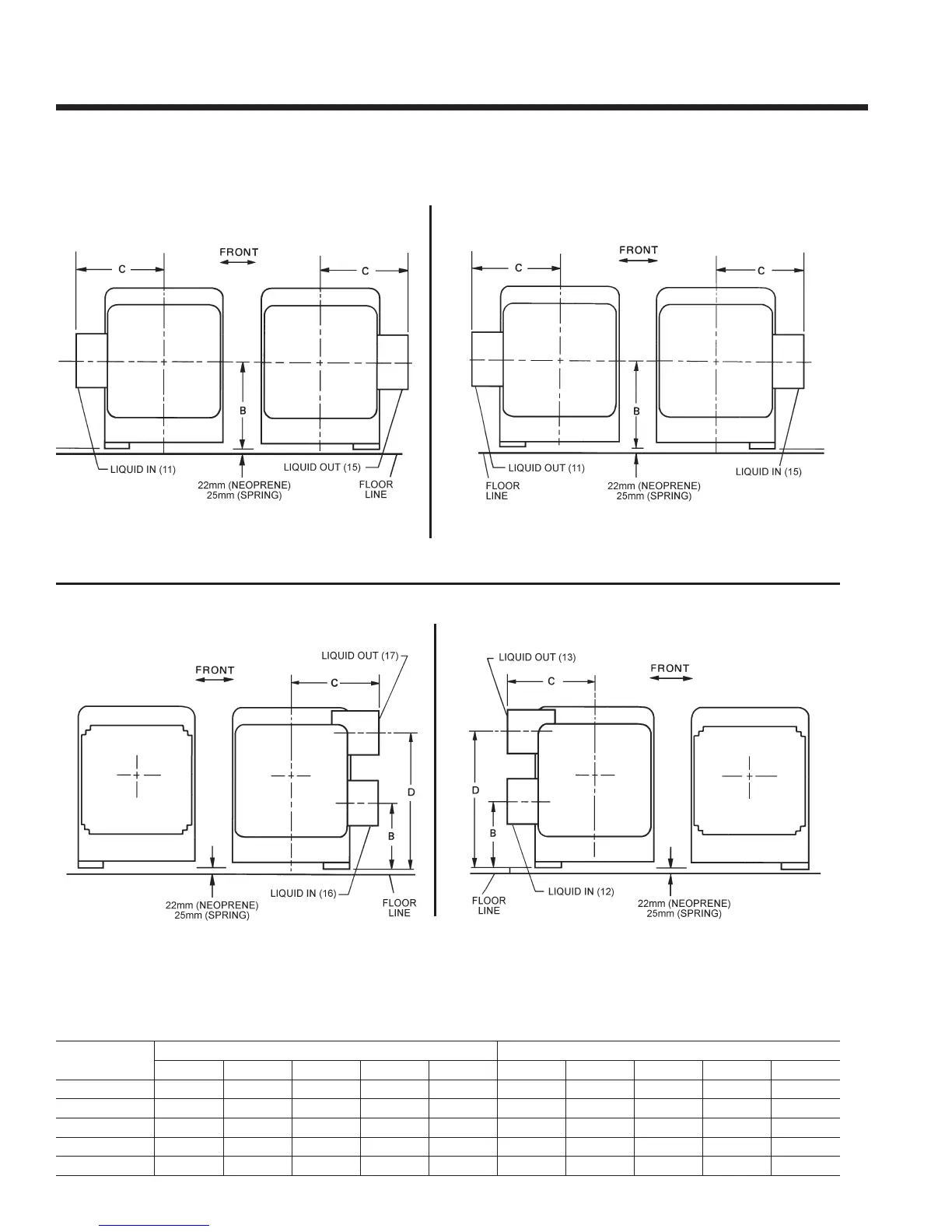

CONDENSER NOZZLE ARRANGEMENTS – MARINE WATER BOXES
R-22 & R-134a UNITS
CondEnsEr
sIZE
1-Pass 2-Pass
a B C d E a B C d E
B
394 429 448 — 197 343 283 448 575 171
C
445 425 470 — 222 394 305 470 660 197
d
508 508 537 — 254 445 381 537 806 222
E
508 508 537 — 254 445 381 537 806 222
F
533 622 638 — 267 533 470 638 972 267
