CONDENSER NOZZLE SIZES
WEIGHTS (To be added to Metric Unit Weights on pages 46-
* Applies to compressor end if connections are on motor end.
** Applies to motor end if connections are on motor end.
1-PASS
2-PASS
MOTOR END
MOTOR END
COMPR. END
COMPR. END

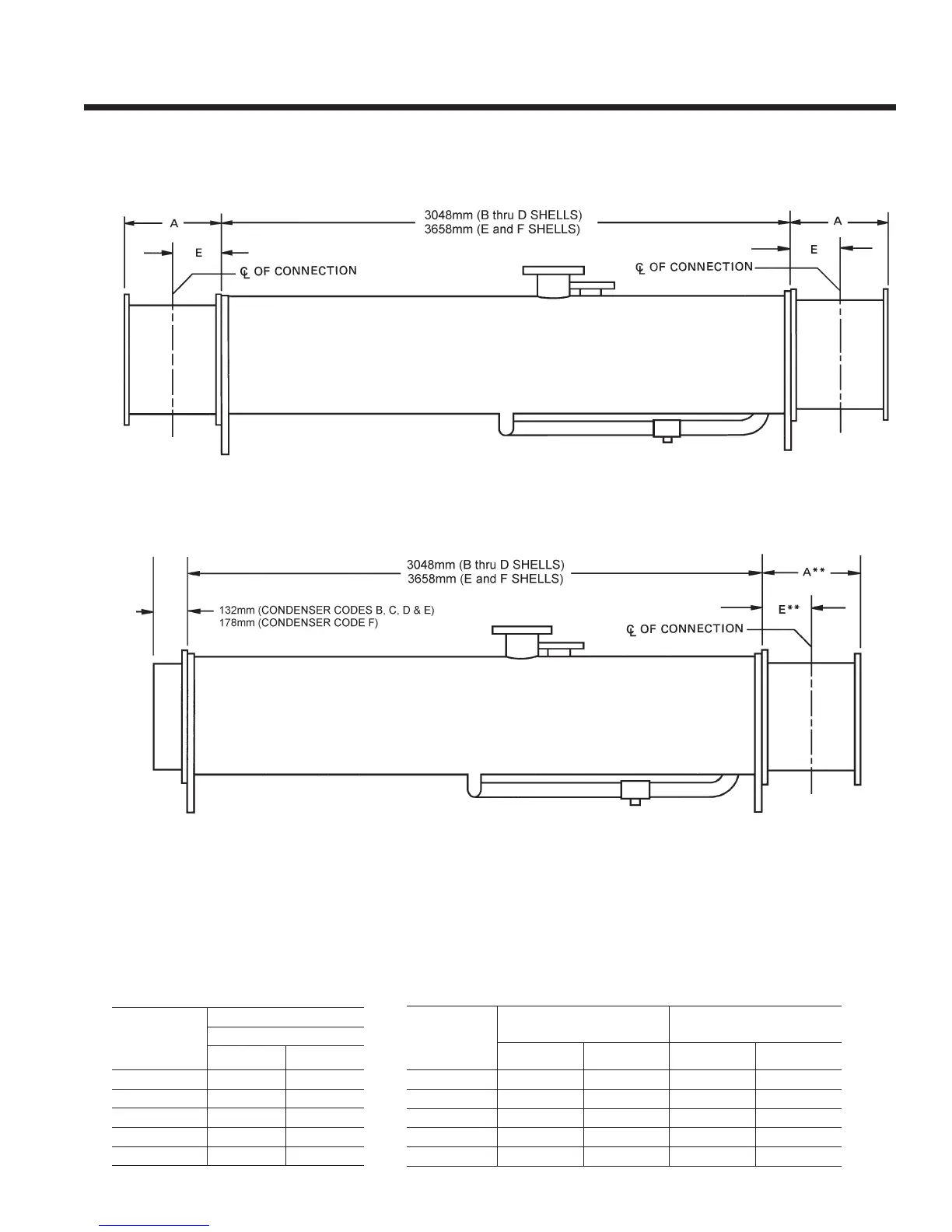

CONDENSER NOZZLE ARRANGEMENTS – MARINE WATER BOXES
R-22 & R-134a UNITS
*
*
CondEnsEr
CodE
noZZLE sIZE (In.)
no. oF PassEs
1 2
B
8 6
C
10 8
d
12 10
E
12 10
F
14 12
CondEnsEr
CodE
shIPPInG WEIGht
InCrEasE – KGs
oPEratInG WEIGht
InCrEasE – KGs
1-Pass 2-Pass 1-Pass 2-Pass
B
246 110 338 149
C
312 149 463 216
d
372 144 561 212
E
372 144 561 212
F
456 209 721 320
