45JOHNSON CONTROLS
FORM 160.80-EG1 (808)

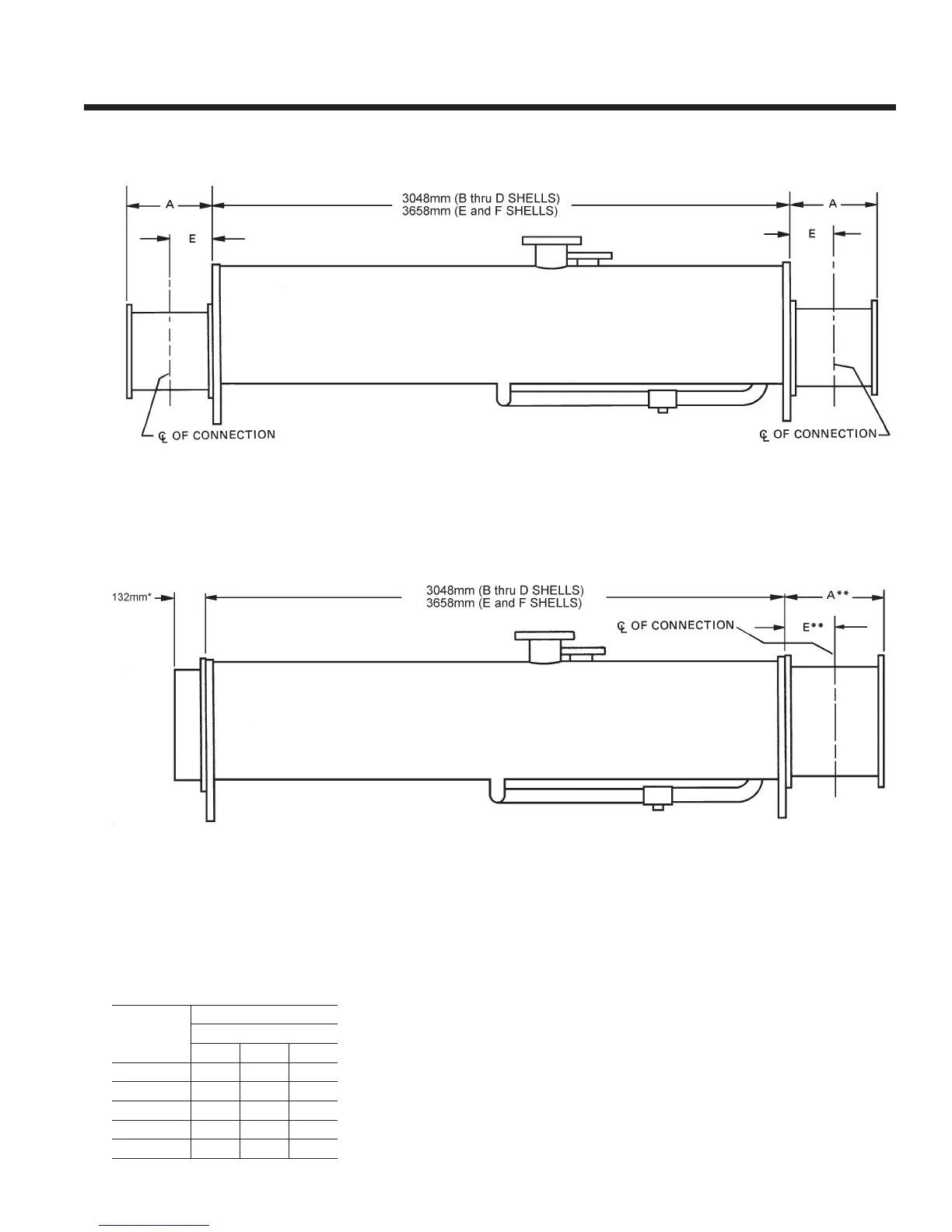

1-PASS & 3-PASS COOLERS
2-PASS COOLERS
* Applies to compressor end if connections are on motor end.
** Applies to motor end if connections are on motor end.
EVAP. NOZZLE SIZES
WEIGHTS (To be added to Metric Unit Weights on pages 46-47)
MOTOR END
COMPR. END
COMPR. ENDMOTOR END
COOLER NOZZLE ARRANGEMENTS – MARINE WATER BOXES
R-22 & R-134a UNITS
EVaPorator
CodE
noZZLE sIZE (In.)
no. oF PassEs
1 2 3
B
8 6 4
C
10 6 6
d
12 8 6
E
12 8 6
F
12 10 8
CooLEr
CodE
shIPPInG WEIGht
InCrEasE – KG
oPEratInG WEIGht
InCrEasE – KG
1-Pass 2-Pass 3-Pass 1-Pass 2-Pass 3-Pass
B
252 134 255 358 178 343
C
368 190 304 549 269 434
d
396 200 349 598 273 495
E
473 276 453 761 420 698
F
582 398 514 864 466 764
