Dimensions – Metric - continued

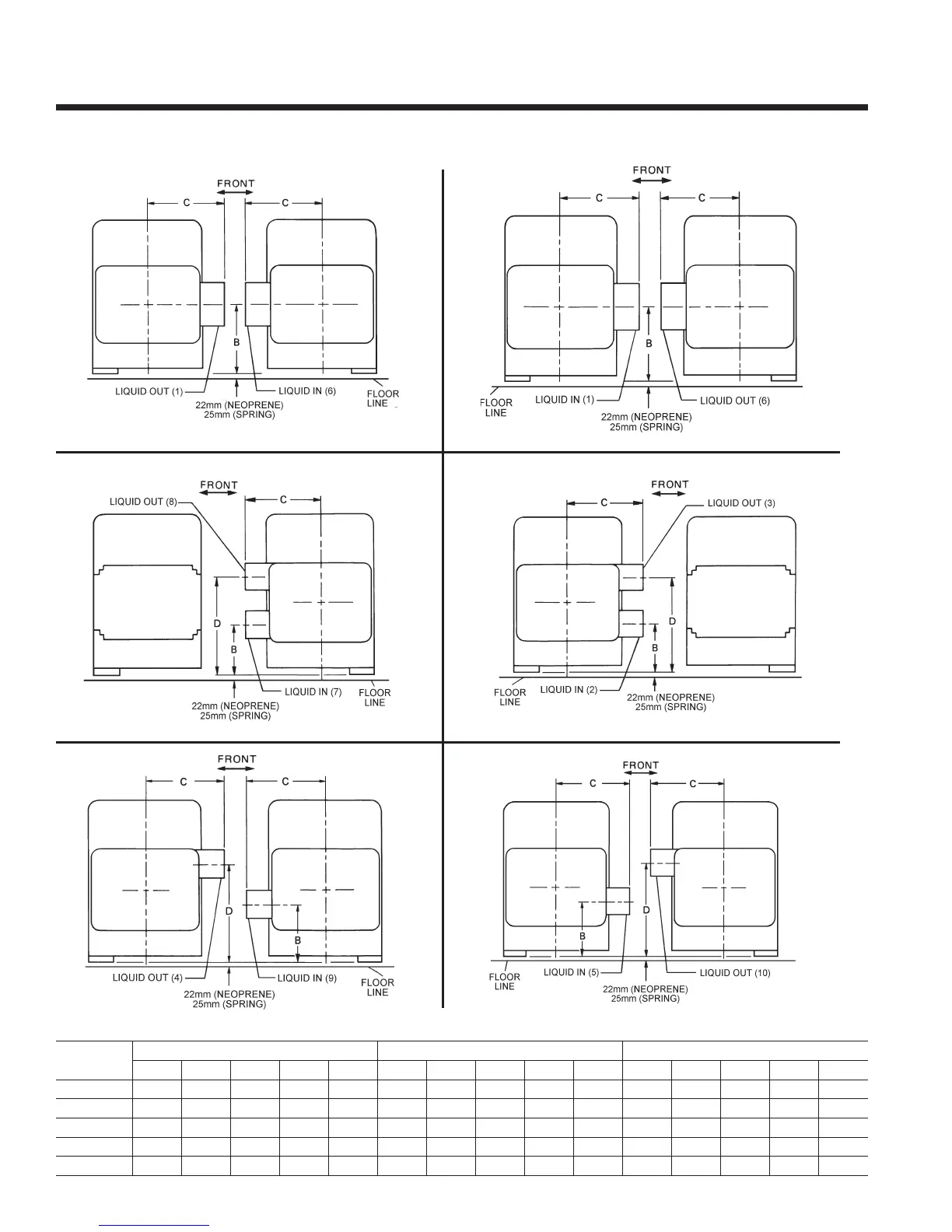

COOLER NOZZLE ARRANGEMENTS – MARINE WATER BOXES
R-22 and R-134a UNITS
1-PASS 1-PASS
2-PASS 2-PASS
3-PASS 3-PASS
DIMENSIONS (mm)
MOTOR END MOTOR END
COMPR. END COMPR. END
MOTOR END MOTOR END
COMPR. END COMPR. END
MOTOR END MOTOR END
COMPR. END COMPR. END
CooLEr
sIZE
1-Pass 2-Pass 3-Pass
a B C d E a B C d E a B C d E
B
394 387 483 — 197 343 241 483 533 171 343 279 483 495 171
C
445 425 527 — 222 343 286 527 565 171 343 337 527 581 171
d
508 489 603 — 254 394 368 603 749 197 394 349 603 641 197
E
508 492 625 — 254 406 384 625 740 203 406 352 619 644 203
F
533 568 719 — 266 483 413 718 838 241 432 387 718 743 216
