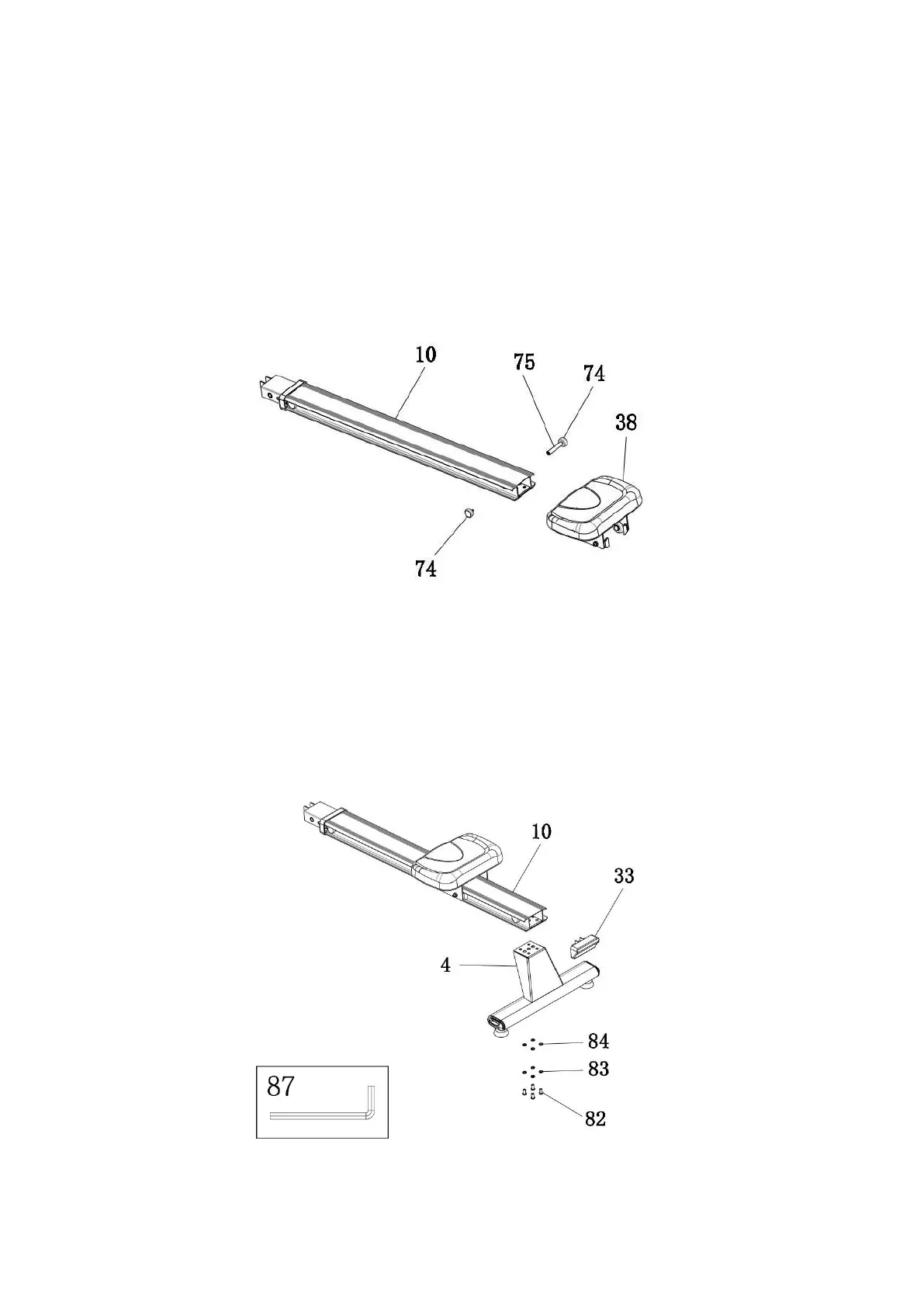

Step 3:
Slide the Seat (#38) onto the slide rail (#10).
Attach the cylindrical cushion (#74) and the buffer shaft (#75) to the slide rail
(#10), and then lock the buffer shaft with the left cylindrical cushion on the
other side.
Step 4:
Attach rear stabilizer (#4) to the slide rail (#10) with four Hexagon socket round
head bolt M8*16 (#82), four Spring washer φ8 (#83) and four Flat washer φ18
(#84), then tighten them with an Allen wrench (#87). Install the Aluminum
alloy rear pipe plug(#33).
