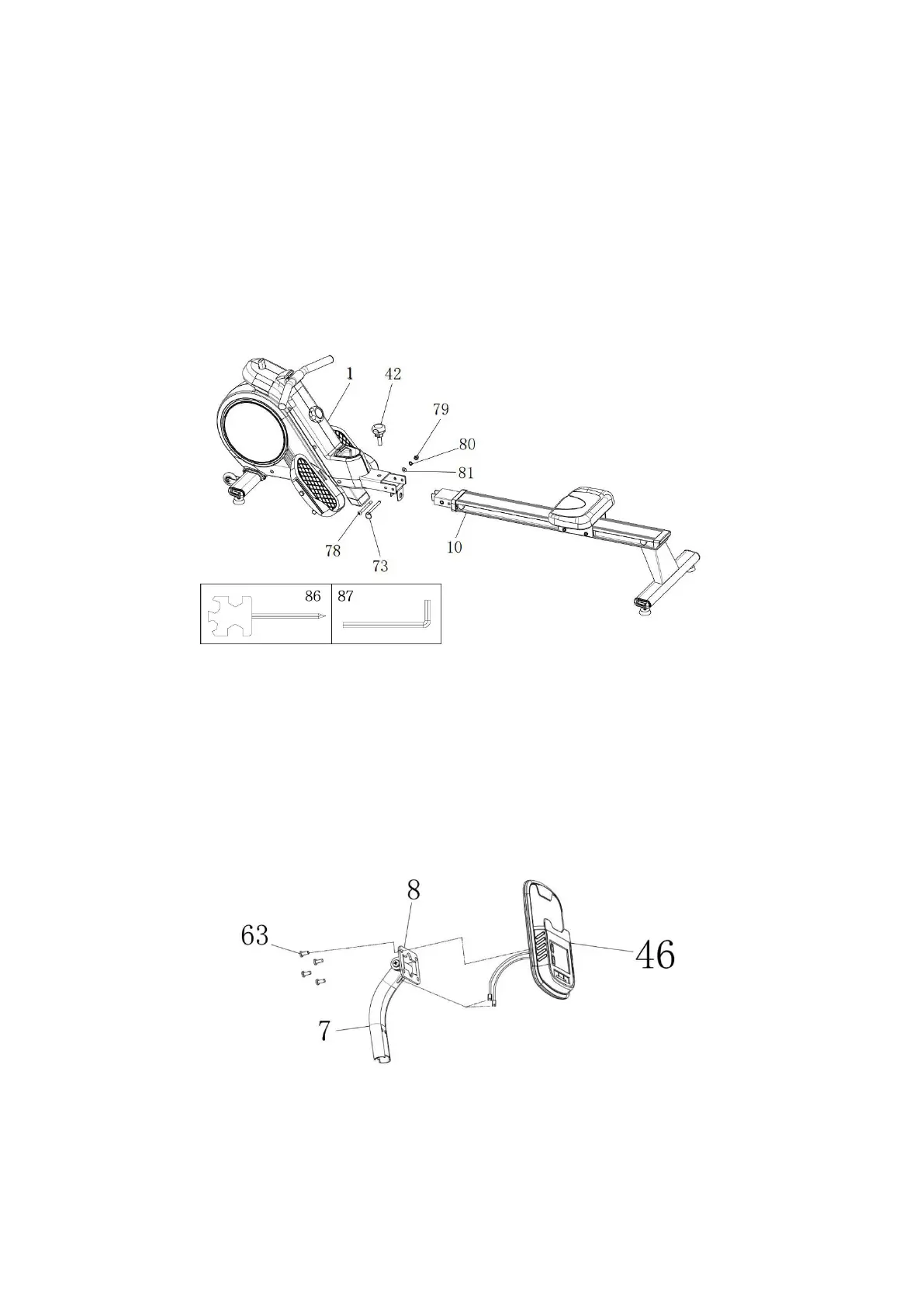

Step 5:
Disassemble Knob M16 (#42). Attach the slide rail (#10) to the main frame (#1),
then install the Knob M16, and tighten it.
Then use a Hexagon socket half round head screw M10*105 (#78), Flat washer
φ3(#81), a spring washer φ10 (#80), a Cover type union nut M10 (#79) and a
single head bolt (#73).
Step 6:
Unscrew the Umbrella head cross screw M5*12 (63) from the Monitor(46).
Thread the Sensor wire which attached to the monitor into the Ipad holder
tube (7). Then attach the monitor to the monitor holder(#8) with four Umbrella
head cross screw M5*12(#63).
