3.1.4.2 Laser tube installation

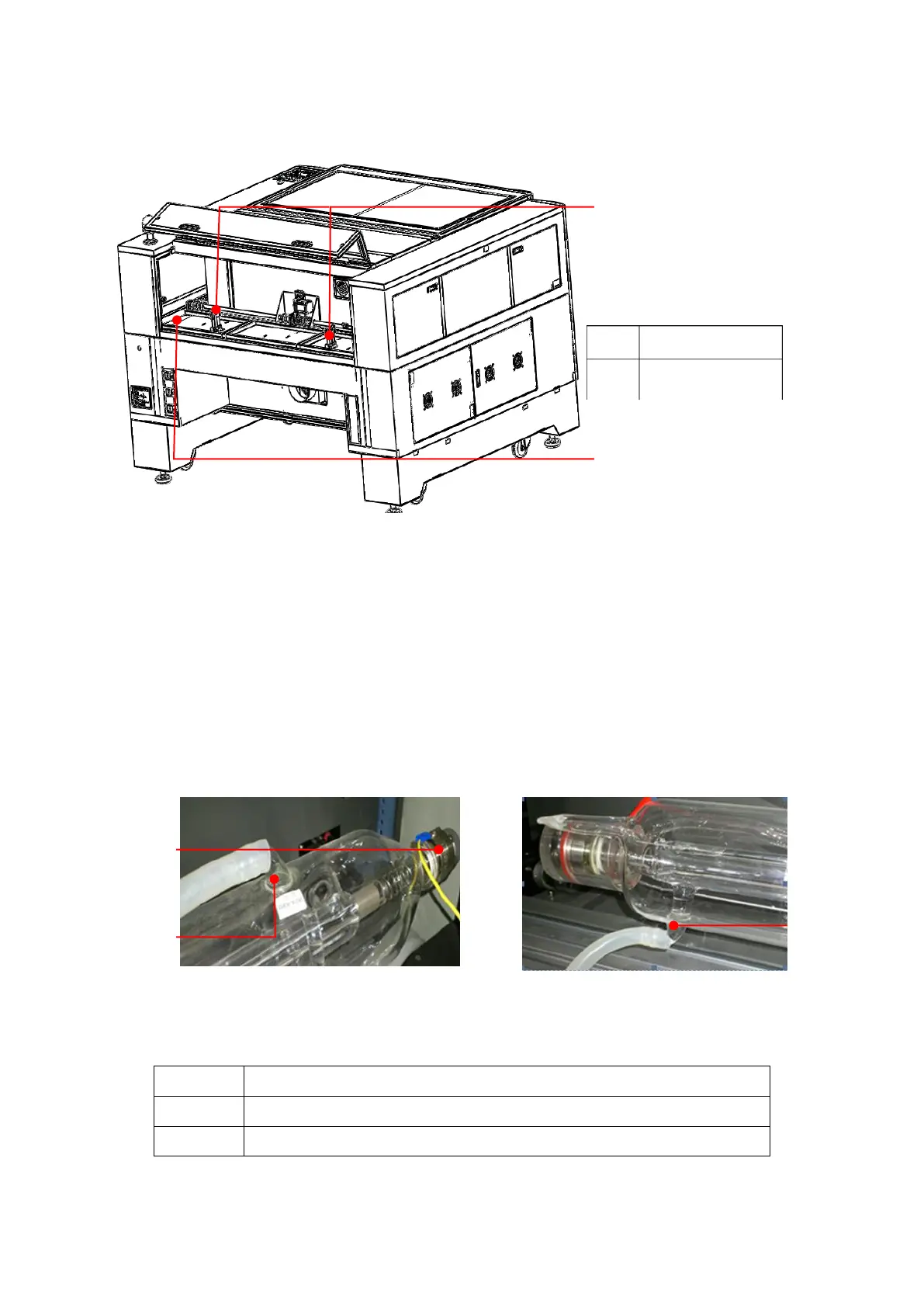

Figure 3-7 Laser Tube Installation Position Diagram
Open the back cover of the machine, and place the laser tube carefully on the bracket. During installation,
keep the laser outlet(side or terminal) toward the reflector and keep the water inlet downwards.
Adjust the distance of the laser tube from front to back (about 50mm from the laser outlet to the first
reflector), then buckle the upper support foot of the laser tube bracket and tighten the screws to secure
the laser tube
When the laser tube is fixed, connect the water pipe to the laser tube according to the identification, as
shown below:
Figure 3-8 Laser Tube Installation Method
Laser negative
junction box
