Environment of the equipment
dry, and free of interference like dust, pollution, vibration, high power and strong
magnetic field
1.4 Equipment compositions
Due to different models and improvement of products, the industrial design and details of some types of
machine may be different. The compositions are subject to the actual product. The following takes general
CMA1309-B-A as an example for the compositions of the equipment.
1.4.1 Compositions of the machine
 The machine uses modular design, and consists of the chassis , transmission system, cover and
working platform.
 The front view of the machine is shown in the figure below:

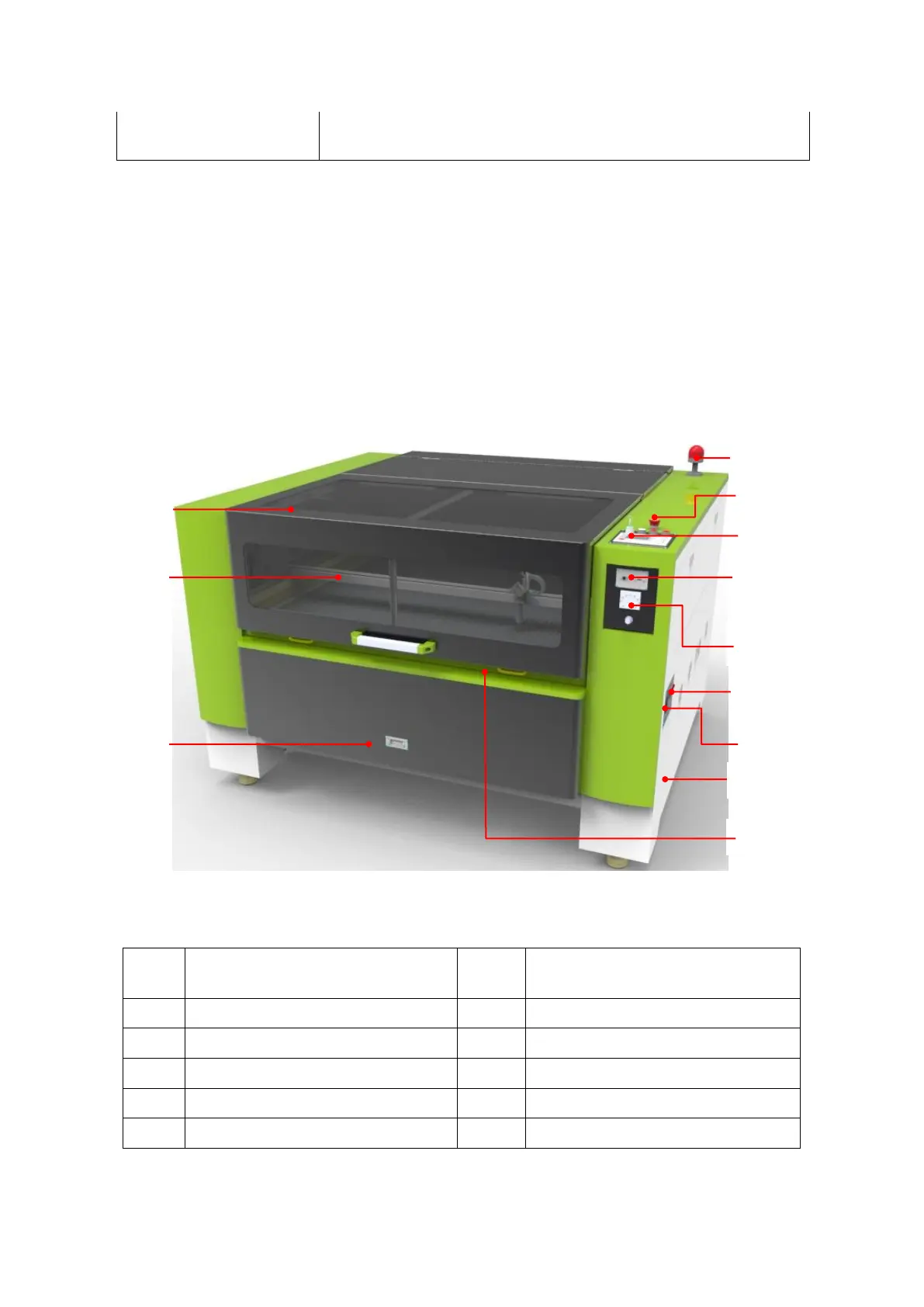

Figure 1-1: Front view of the machine
①
Monochromatic warning lamp
(optional)
⑦
Main power switch
②
Emergency stop (optional)
⑧
Chassis
③
Control panel
⑨
Working platform
④
USB and Ethernet interfaces
⑩
Cover
⑤
Ammeter
⑪
Transmission system
⑥
Socket switch
⑫
Drawer
 Back view of the machine is as shown in the figure below:
