4.1.3 Electric maintenance

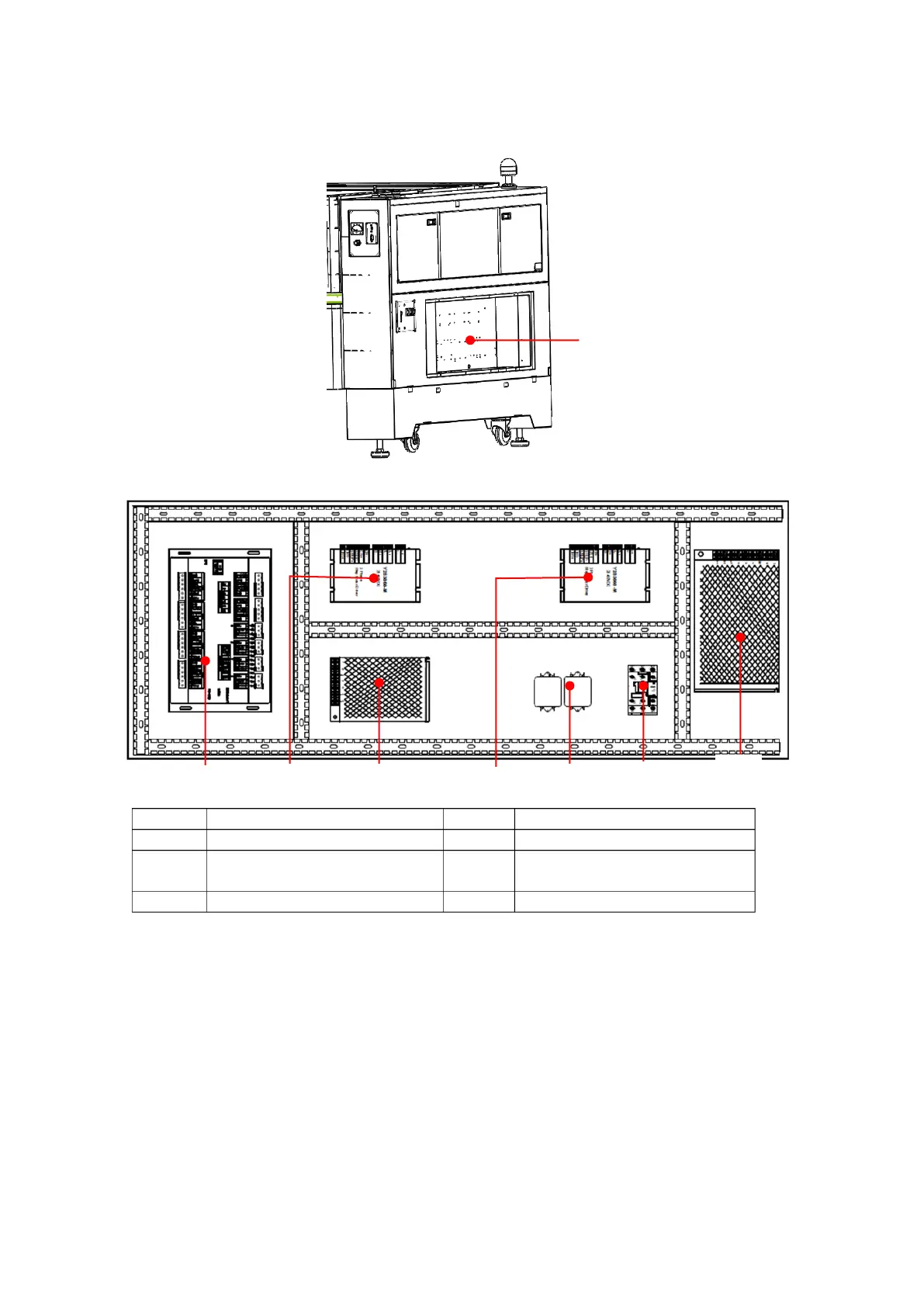

Figure 4-3 Electrical Cabinet Installation Position Diagram
Figure 4-4 Electrical Cabinet Layout Diagram
Mainly check the stability of routine supply voltage, and keep the electrical cabinet of the machine tool clean
and well-ventilated. Check the integrity and safety of the lines, check if the emergency stop button functions
normally, test the function of the limit switch and home switch of each axis, and check if the sensor and the drive
work normally. Check if the state of button switches, indicators and warning lights is normal, diagnose and
eliminate the failures of the servo system.
24V switching power supply
36V or 48V switching power
supply
Electrical cabinet installation
location
