6
Y-axis timing belt (one on each side)
X-axis sensor (reset or limit signal)
Y direction drive shaft (one on each
side)
1.4.3 Working platform
The working platform of CMA series laser equipment mainly consists of blade holder working platform, cellular
net working platform and fine blade holder working platform. The blade holder working platform are mainly used
to hold the organic glass, thick sheet metal and other hard materials, cellular net working platform are mainly
used to hold fabric, leather and other flexible materials, and fine blade holder working platform are mainly used
to hold thick soft cloth and other materials.

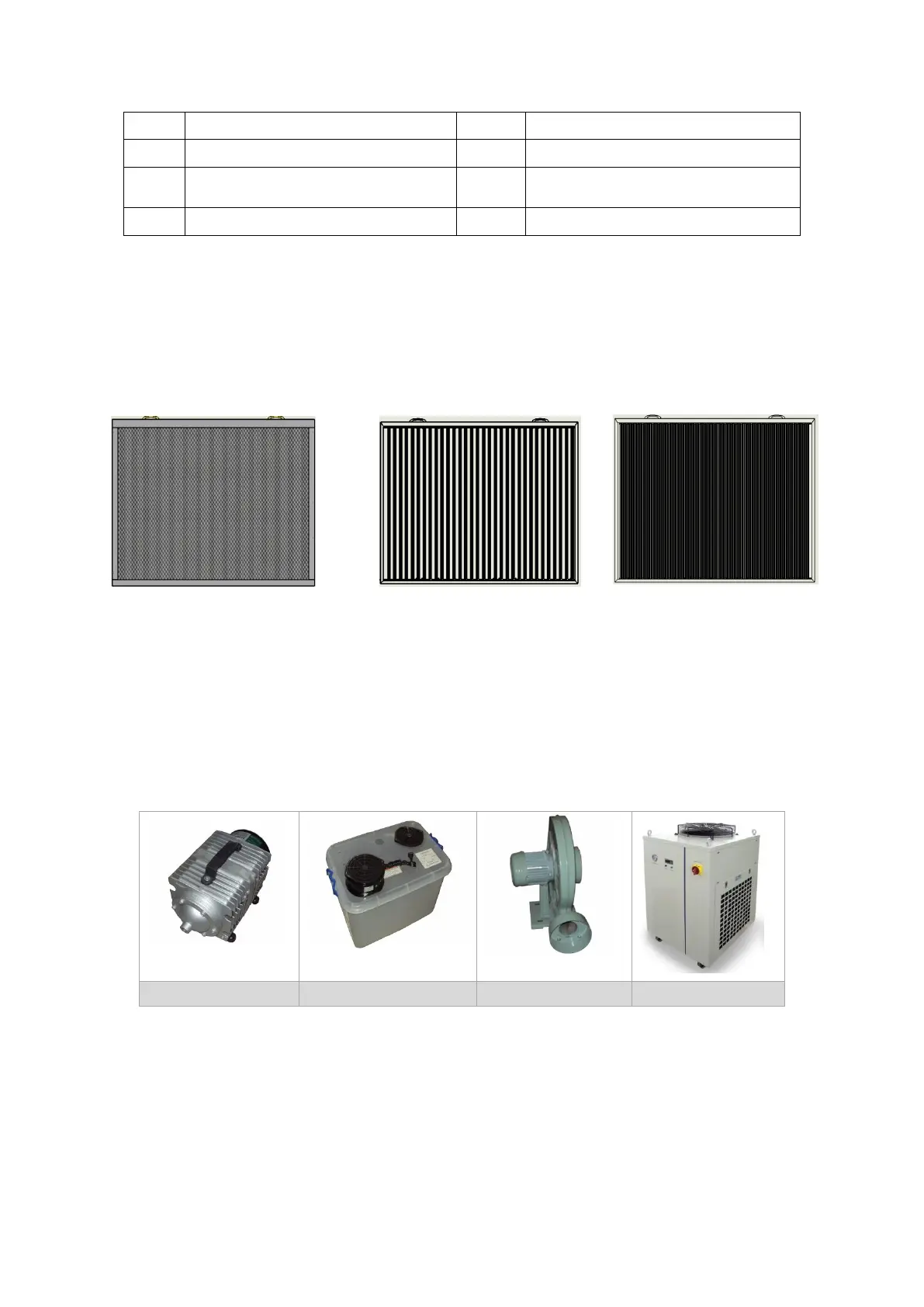

Figure 1-4: Working platform
1.5 Auxiliary parts
To ensure normal operation, the laser equipment needs also some auxiliary parts like blower, air pump and
water tank. Different types of machine are with different auxiliary parts, and those are subject to the actual
equipment.
Figure 1-5: Auxiliary parts
1.6 Equipment parameters
Equipment parameters quite differ from each other due to different types and configurations. The parameters
are subject to the ex-factory nameplate attached to the equipment. The nameplate is generally stuck to the back
or left side of the machine. The figure below is the nameplate of CMA1309-B-A:
Cellular net working platform
Blade holder working
platform
Fine blade holder working
