25

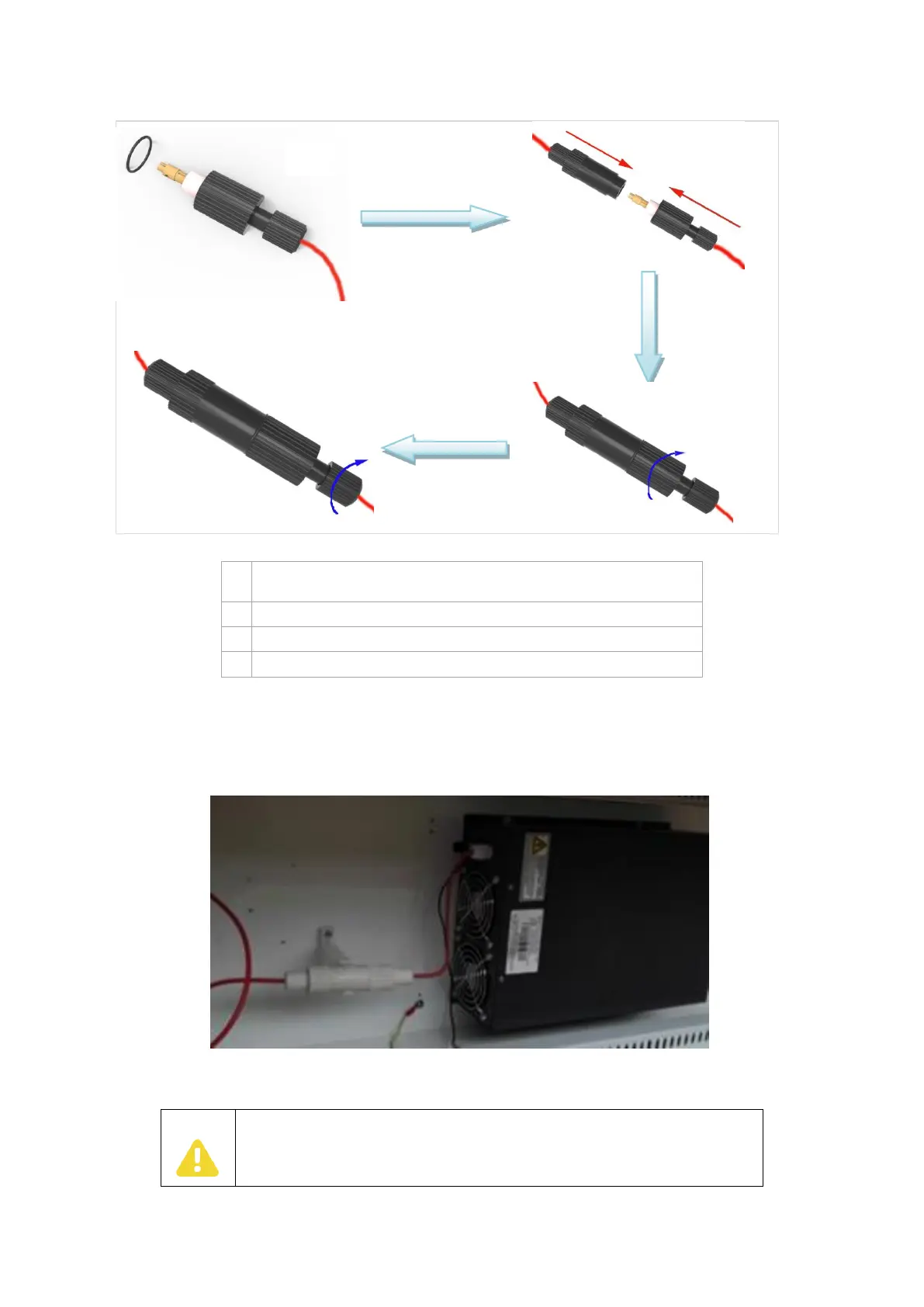

Figure 3-11 High voltage connector
Take a rubber seal and cover on the high-voltage connector as
shown in the figure
Install the high-voltage connector
Tighten the high-voltage connector in the shown direction
Tighten the high-voltage connector 3 in the shown direction
And then securely connect the negative pole line to the negative pole end of the laser power supply and
fix positive pole high voltage connector on to the insulation bracket as shown in the figure below:
Figure 3-12 Positive High Voltage Terminal Fixing Diagram
Red positive pole line and yellow-and-green negative pole line are a pair of high voltage
line of the laser tube, and they with extremely high voltage (20,000V) and super strong
static radiation. Reliable line insulation and isolation, as well as secure earthing of the
