28
3.1.4.6 Blower installation

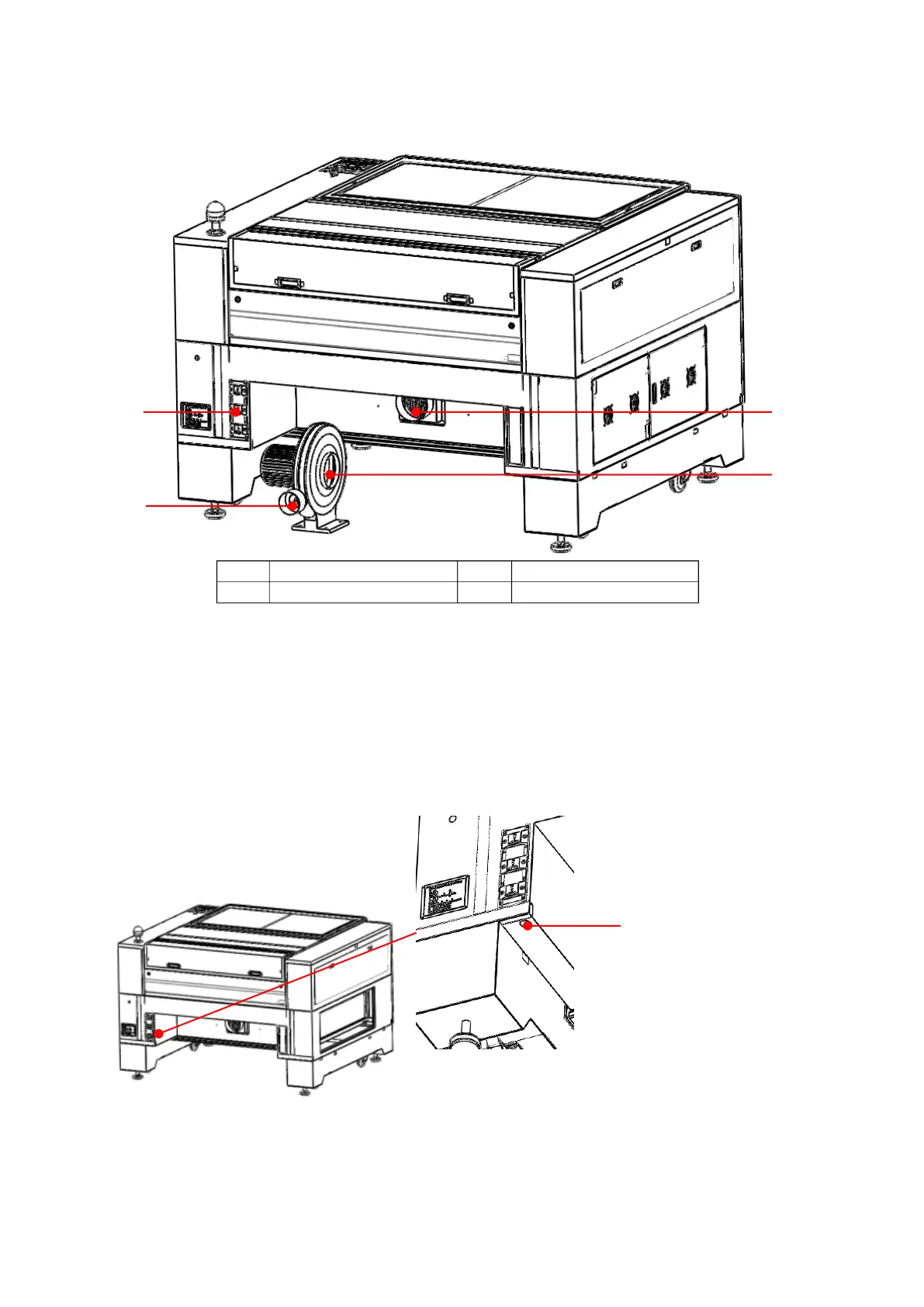

Figure 3-15 Fan Interface Diagram
First connect the fan suction inlet to the exhaust port of the cutting machine with a duct, and fix with a locking
clip, then connect to the fan outlet with another duct and extend to outdoors, and connect the power cord of the
fan to the socket with circuit breaker or overcurrent protection device in the rear side of the chassis. The input
voltage is 220-240V AC/50/60Hz.
3.1.4.7 Equipment earthing
Figure 3-16 Equipment Grounding Diagram
Position of earth
wire on the machine
