Zanussi ZITN643K User Manual

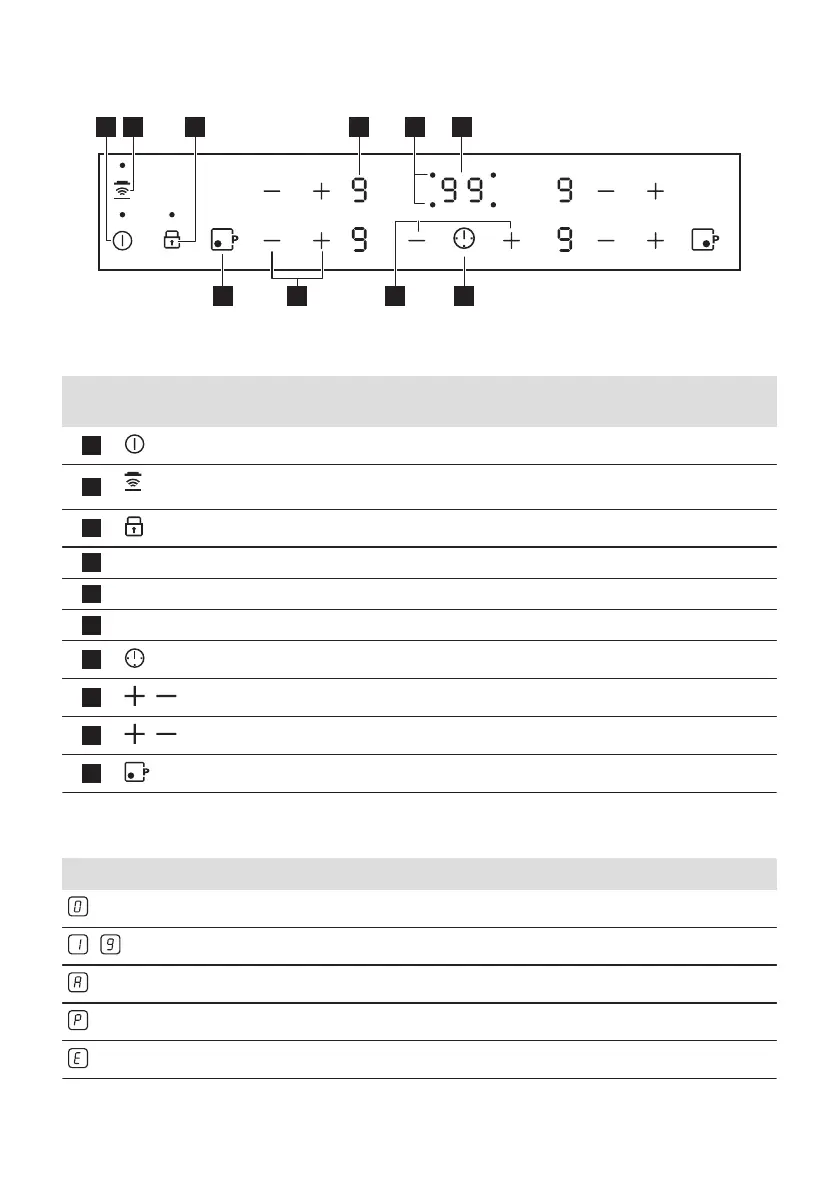

4.2 Control panel layout
21 3 4 5 6
7
8
10 9
Use the sensor fields to operate the appliance. The displays, indicators and sounds tell which
functions operate.
Sensor
field
Function Comment
1
ON / OFF To activate and deactivate the hob.
2
Hob²Hood To activate and deactivate the manual mode of the
function.
3
Lock / Child Safety Device To lock / unlock the control panel.
4
- Heat setting display To show the heat setting.
5
- Timer indicators of cooking zones To show for which zone you set the time.
6
- Timer display To show the time in minutes.
7
- To select the cooking zone.
8
/
- To increase or decrease the time.
9
/
- To set a heat setting.
10
PowerBoost To activate the function.
4.3 Heat setting displays
Display Description
The cooking zone is deactivated.
-
The cooking zone operates.
Automatic Heat Up operates.
PowerBoost operates.
+ digit
There is a malfunction.
8 ENGLISH

Zanussi ZITN643K Specifications

General

Boost function	Yes
Large cooking zone	3700 W
Number of boosters	2
Simmer cooking zone	2500 W
Regular cooking zone	1800 W
Number of power levels	15
Timer type	Digital
Control type	Touch
Timer duration	99 min
Built-in display	-
Control position	Top right
Hob type	Zone induction hob
Product color	Black
Hob width size	59 cm
Top surface type	Ceramic
Appliance placement	Built-in
Cooking zone 2 type	Large
Cooking zone 3 type	Regular
Cooking zone 4 type	Simmer
Cooking zone 2 boost	3400 W
Cooking zone 2 power	2300 W
Cooking zone 4 power	1400 W
Cooking zone 1 position	Left rear
Cooking zone 2 position	Left front
Cooking zone 3 position	Right rear
Cooking zone 4 position	Right front
Number of cooking zones	4 zone(s)
Simmer cooking zone shape	Round
Cooking zone 3 power source	Electric
Large cooking zone diameter	210 mm
Number of gas cooking zones	0 zone(s)
Simmer cooking zone diameter	145 mm
Regular cooking zone diameter	180 mm
Connected load (gas)	- W

Weight and Dimensions

Depth	520 mm
Width	590 mm
Height	- mm
Installation compartment depth	490 mm
Installation compartment width	560 mm
Installation compartment height	44 mm
