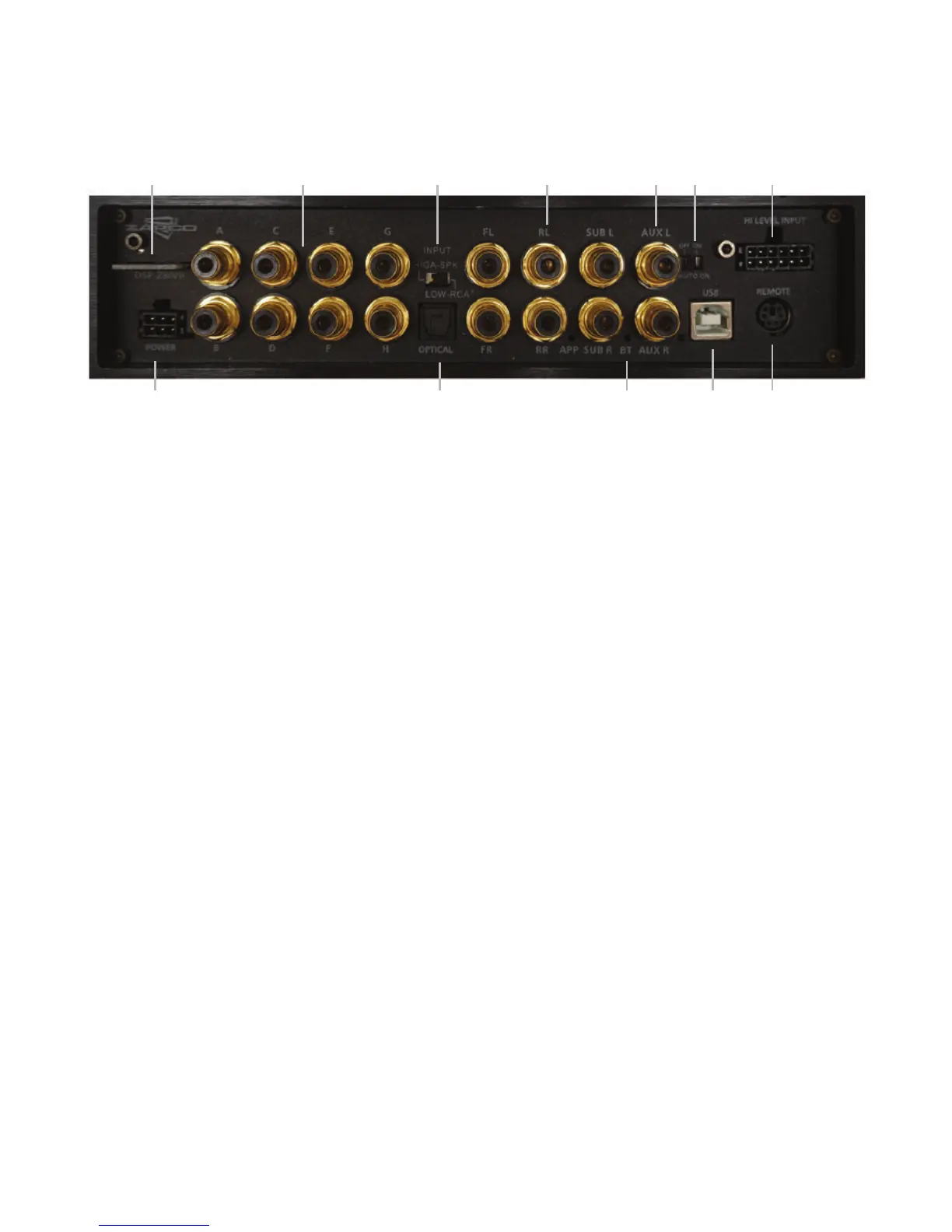

DSP-Z8 IV II
1.
8 channels of RCA outputs
2.
Switch for high level/low level inputs
3.
6 channels of RCA inputs for the MAIN source
4.
2 channels of RCA inputs for an Auxiliary source
5.
On/Off switch for the auto-on function
6.
High level OEM input connector
7.
Dash remote port
8.
USB connector for PC control
9.
Optical port for digital input
10.
Main power connector for +12V Power (yellow), Ground (black), Turn-on from head unit
(red), and +12v for amplifier turn-on (blue)
11.
Bluetooth antenna for Digital streaming and control
12.
BT indicator-blinks while looking for a Bluetooth device, then goes solid when it is paired
