Page 16
3.3.6 Connector "F" description
The "F" connector is connected by Zapi.
F1 KEY OUT This pin is connected to the pin1 of the A connector; is a key signal.
F2 BACKING This pin is connected to the pin2 of the A connector; is a backing
signal.

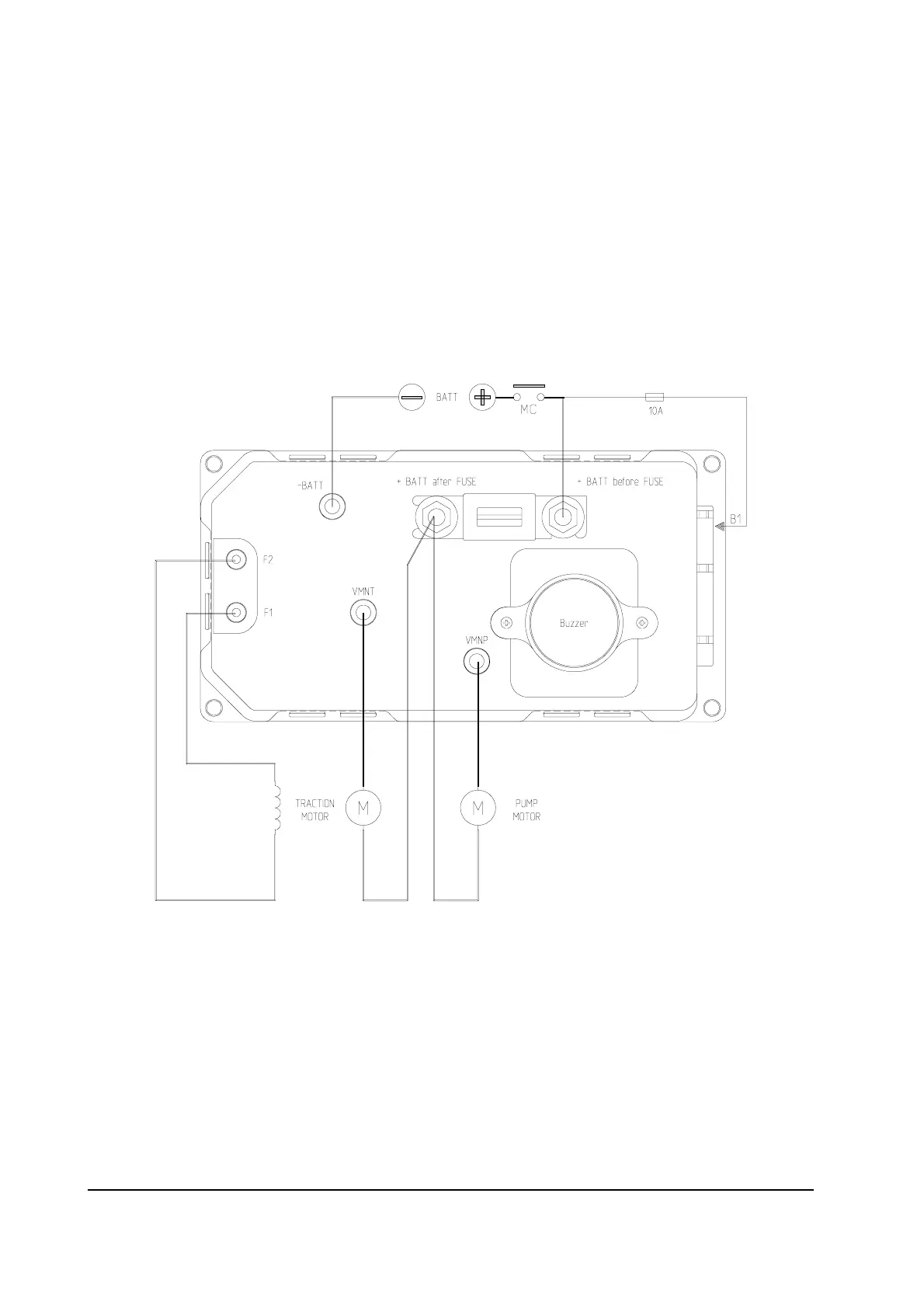

3.4 COMBI SEM-1 POWER CONNECTION
+BATT before FUSE Positive of the battery after the main contactor
+BATT after FUSE Positive of the battery after the main cont. and after the fuse.
-BATT Negative of the battery.
F1, F2 Field connections for traction motor.
VMNT Traction motor current sensor input.
VMNP Pump motor input (without the current sensor).
