Zebra 2746e Service Manual

14 980428-101 Rev. 1 Prelim.
Anchors
Installation

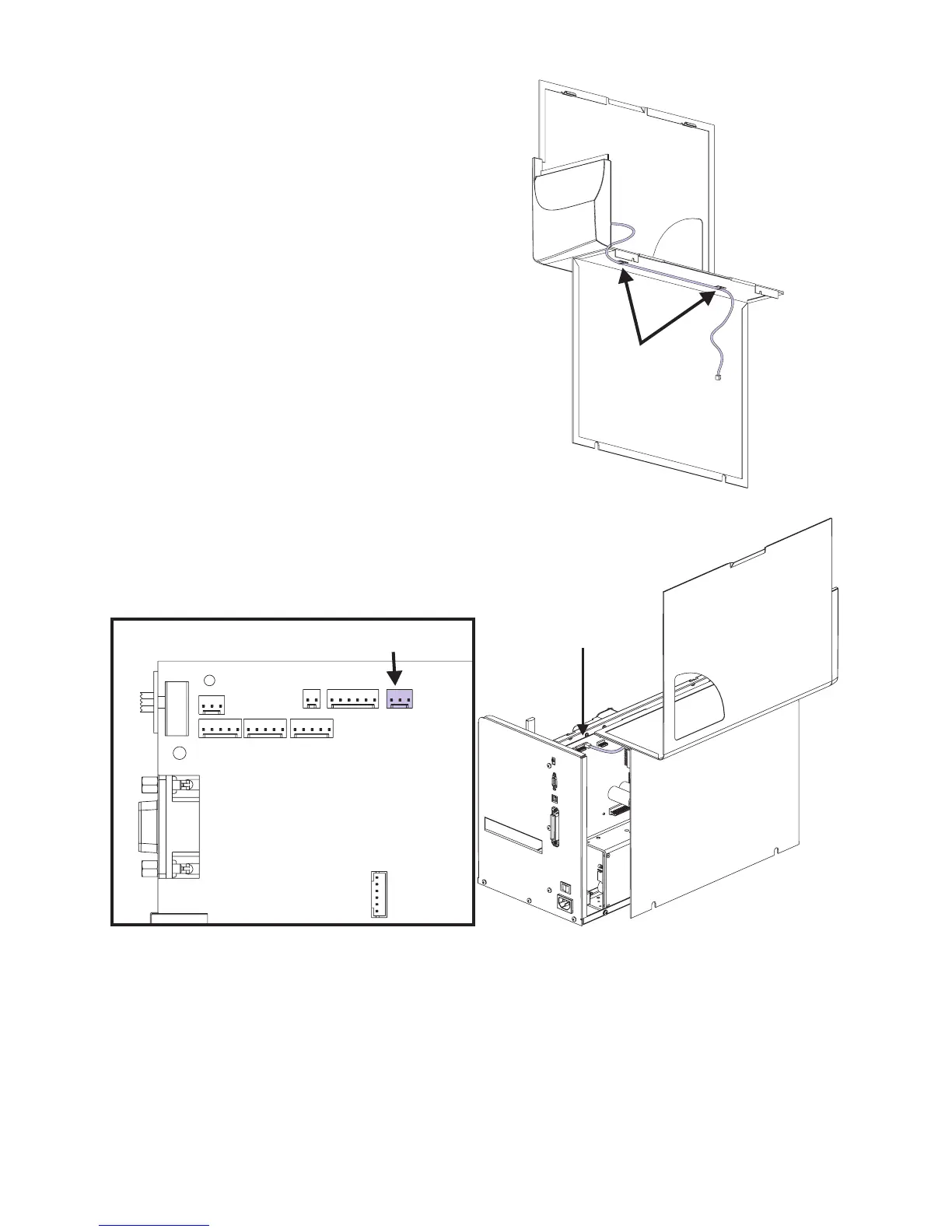

1. Ensure that the label taken sensor’s cable is
secured in the two cable anchors under the
left side cover.
Place the cover into position and reverse the
cover removal process.
JP26
Attach Cable to
Main PCBA
2. Attach label taken sensor cable to the main
PCBA at JP26.
