Securing the Wire Harness
The printer was designed to meet or exceed all regulatory agency (CE, FCC, UL, CSA, etc.) safety
and electro-magnetic requirements. The positioning and anchoring of the cables and connectors are
critical to meet these requirements.

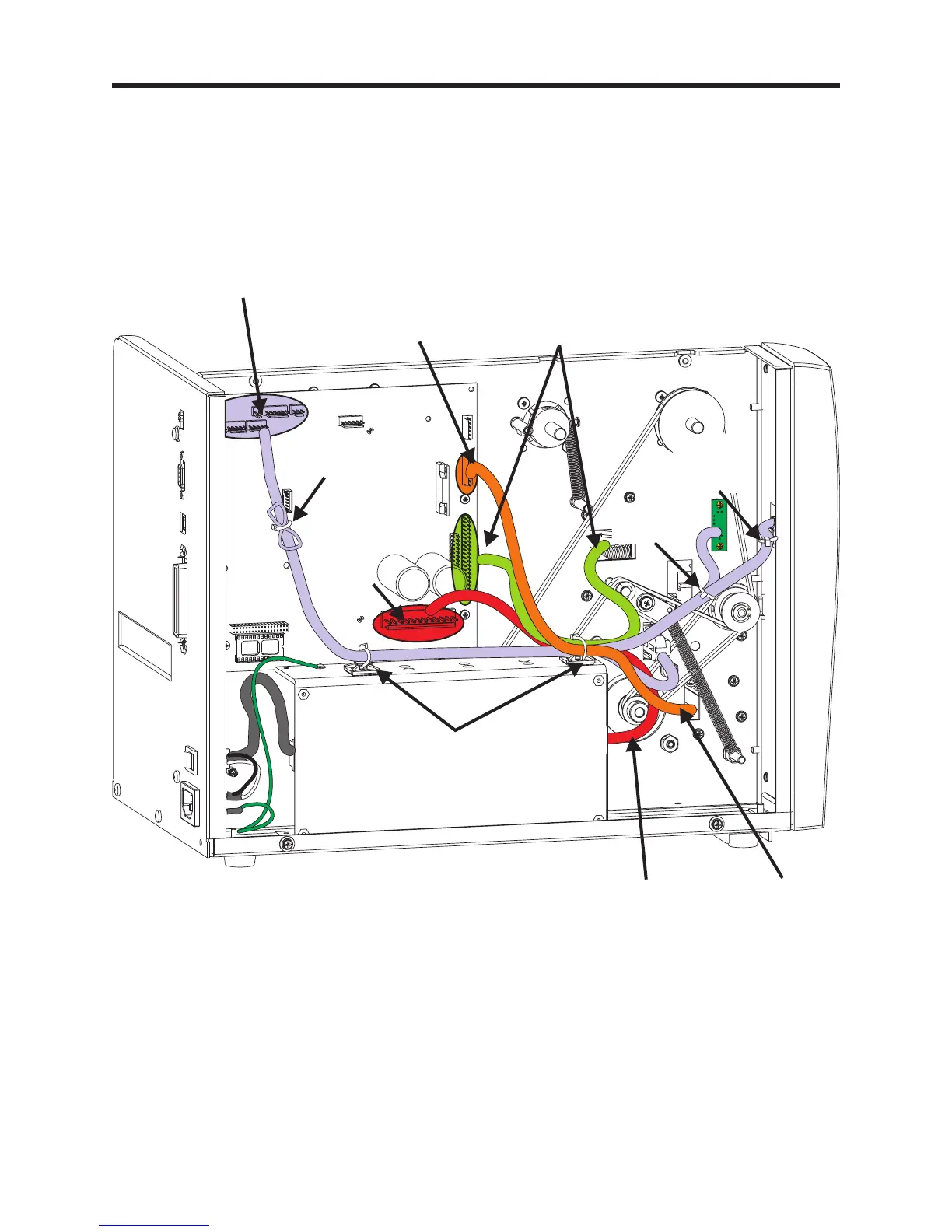

The following diagrams the physical location of the printer's primary cable groups and cable tie
points.
Verify all cables are connected prior to proceeding.
Verify the Main PCBA is pressed into the center panel's circuit board standoffs (and
secured with its mounting hardware).
24 980428-109 Rev. 1 Prelim.
Controls and
Sensors
Motor
DC Power
Printhead
Cable Tie
Cable Ties
and
Anchors
Cable Tie
and
Anchor
Cable Tie
Motor
DC
Power
To Next Page
