13
Loading Roll Media
9/30/2014 GT800™ Thermal Transfer Printer User Guide P1032729-003Rev. A
Preparing for Label Media

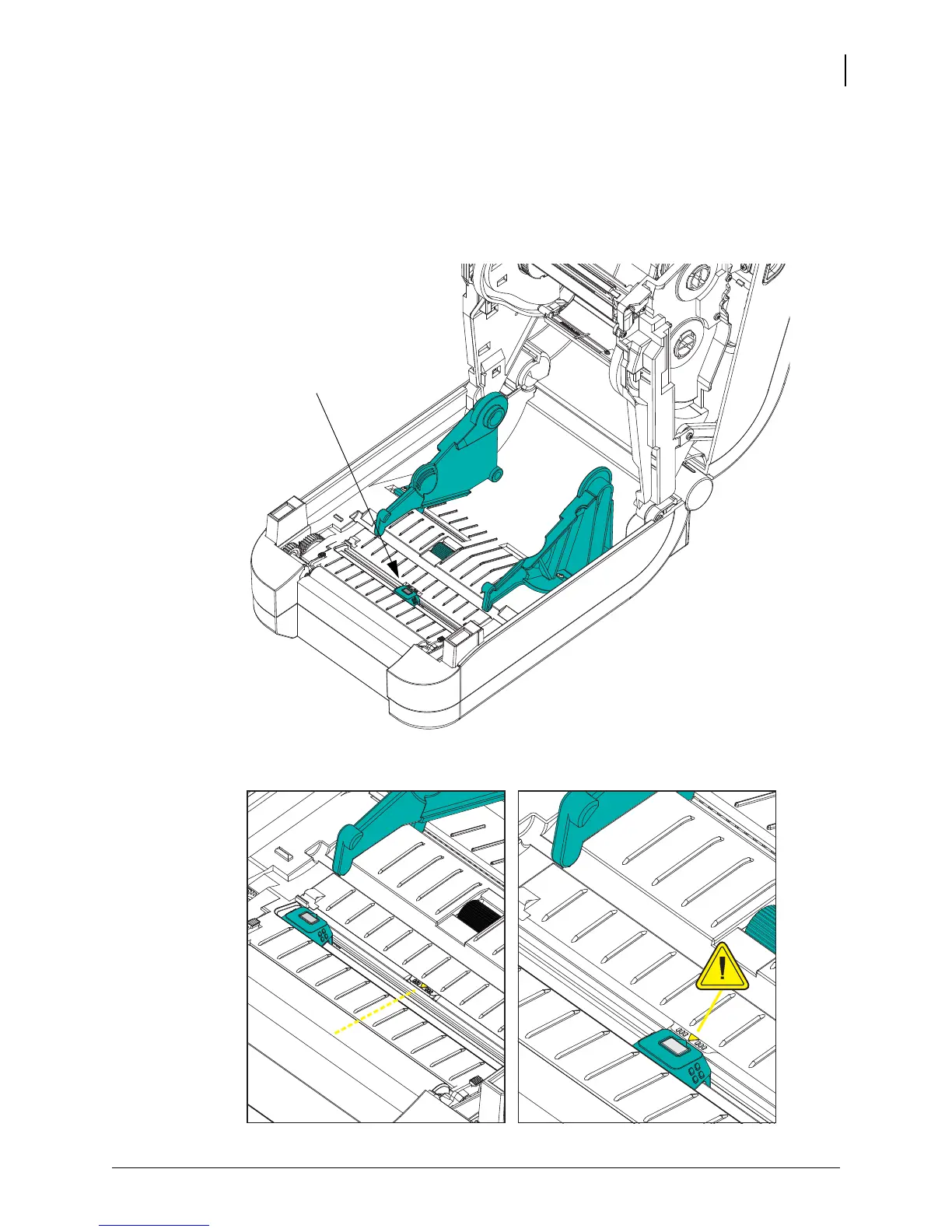

Verify that the movable black mark sensor is aligned in the center default position. This is the
standard operating position for media sensing. When the sensor is moved away from the
default label web (gap) sensing area, the printer will only detect black mark and die-cut
notched media when aligned properly. See Using the Movable Black Mark Sensor on page 44
for using black mark or non-typical media.
Movable
Black Mark Sensor
An Off Center Alignment
Black Mark Sensing Only
Default - Web (Gap) Sensing
Standard Operating Position
To Next Page
