Using the Movable Black Mark Sensor
46
P1032729-003 Rev. A GT800™ Thermal Transfer Printer User Guide 9/30/2014

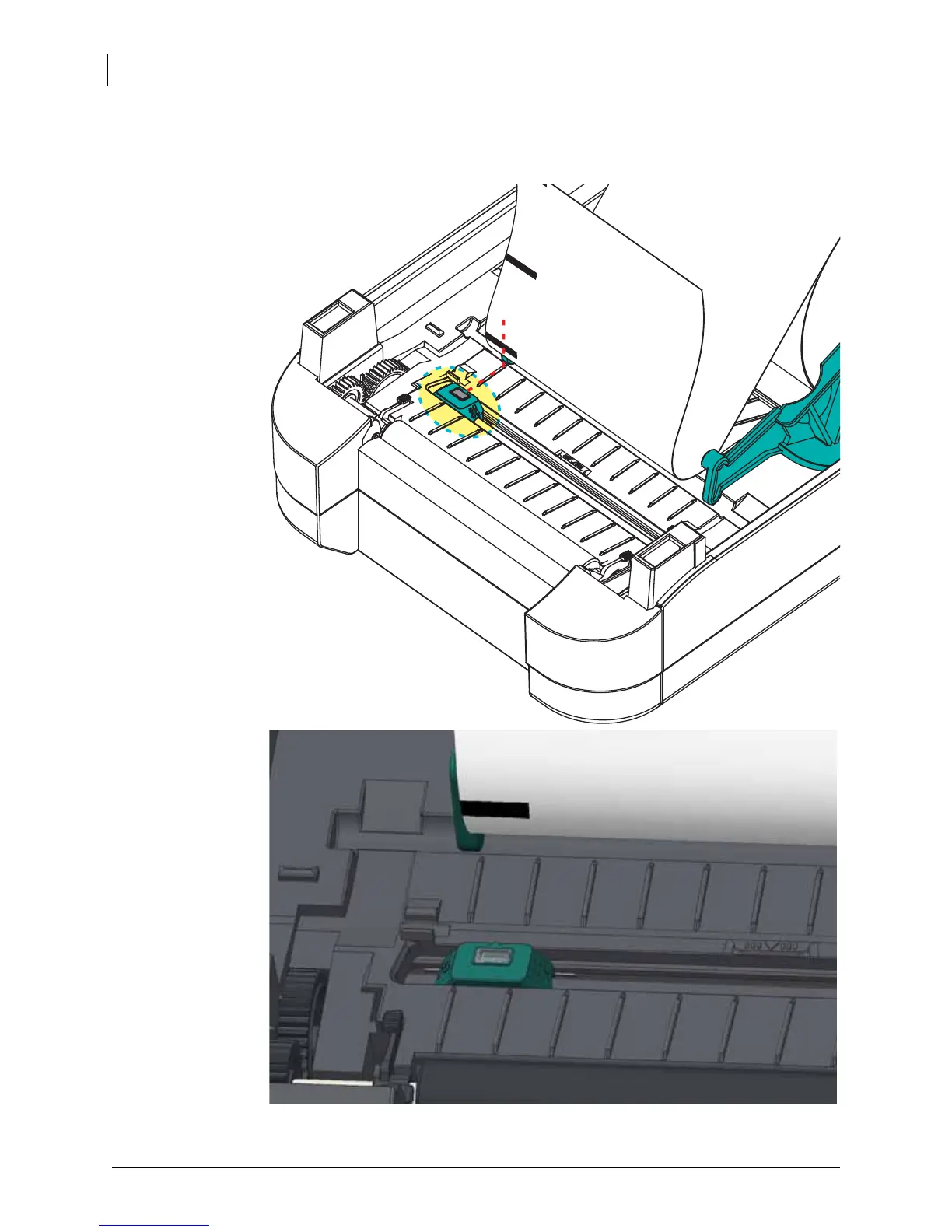

2. Slide the movable sensor from the center default position to align with the black marks.
The arrow on the movable sensor should line up with the center of the black mark. This is
true for marks or notches located on either side of the media (left side shown).
