Maintenance
Replacing the Printhead
76
P1032729-003 Rev. A GT800™ Thermal Transfer Printer User Guide 9/30/2014
Printhead Removal
1. Open the printer. Remove any transfer ribbon from the printer.

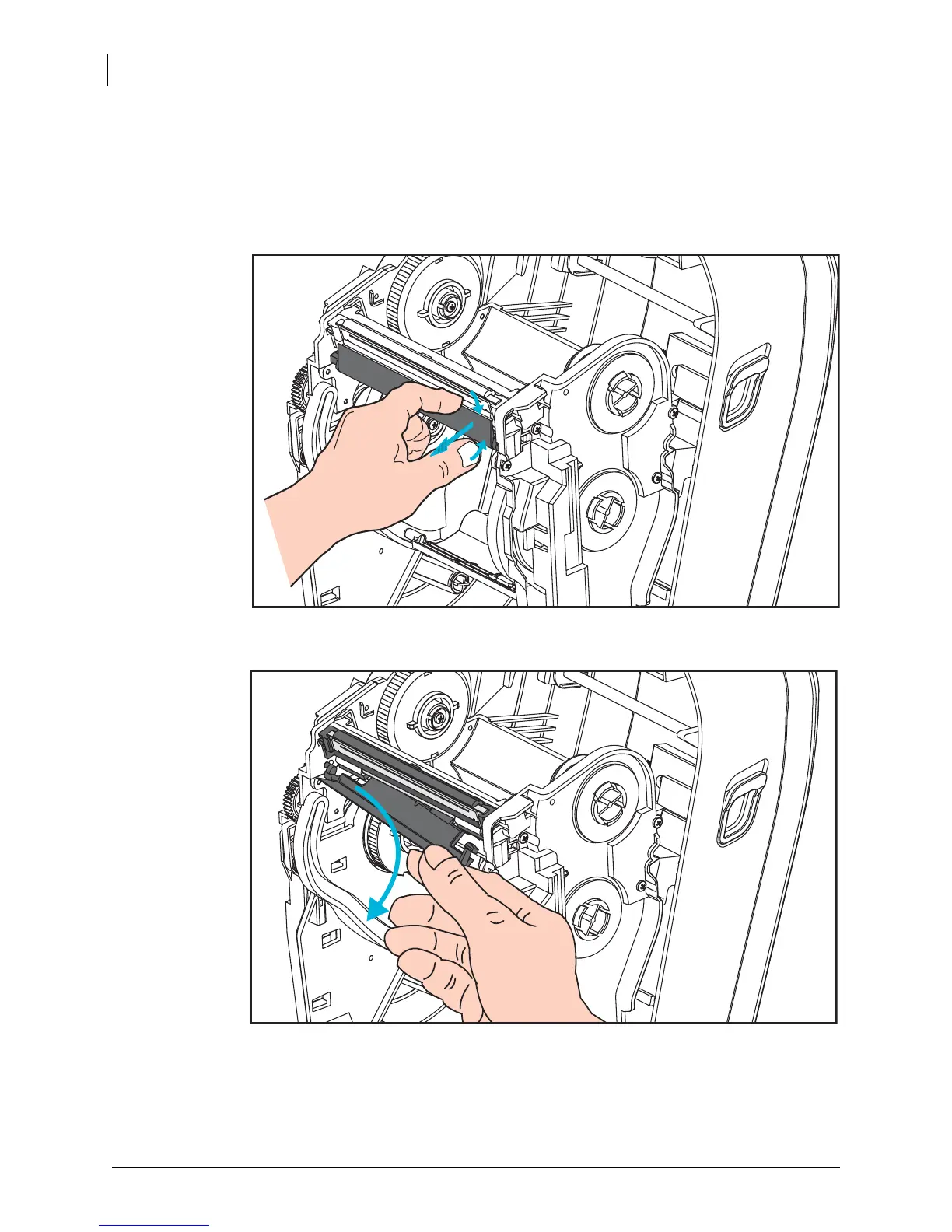

2. Grasp the right side of the printhead’s cover bracket and gently pull the bracket way from
the printhead. There is a gap in the cover on the side for the thumb to grab. You can use the
other finger to supply additional gentle pressure to pry the cover from the ribbon frame.
.
