Maintenance
Replacing the Printhead
9/30/2014 GT800™ Thermal Transfer Printer User Guide P1032729-003Rev. A

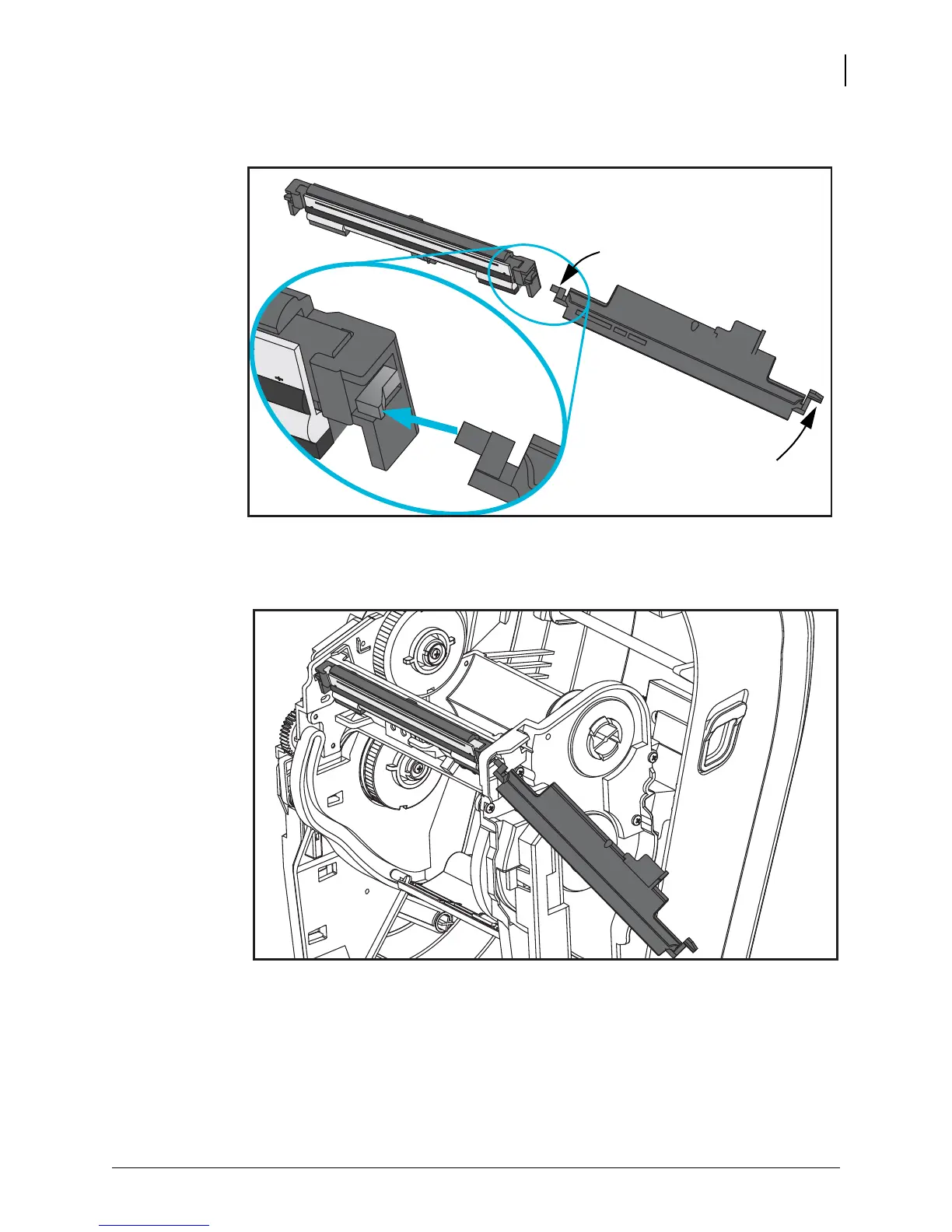

3. Use the printhead cover’s the left side’s short guide arm to release the printhead from the
ribbon frame.
.
Push the short arm’s pin into the right side of the ribbon frame and press the
printhead’s release tab.
Short Printhead
Cover’s Guide Arm
Long Printhead
Cover’s Guide Arm
Printhead
Assembly’s
Release Tab
