79
Maintenance
Replacing the Printhead
9/30/2014 GT800™ Thermal Transfer Printer User Guide P1032729-003Rev. A

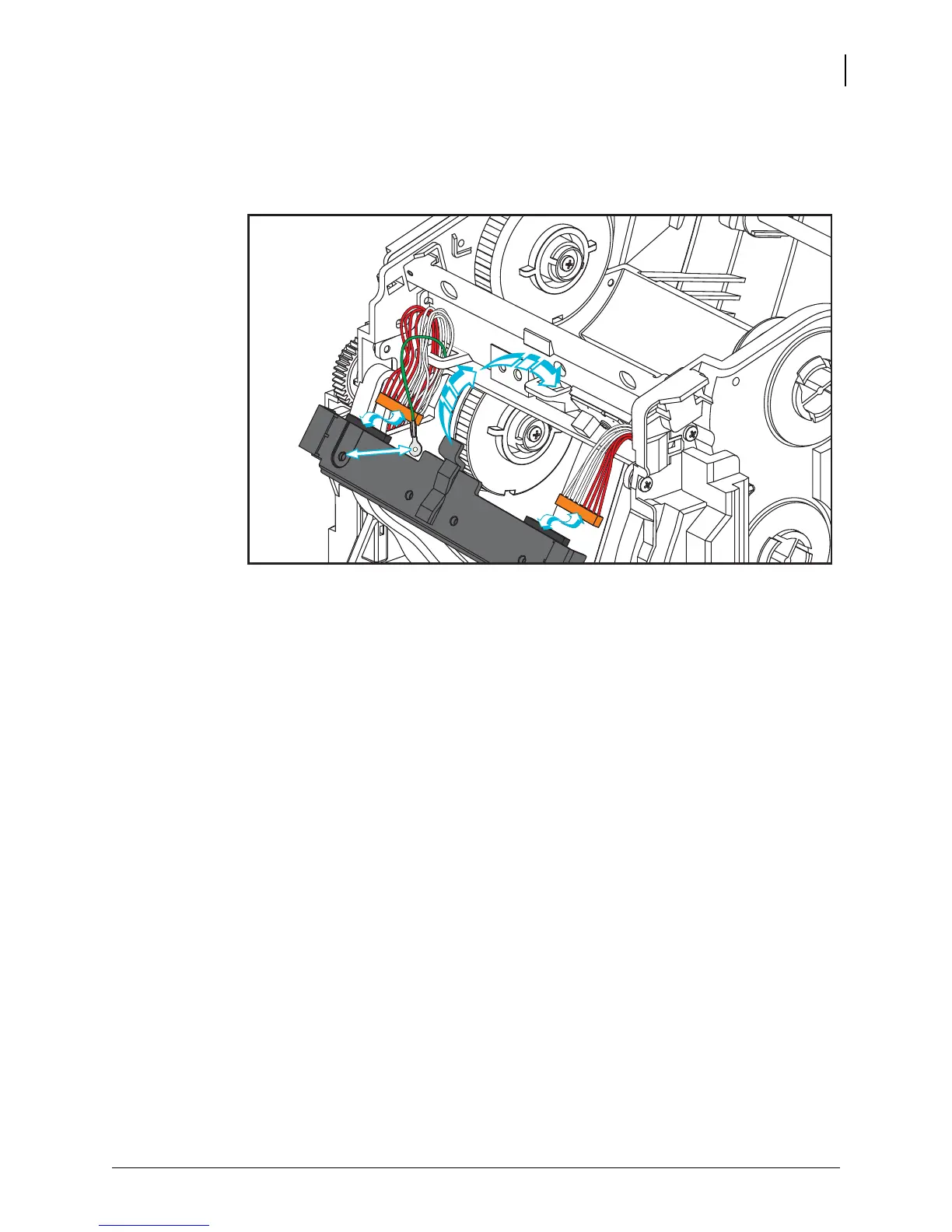

Printhead Replacement
The printhead is replaced by essentially reversing removal procedure steps.
1. Connect the two printhead cables to the printhead.
2. Connect the ground wire to the printhead assembly.
3. Insert printhead assembly’s center pivot tab into the slot on the ribbon frame.
