Zebra GX420d User Manual

Introduction
What’s in the Box?
4
980611-001 Rev. B GX420d User Guide 6/4/08
Your Printer

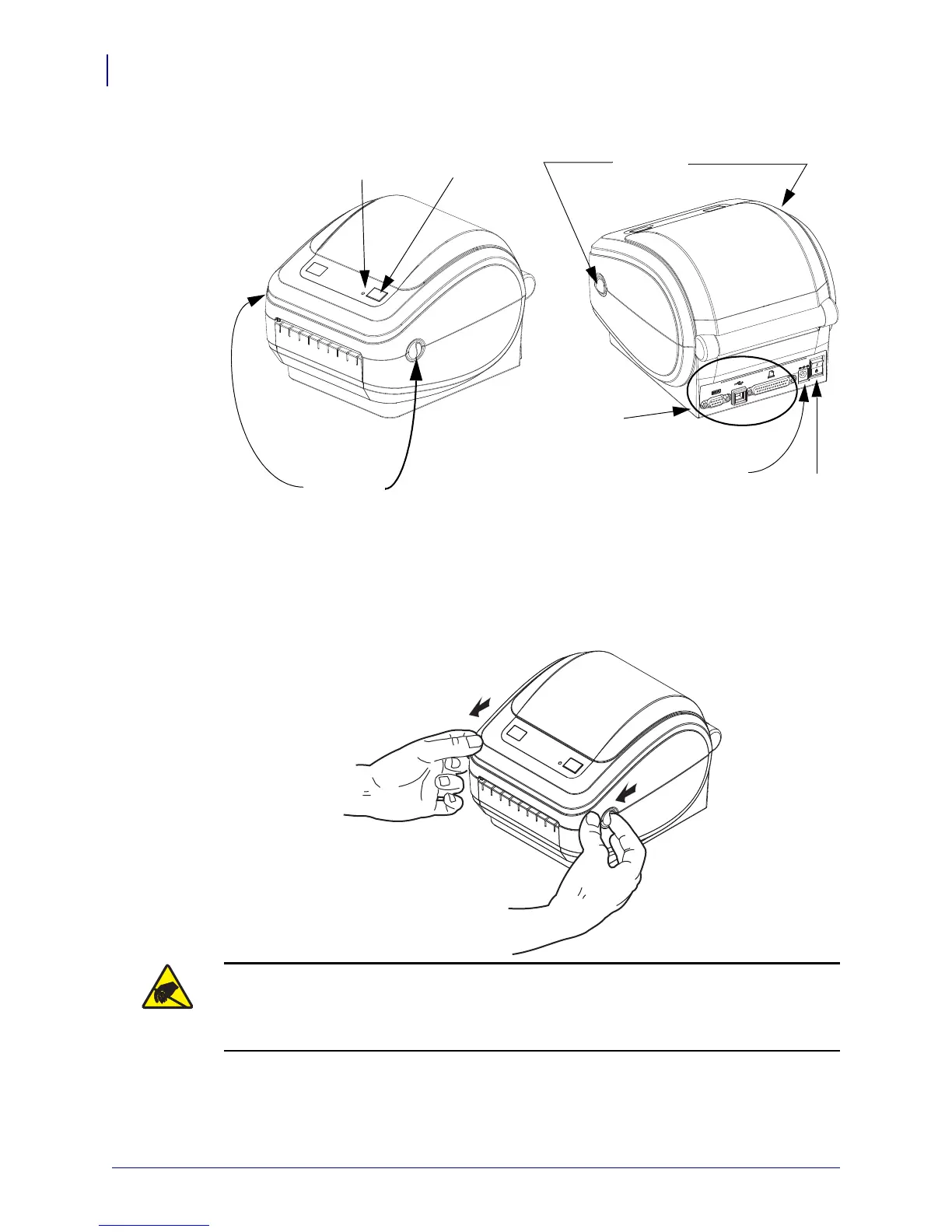

Opening the printer
To access the media compartment, you must open the printer. Pull the release latches towards
you and lift the cover. Check the media compartment for loose or damaged components.
Interface
Connectors
Feed
Button
Status
Light
Release
Latches
Release
Latches
DC Power
Receptacle
Power
Switch
Caution • The discharge of electrostatic energy that accumulates on the surface of the
human body or other surfaces can damage or destroy the printhead or electronic
components used in this device. You must observe static-safe procedures when working
with the printhead or the electronic components under the top cover.

Zebra GX420d Specifications

General

Print technology	Direct thermal
Maximum resolution	203 x 203 DPI
Media thickness	0.08 - 0.2 mm
Maximum media length	991 mm
Maximum roll diameter	127 mm
Supported paper width	104 mm
Media thickness (imperial)	0.003 - 0.0075 \
Maximum media length (imperial)	39 \
Supported paper width (imperial)	4.09 \
Standard interfaces	RS-232, USB 1.1, Parallel
USB 1.1 ports quantity	1
Connectivity technology	Wired
Dimensions (WxDxH)	171 x 209 x 152 mm
Flash memory	4 MB
Certification	FCC Part 15, Subpart 15, VCCI, C-Tick, EN55022 Class-B, EN6100-3-2, EN6100-3-3, EN55024, CCC, CB Scheme IEC 60950: 1991 +A1 +A2 + A3 +A4, TUV NRTL, IRAM, NOM, AAMI
Internal memory	8 MB
Built-in barcodes	Code 39, Code 49, Code 93, MaxiCode, PDF417, Postnet, QR Code, UPC-A, UPC-E
Storage temperature (T-T)	-40 - 140 °F
Operating temperature (T-T)	5 - 41 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %
Power requirements	100-240VAC, 50-60Hz
Package weight	3200 g

Weight and Dimensions

Weight	1400 g
