Zebra GX420d User Manual

7
Introduction
What’s in the Box?
6/4/08 GX420d User Guide 980611-001 Rev. B
Operator Controls
Power Switch
Press up to turn ON or down to turn OFF the printer.
Feed Button
• Tap the Feed button once to force the printer to feed one blank label.
• Press the Feed button to take the printer out of a “pause” condition. The printer is put into
“pause” by either a programming command or an error condition. See What the Status
Light is Telling You on page 78 in the Troubleshooting chapter.
• Use the Feed button for printer setup and status (see Feed Button Modes on page 87 in the
Troubleshooting chapter).

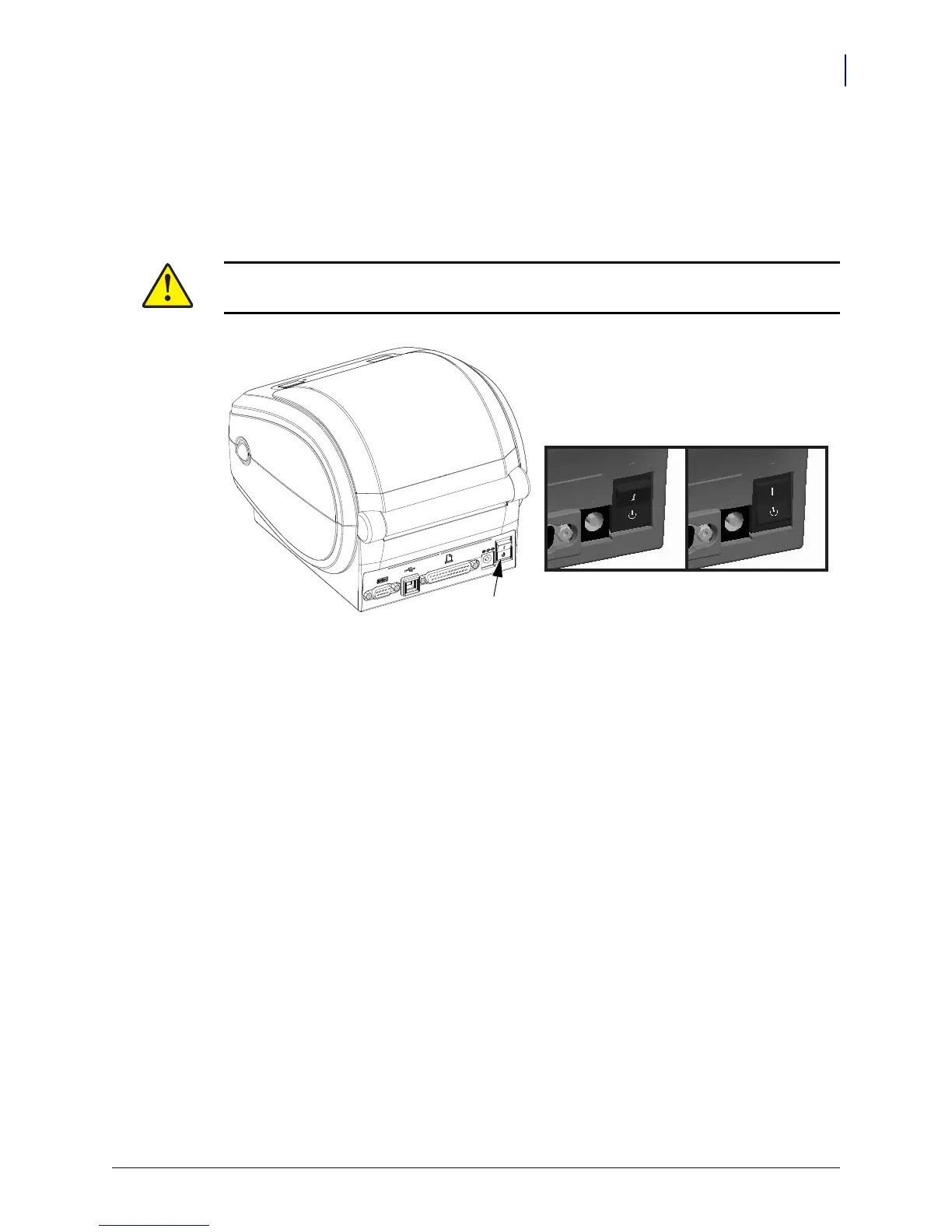

Caution • The printer power should be turned off before connecting or disconnecting the
communications and power cables.
Power OFF
Power ON
Power Switch
Power Switch

Zebra GX420d Specifications

General

Print technology	Direct thermal
Maximum resolution	203 x 203 DPI
Media thickness	0.08 - 0.2 mm
Maximum media length	991 mm
Maximum roll diameter	127 mm
Supported paper width	104 mm
Media thickness (imperial)	0.003 - 0.0075 \
Maximum media length (imperial)	39 \
Supported paper width (imperial)	4.09 \
Standard interfaces	RS-232, USB 1.1, Parallel
USB 1.1 ports quantity	1
Connectivity technology	Wired
Dimensions (WxDxH)	171 x 209 x 152 mm
Flash memory	4 MB
Certification	FCC Part 15, Subpart 15, VCCI, C-Tick, EN55022 Class-B, EN6100-3-2, EN6100-3-3, EN55024, CCC, CB Scheme IEC 60950: 1991 +A1 +A2 + A3 +A4, TUV NRTL, IRAM, NOM, AAMI
Internal memory	8 MB
Built-in barcodes	Code 39, Code 49, Code 93, MaxiCode, PDF417, Postnet, QR Code, UPC-A, UPC-E
Storage temperature (T-T)	-40 - 140 °F
Operating temperature (T-T)	5 - 41 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %
Power requirements	100-240VAC, 50-60Hz
Package weight	3200 g

Weight and Dimensions

Weight	1400 g
