Zebra GX420d User Manual

Getting Started
Attaching Power
12
980611-001 Rev. B GX420d User Guide 6/4/08
Attaching Power

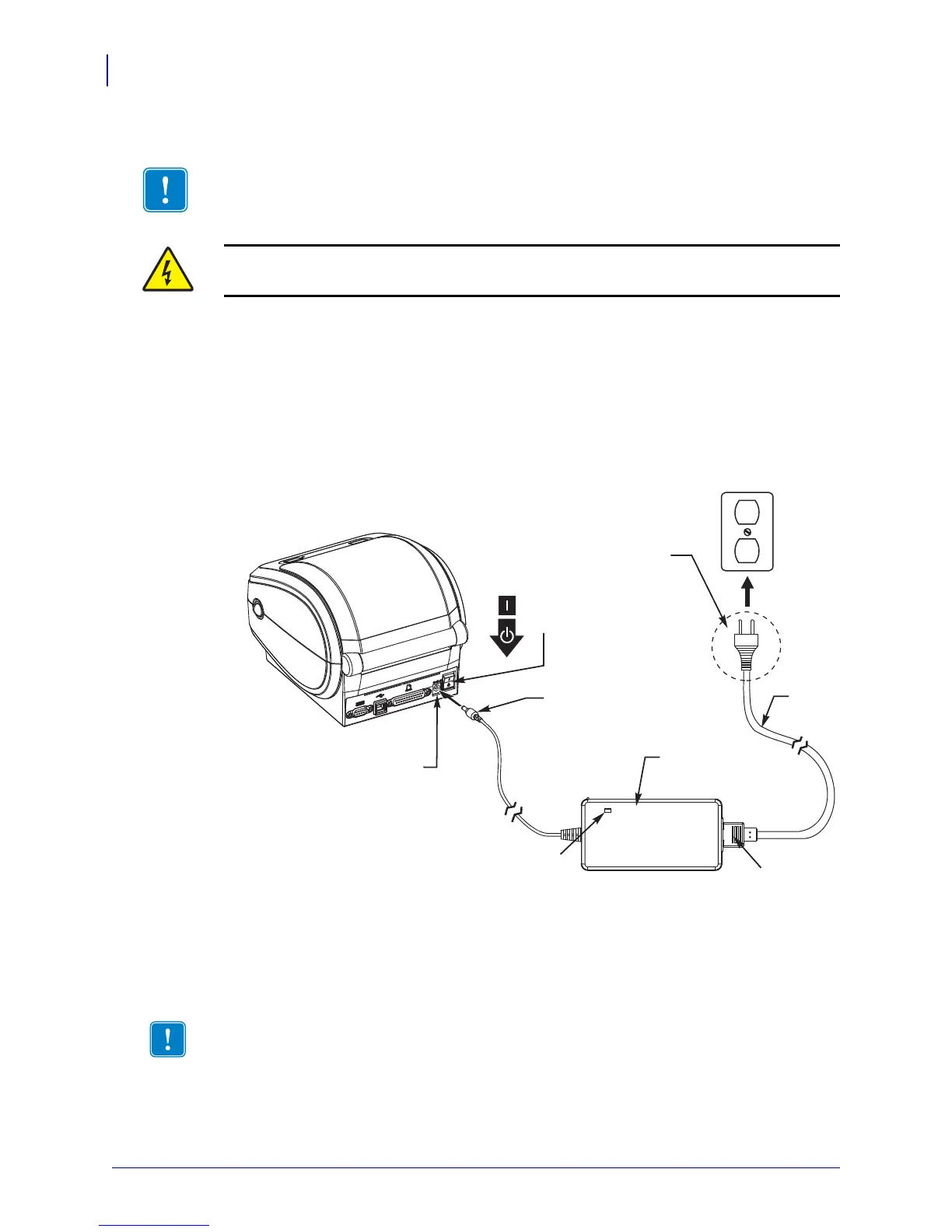

1. Make sure the printer’s power switch is in the off position (down).
2. Insert the AC power cord into the power supply.
3. Plug the other end of the cord into an appropriate AC electrical outlet. Note: The active
power light will go on if power is on at the AC outlet.
4. Insert the power supply’s power connector into the printer’s power receptacle.
Important • Set up your printer so that you can handle the power cord easily if needed. To
make certain the printer cannot carry electrical current, you must separate the power cord
from the power supply receptacle or AC electrical outlet.
Caution • Never operate the printer and power supply in an area where they can get wet.
Serious personal injury could result!
Power
Connector
Power
Switch
Plug Varies
by Country
Active Power Light
Power
Receptacle
AC
Power
Cord
Printer
Power
Supply
IEC 60320
C-13
Note • Ensure the appropriate power cord with a three (3) prong plug and an IEC 60320-C13
connector are used at all times. These power cords must bear the relevant certification mark of
the country in which the product is being used.

Zebra GX420d Specifications

General

Print technology	Direct thermal
Maximum resolution	203 x 203 DPI
Media thickness	0.08 - 0.2 mm
Maximum media length	991 mm
Maximum roll diameter	127 mm
Supported paper width	104 mm
Media thickness (imperial)	0.003 - 0.0075 \
Maximum media length (imperial)	39 \
Supported paper width (imperial)	4.09 \
Standard interfaces	RS-232, USB 1.1, Parallel
USB 1.1 ports quantity	1
Connectivity technology	Wired
Dimensions (WxDxH)	171 x 209 x 152 mm
Flash memory	4 MB
Certification	FCC Part 15, Subpart 15, VCCI, C-Tick, EN55022 Class-B, EN6100-3-2, EN6100-3-3, EN55024, CCC, CB Scheme IEC 60950: 1991 +A1 +A2 + A3 +A4, TUV NRTL, IRAM, NOM, AAMI
Internal memory	8 MB
Built-in barcodes	Code 39, Code 49, Code 93, MaxiCode, PDF417, Postnet, QR Code, UPC-A, UPC-E
Storage temperature (T-T)	-40 - 140 °F
Operating temperature (T-T)	5 - 41 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %
Power requirements	100-240VAC, 50-60Hz
Package weight	3200 g

Weight and Dimensions

Weight	1400 g
