Zebra KR203 - Wall Mount Roll Holder

47
Accessories
Wall Mount Roll Holder – P1014123
10/26/2010 KR203 Hardware Integrator Guide P1028247-001 Rev. B

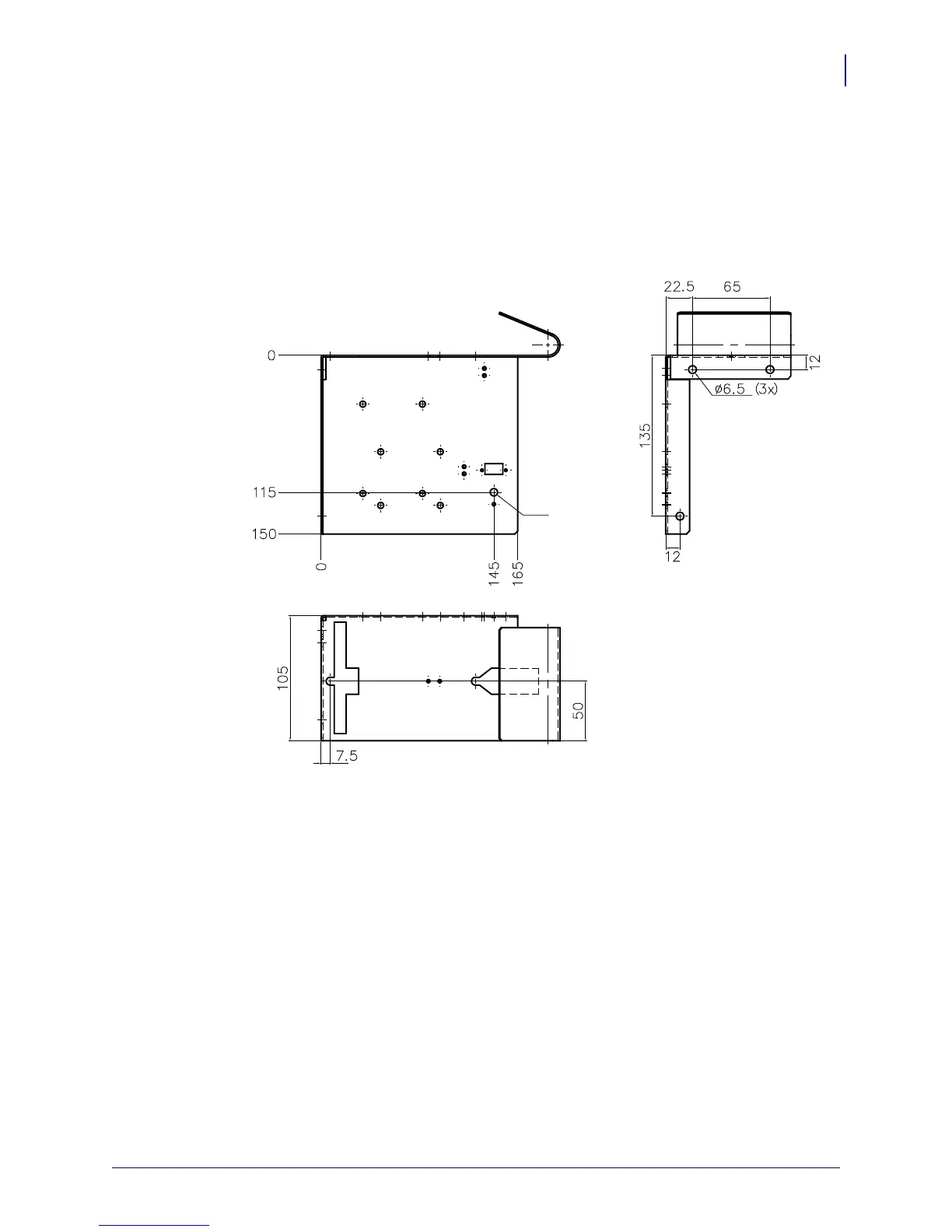

Wall Mount Roll Holder – P1014123
The wall mount roll holder enables mounting of the printer to the wall of a kiosk. Included
is the quick-fit hubs and leaf spring retainer.
The holder can accommodate media rolls up to 150mm in diameter, and 58, 60, 80, and
82.5mm media widths without adjustments.
Roll center
