Page #10 background image
10
QLn Series User Guide

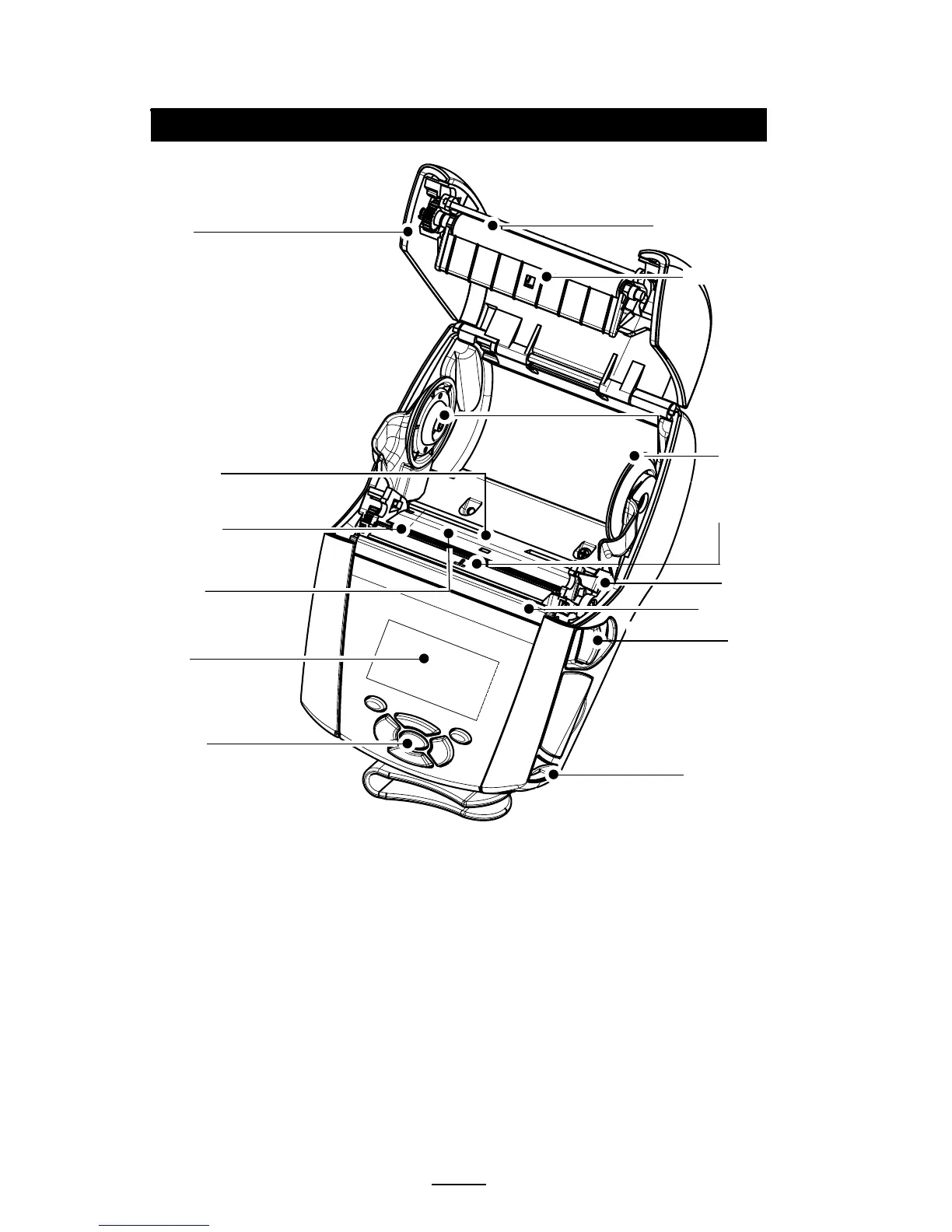

QLn Series Overview
1 Platen Roller
2. Bar Sensor
3. Media Support Disks
4. Tear Bar
5. Label Presence Sensor
6. Peeler Lever
7. Peeler Bail
8. Latch Release Lever
9. Key Pad
10. Strap Post
11. Status Screen
12. Printhead
13. Media Cover
14. Gap Sensor
9
8
11
4
12
13
10
Figure 1: QLn320 Shown
1
2
3
5
6
7
14
15. Belt Clip
16. Battery
17. USB/ RS-232 Comm Ports
18. MAC Address Label
19. Docking Contacts
20. DC Input

Other manuals for Zebra QLn320

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Zebra QLn320 and is the answer not in the manual?

Zebra QLn320 Specifications

QLn220

Media Characteristics IconMedia Characteristics
media width0.63 in / 16 mm to 2.18 in / 55.4 mm
media length0.5 in / 12.7 mm to 32 in / 813 mm
maximum media roll size2.2 in / 55.9 mm OD on a 0.75 in / 19 mm or 1.375 in / 34.9 mm
media thickness2.3 mil to 5.5 mil
Printer Specifications IconPrinter Specifications
print width1.9 in / 48 mm
print length0.5 in / 12.7 mm to 32 in / 813 mm
print speedUp to 4 in / 100 mm per second
Weight and Dimensions IconWeight and Dimensions
width3.5 in / 89 mm
height2.75 in / 70 mm
depth6.5 in / 165 mm
weight1.35 lbs / 0.57 kg

QLn320

Media Characteristics IconMedia Characteristics
media width1.0 in / 25 mm to 3.125 in / 79 mm
media length0.5 in / 12.7 mm to 32 in / 813 mm or continuous
maximum media roll size2.6 in / 66 mm OD on a 0.75 in / 19 mm or 1.375 in / 34.9 mm
media thickness2.3 mil to 6.5 mil
Printer Specifications IconPrinter Specifications
print width2.9 in / 72 mm
print length0.5 in / 12.7 mm to 32 in / 813 mm
print speedUp to 4 in / 100 mm per second
Weight and Dimensions IconWeight and Dimensions
width4.6 in / 117 mm
height3.3 in / 84 mm
depth6.8 in / 173 mm
weight1.6 lbs / 0.72 kg
