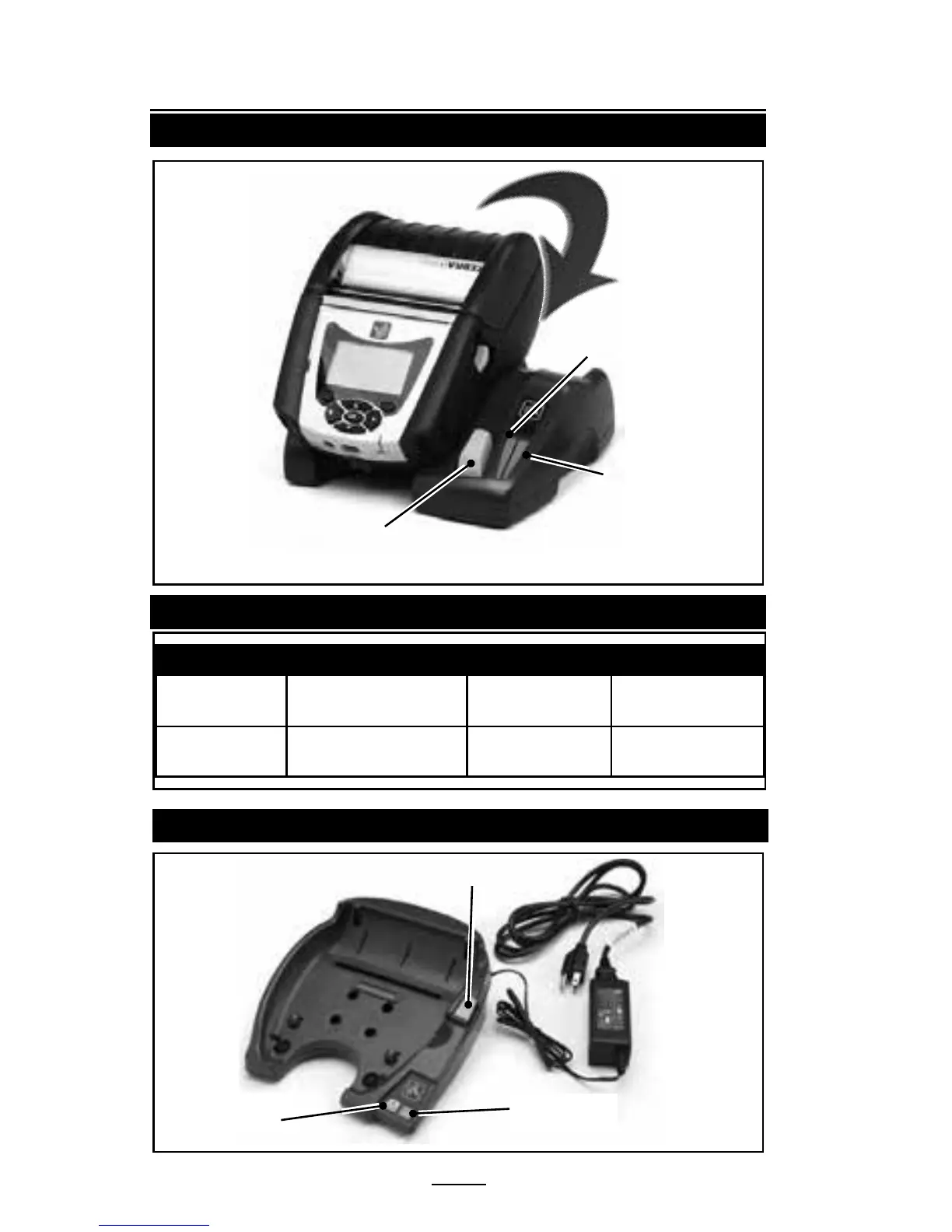

Figure 9: Ethernet Cradle Single Bay (QLn220/320)
Figure 10: QLn Series Ethernet Cradle Dimensions
Ethernet Status
Indicator
Power Status
Indicator
Cradle Height Width Length
QLn-EC 66,7 mm (2.62 in.) 171,28 mm
(6.74 in.)
150,57 mm
(5.93 in.)
QLn420-EC 66,2 mm (2.60 in.) 137,7 mm
(5.42 in.)
219,6 mm
(8.64 in.)
Release Button
Power Status
Indicator
Release Button
Ethernet Status
Indicator
Figure 11: Ethernet Cradle (QLn420)
AC Adapter
