QLn Series Mobile Printers Quick Start Guide
2
Introduction
Battery Install &
Charging
Media Loading
Connect Printer/
Printer Controls
Cleaning and
Troubleshooting
Accessories and
Contact Info
9
8
11
4
13
10
1
2
3
5
6
7
14
12
1 Platen Roller
2. Bar Sensor
3. Media Support Disks
4. Tear Bar
5. Label Presence Sensor
6. Peeler Lever
7. Peeler Bail
8. Media Cover Button
9. Key Pad
10. Strap Post
11. Status Screen
12. Printhead
13. Media Cover
14. Gap Sensor
15. Power Button
16. Feed Button
17. LED Charge Indicator

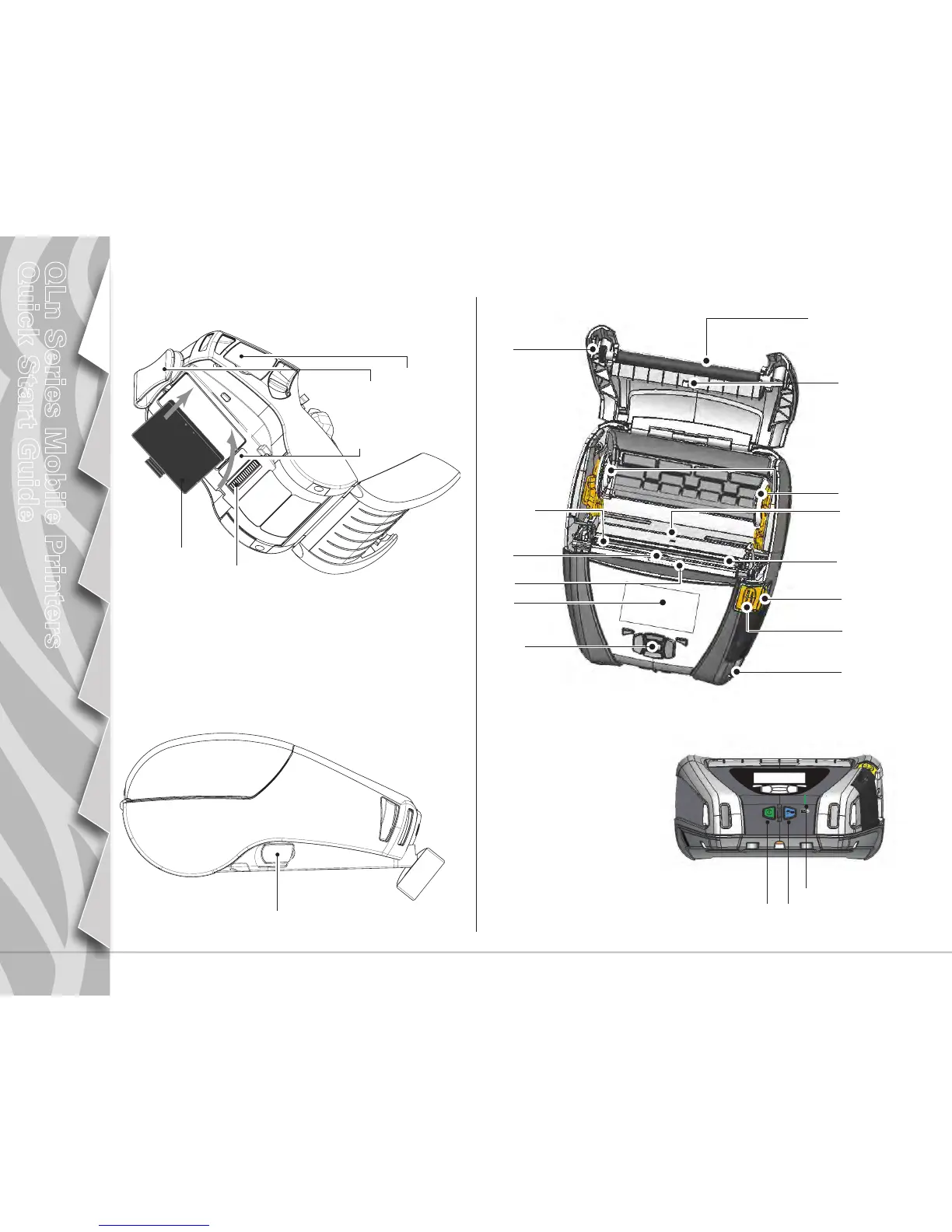

QLn Series Overview continued
19
18
21
18. Belt Clip
19. Battery
20. USB/RS232 Comm Ports
21. MAC Address Label
22. Docking Contacts
23. DC Input
20
23
22
QLn Series Overview (QLn420 Shown)
17
1615

Zebra QLn420 Specifications

Operating Environment

operating temperature	-4°F/-20°C to 122°F/50°C
storage/transport temperature	-13°F/-25°C to 158°F/65°C
operating humidity	10% to 90% non-condensing
storage humidity	10% to 90% non-condensing
ip rating	IP43 (IP54 with soft case)
drop tolerance	6'/1829mm to concrete

Power and Battery

battery capacity	5.0Ahr
battery charger	Built-in
charging options	AC adapter, Charging and Ethernet cradle, Vehicle cradle (DC power), Smart charger, Quad charger

Media Specifications

media width	2.0"(51mm)/4.4" (112mm)
media length	0.5"/12.7mm to 32"/813mm or continuous
maximum media roll size	2.6"/66mm OD on a 0.75"/19mm or 1.375"/34.9mm core
media thickness	3.2 mil to 7.5 mil
media types	Die-cut, roll-fed, fan-fold, receipt, linerless

Printer Specifications

resolution	203dpi/8 dots per mm
memory	128MB RAM; 256MB flash (standard)
print width	4.1"/104 mm
print length	Min. 0.5"/12.7mm Max. 32"/813mm
print speed	Up to 4"/102mm per second

Weight and Dimensions

width	6.5" (165mm)
height	7.35" (187mm) with beltclip
depth	3.25" (82.5mm)
weight	2.45lbs (1.1kg) with battery
