Zebra QLn420 User Manual

3
Introduction
Battery Install &
Charging
Media Loading
Connect Printer/
Printer Controls
Cleaning and Trouble-
shooting
Accessories and
Contact Info
QLn Series Mobile Printers Quick Start Guide

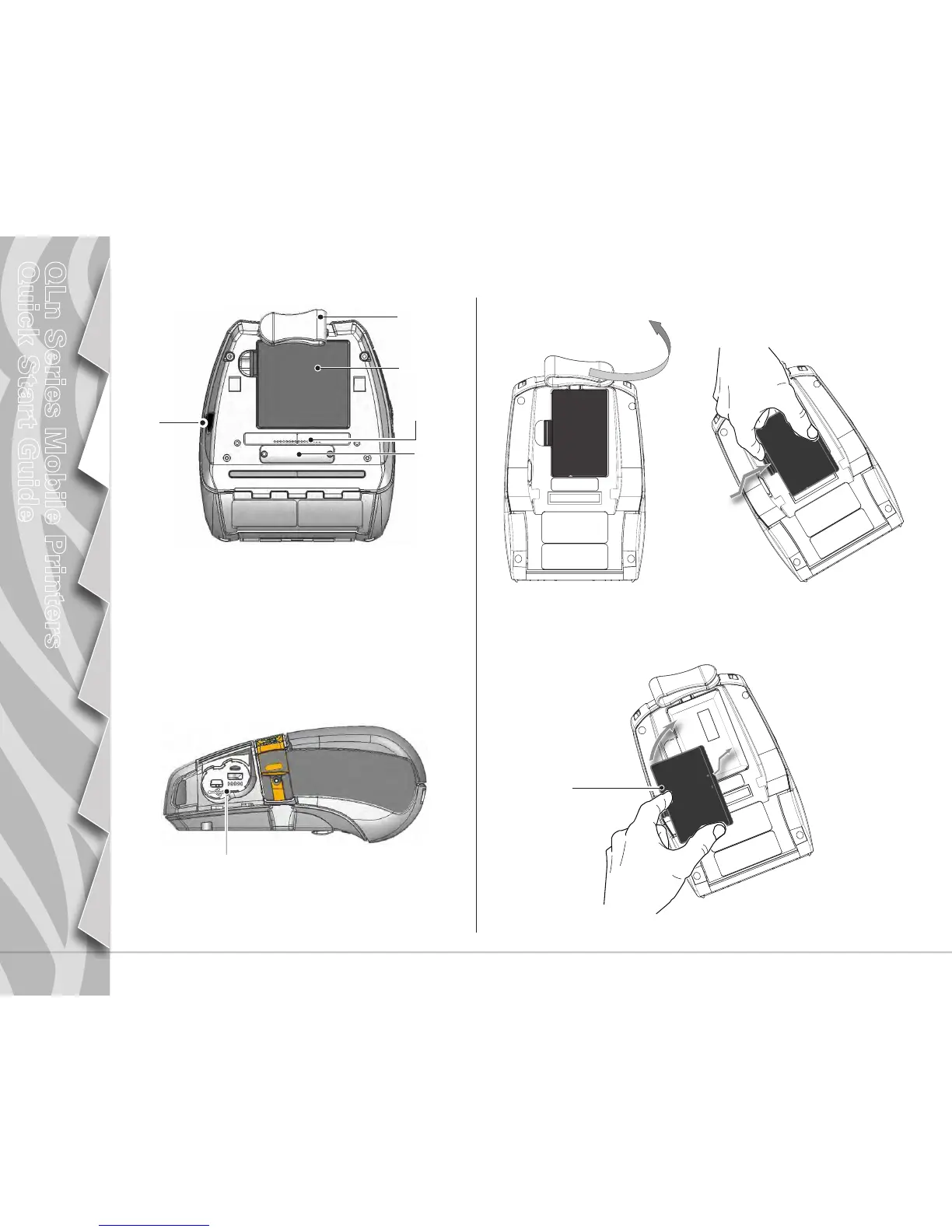

Removing the Battery (QLn220 Shown)
18
19
20
21
22
23
Rotate the Belt Clip out of the
way of the Battery
Installing the Battery
QLn Series Smart
Battery
Squeeze clip on battery pack
and remove.
18. Belt Clip
19. Battery
20. DC Input
21. MAC Address Label
22. Docking Contacts/Cover
23. USB/RS232 Comm Ports

Zebra QLn420 Specifications

Operating Environment

operating temperature	-4°F/-20°C to 122°F/50°C
storage/transport temperature	-13°F/-25°C to 158°F/65°C
operating humidity	10% to 90% non-condensing
storage humidity	10% to 90% non-condensing
ip rating	IP43 (IP54 with soft case)
drop tolerance	6'/1829mm to concrete

Power and Battery

battery capacity	5.0Ahr
battery charger	Built-in
charging options	AC adapter, Charging and Ethernet cradle, Vehicle cradle (DC power), Smart charger, Quad charger

Media Specifications

media width	2.0"(51mm)/4.4" (112mm)
media length	0.5"/12.7mm to 32"/813mm or continuous
maximum media roll size	2.6"/66mm OD on a 0.75"/19mm or 1.375"/34.9mm core
media thickness	3.2 mil to 7.5 mil
media types	Die-cut, roll-fed, fan-fold, receipt, linerless

Printer Specifications

resolution	203dpi/8 dots per mm
memory	128MB RAM; 256MB flash (standard)
print width	4.1"/104 mm
print length	Min. 0.5"/12.7mm Max. 32"/813mm
print speed	Up to 4"/102mm per second

Weight and Dimensions

width	6.5" (165mm)
height	7.35" (187mm) with beltclip
depth	3.25" (82.5mm)
weight	2.45lbs (1.1kg) with battery
