QLn Series Mobile Printers Quick Start Guide
4
Loading the Media (QLn320/220)
B.
C.
A.
4

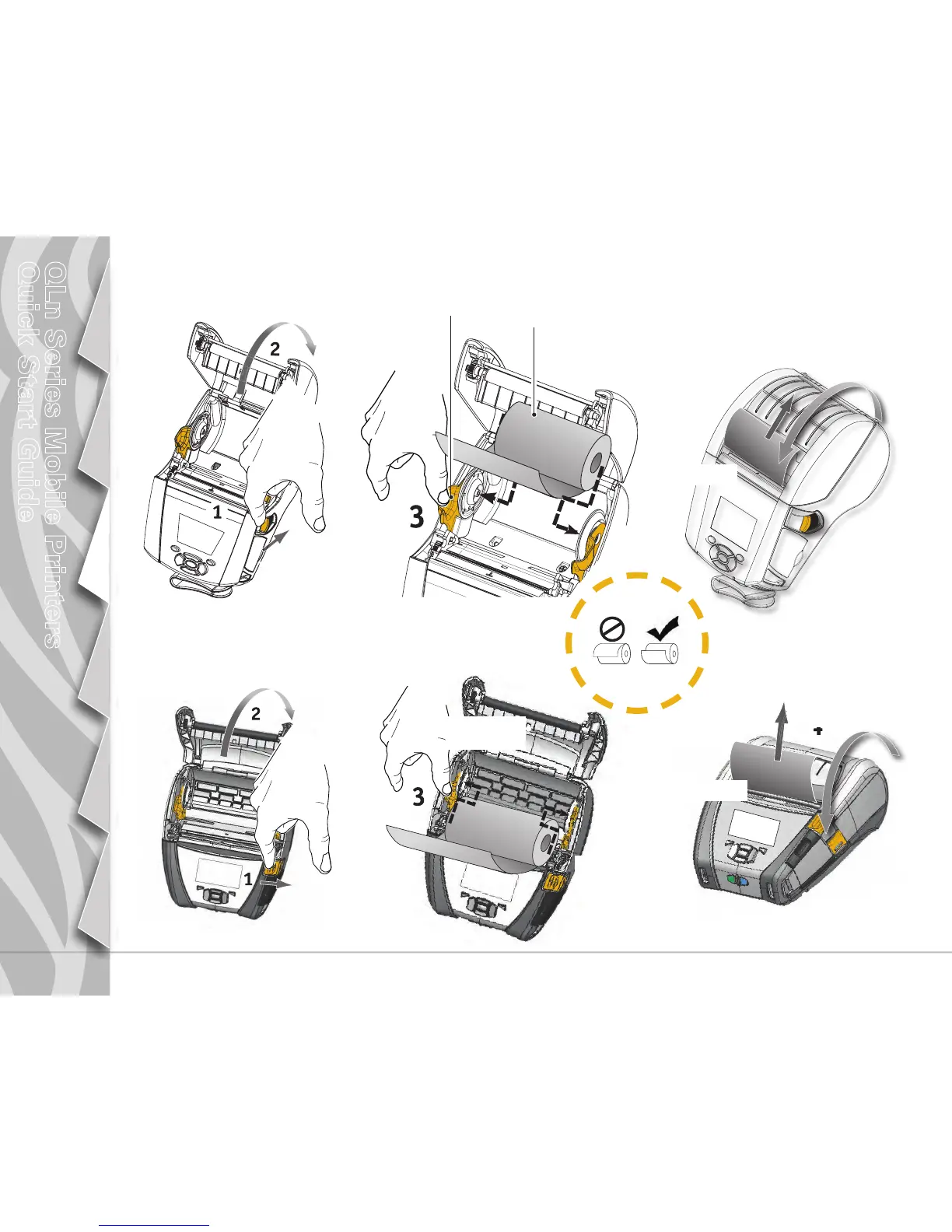

Loading the Media (QLn420)
Press Latch Button
Media Cover
ips open
Pull Media Supports
apart where shown.
Media Roll
Note direction media
pulls o the roll.
Pull Media out of
Printer
Close Media
Cover
Close Media
Cover
Pull Media out of
Printer
Pull Media Supports
apart where shown.
Media Roll
Note direction media
pulls o the roll.

Zebra QLn420 Specifications

Operating Environment

operating temperature	-4°F/-20°C to 122°F/50°C
storage/transport temperature	-13°F/-25°C to 158°F/65°C
operating humidity	10% to 90% non-condensing
storage humidity	10% to 90% non-condensing
ip rating	IP43 (IP54 with soft case)
drop tolerance	6'/1829mm to concrete

Power and Battery

battery capacity	5.0Ahr
battery charger	Built-in
charging options	AC adapter, Charging and Ethernet cradle, Vehicle cradle (DC power), Smart charger, Quad charger

Media Specifications

media width	2.0"(51mm)/4.4" (112mm)
media length	0.5"/12.7mm to 32"/813mm or continuous
maximum media roll size	2.6"/66mm OD on a 0.75"/19mm or 1.375"/34.9mm core
media thickness	3.2 mil to 7.5 mil
media types	Die-cut, roll-fed, fan-fold, receipt, linerless

Printer Specifications

resolution	203dpi/8 dots per mm
memory	128MB RAM; 256MB flash (standard)
print width	4.1"/104 mm
print length	Min. 0.5"/12.7mm Max. 32"/813mm
print speed	Up to 4"/102mm per second

Weight and Dimensions

width	6.5" (165mm)
height	7.35" (187mm) with beltclip
depth	3.25" (82.5mm)
weight	2.45lbs (1.1kg) with battery
