QLn Series Mobile Printers
Quick Start Guide

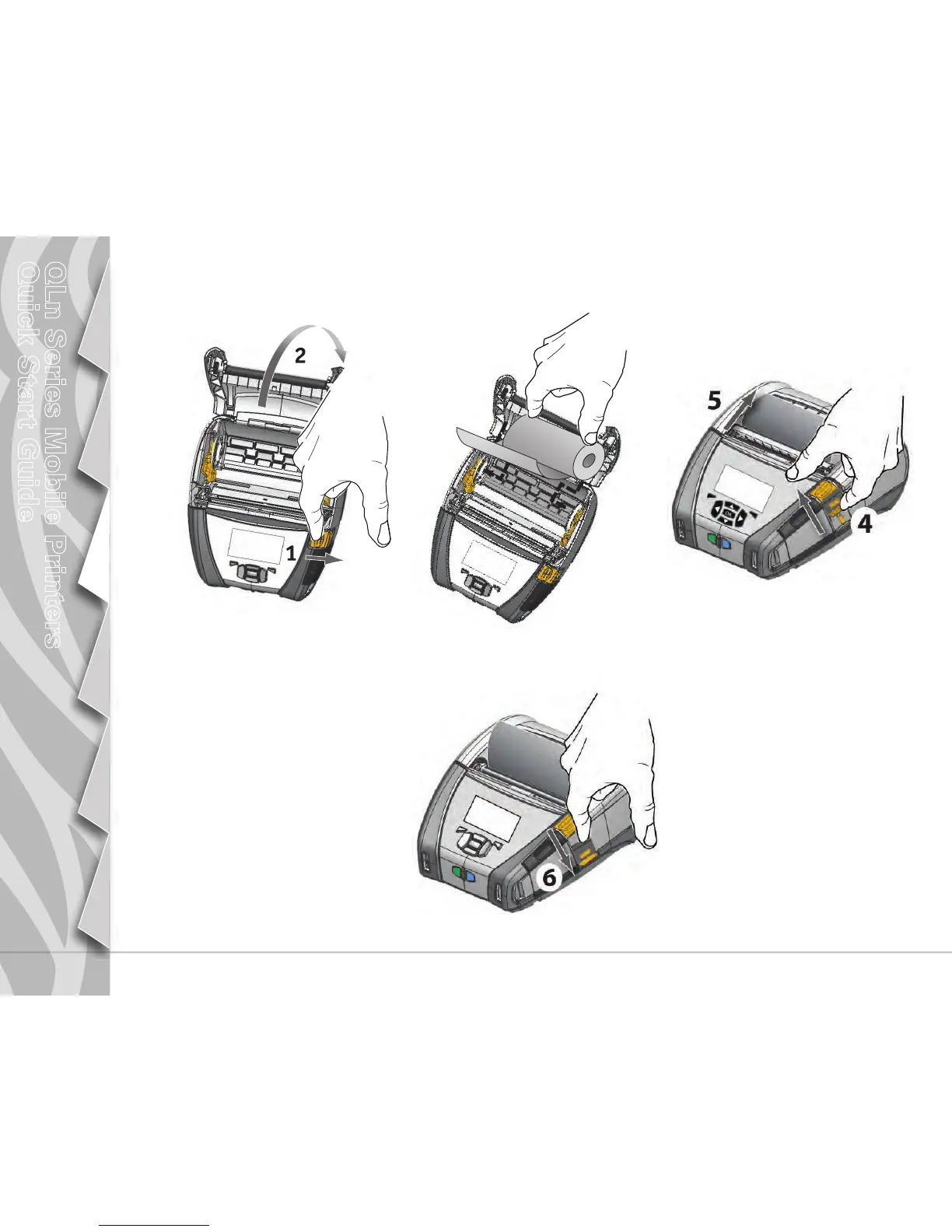

Loading the Media in QLn420 (Peeler Activated)
3
A. B.
C.
D.
To disengage the peeler
bail, press in on the peel-
er release button while
pressing down on the
peeler lever until it locks
in the home position.
To engage the peeler
bail, slide the peeler lever
up until it locks into posi-
tion.
Close the media cover
after loading media..
