Zebra TLP 2844-Z User Manual

Manual Calibration
Manual calibration is recommended whenever you are using pre-printed
media or if the printer will not correctly auto calibrate.
1. Make sure media is loaded.
2. Turn on the printer power.
3. Press and hold the feed button until the green status LED flashes once,
then twice. Release the feed button.
4. The printer will set the media sensor for the label backing being used.
After it is done making this adjustment, the roll will automatically feed
until a label is positioned at the print head.

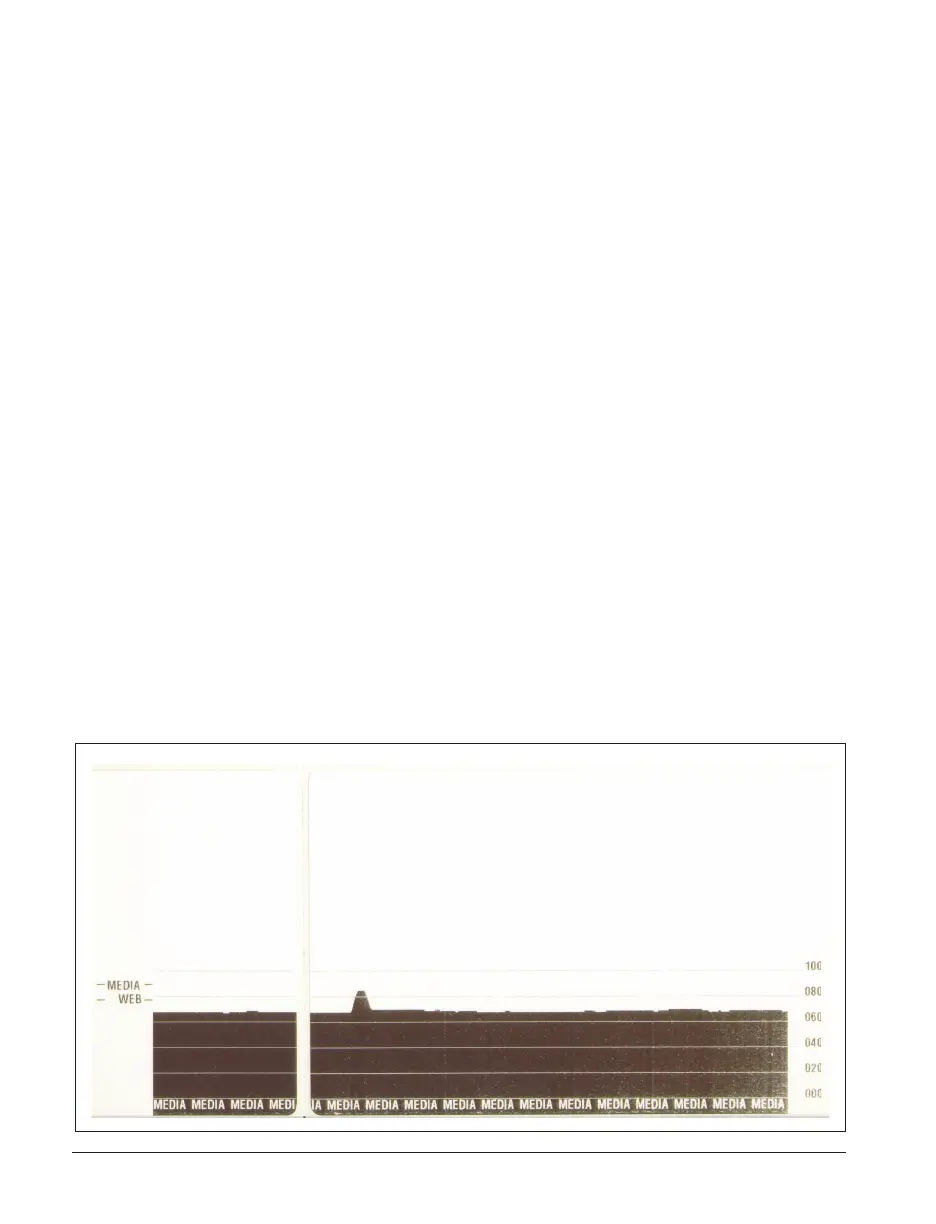

5. A profile of the media sensor settings (similar to the example below)
will print. Upon completion, the printer will save the new settings in
memory and the printer is ready for normal operation.
6. Press the feed button. One entire blank label will feed. If this does not
happen, try defaulting (refer to the four-flash sequence in “Feed Button
Modes” on page 45) and recalibrating the printer.
NOTE: Performing a manual calibration disables the auto calibration
function. To return to auto calibration, default the printer (see the
four-flash sequence in “Feed Button Modes” on page 45).
42 980410-001 Rev. B

Zebra TLP 2844-Z Specifications

General

Resolution	203 dpi
Media Sensors	Reflective and transmissive
Print Method	Direct Thermal
Print Width	4.09 inches
Max Print Speed	4 inches per second
Max Print Length	39 inches
Connectivity	USB, Serial, Parallel
Media Handling	Roll-fed, Fanfold
Label Roll Capacity	5" (127 mm) O.D.
Supported Barcode Types	Code 39, Code 128, UPC, EAN, Interleaved 2 of 5
Supported Media Types	Roll-fed or fanfold, die-cut labels with or without black mark, tag stock, continuous receipt paper, wristbands
Media Width	1.0" (25.4 mm) to 4.25" (108 mm)
Media Thickness	0.003 inches (0.08 mm) to 0.0075 inches (0.19 mm)
Operating Temperature	40°F (5°C) to 105°F (41°C)
Storage Temperature	-40°F (-40°C) to 140°F (60°C)
Power Requirements	100-240 VAC, 50-60 Hz
