10 VC80 Vehicle Computer
Connect Optional Parts and Accessories
Use the VC80 connection ports to connect optional parts and accessories
(see Back View on page 6).
Refer to the VC80 User Guide at www.zebra.com/support for a complete list of
optional parts, accessories, and part numbers.
• Antenna options
• Mounting options
• Scanner holder, keyboard mounting tray, keypad side mount bracket
• Keyboard and numeric keypad
• Cables and power supplies
• Miscellaneous: speaker/microphone, screen protector, stylus.
Connecting Vehicle DC Supply
CAUTION Only qualified service personnel should connect the VC80 to the
vehicle battery.
NOTE Power adapter and extension cable requirements may vary. Refer to the
VC80 User Guide at www.zebra.com/support for a complete list of optional
parts and accessories.
CAUTION Do not use the diode/choke assembly in the Extension Power Cable kit.

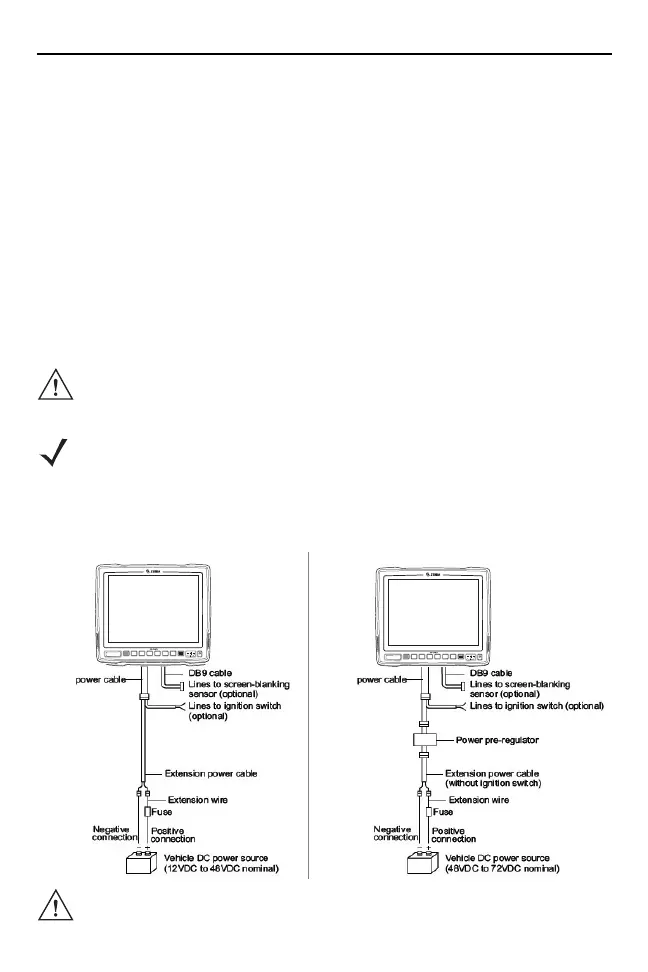

Without Power Pre-regulator
For vehicles with DC power 48V or less
With Power Pre-regulator
For vehicles with DC power greater than 48V
M1
M7
M2
M8
M3
M9
M4
M10
M5
M11
M6
M12
M1
M7
M2
M8
M3
M9
M4
M10
M5
M11
M6
M12
To Next Page
