Zebra VC80 Quick Reference Guide

Quick Reference Guide 9
Installation
Installing the VC80 on a Forklift
1. Attach the desired mount to the VC80. Refer to the VC80 User Guide at
www.zebra.com/support for detailed mounting options and instructions.
2. Attach the mounted VC80 to the vehicle and position in a location that does not
obstruct the operator’s view.
3. If using an external antenna, connect antenna in a vertical position to the VC80.
4. Connect peripherals to the VC80. Place the cables in the strain relief brackets
inside the dust cover and replace the dust cover (see Back View on page 6).
5. Connect the VC80 to the vehicle DC supply.
6. Press the Power button to turn the device On or Off (see Front View on page 5).
CAUTION Do not install the vehicle computer in a location that affects
vehicle safety, visibility, or ability to drive.
If mounted above head height, it is recommended to also use
a safety strap with the mount bracket.
IMPORTANT The vehicle front end connected fuse must meet UL 275.
CAUTION Tighten peripherals with thumbscrews by hand only. Do not
use tools for tightening thumbscrews.
NOTE If installing peripherals, allow enough space when selecting a
mounting location.

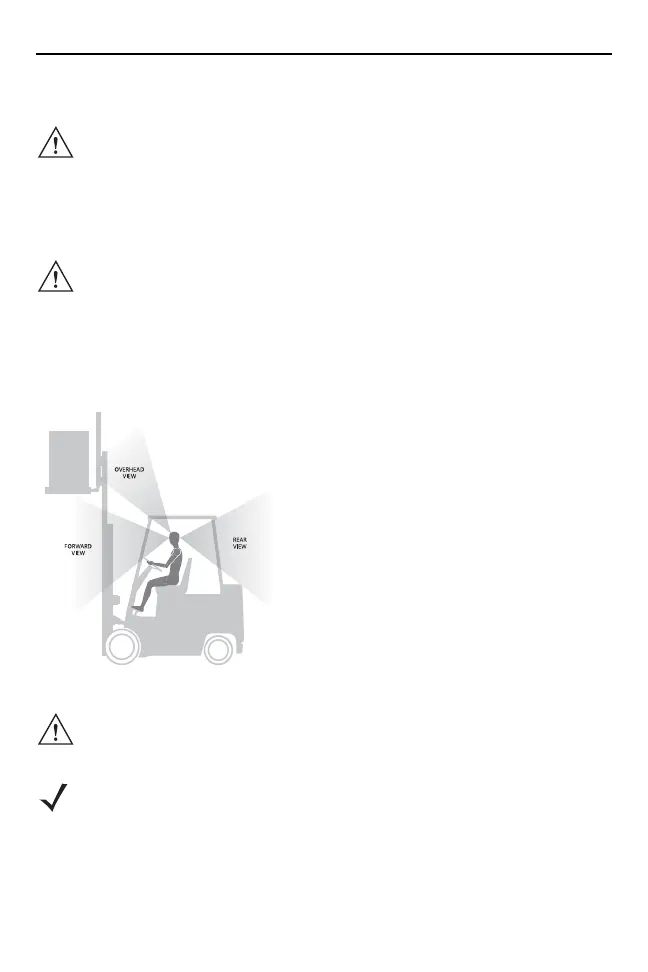

View Obstruction Considerations

Zebra VC80 Specifications

General

Display diagonal	10.4 \
Display resolution	1024 x 768 pixels
Touchscreen technology	Resistive
Storage temperature (T-T)	-30 - 60 °C
Operating temperature (T-T)	-30 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
Processor cache	2 MB
Processor cores	4
Processor model	E3845
Processor family	Intel Atom®
Processor frequency	1.91 GHz
Internal memory	4 GB
SSD capacity	The Solid State Drive's storage capacity in Gigabytes.
SSD interface	mSATA
Storage media	SSD
Total storage capacity	128 GB
Certification	RoHS, WEEE, REACH compliant, IEC UL94-V0
Number of speakers	1
Card reader integrated	No
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Quantity per pack	1 pc(s)
RS-232 ports	2
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Product color	Black
Operating system installed	Windows 10 IoT Enterprise
Operating system architecture	64-bit
Harmonized System (HS) code	84715000

Weight and Dimensions

Depth	90 mm
Width	235 mm
Height	265 mm
Weight	3900 g
