Zebra VC80 Quick Reference Guide

Quick Reference Guide 5
Features

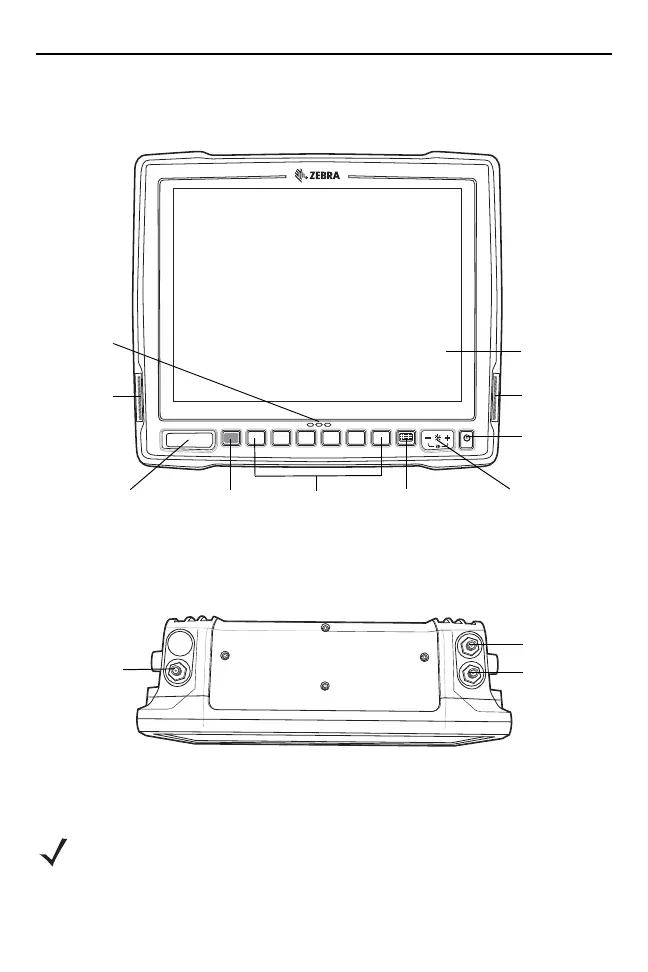

Front View
Top View of External WiFi Antenna
NOTE Antenna options are dependent on the VC80 configuration. Some
configurations only have internal antennas while other configurations have
two or more external antenna connectors. WiFi antennas are not shipped with
the VC80 and must be ordered as a separate accessory.
For a complete list of configurations, refer to the VC80 User Guide at
www.zebra.com/support.
M1
M7
M2
M8
M3
M9
M4
M10
M5
M11
M6
M12
Speaker
On Screen
Keyboard
Speaker Volume\
Display Brightness
Power
Button
Pairing
Bar Code
Unpairing
Bar Code
Programmable
Macro Keys
(6 + 6)
Blue
Modifier
Key
LEDs
(three)
Resistive
Touch Screen
802.11 a/b/g/n/ac Radio External Antenna Connectors
ANT 1
ANT 2
ANT 3
ANT 1 - Reverse Polarity SMA Jack (WLAN) / External Main WiFi Antenna
ANT 2 - Reverse Polarity SMA Jack (WLAN + BT) / External WiFi Diversity or MIMO Antenna
ANT 3 - SMA Jack (GPS)

Zebra VC80 Specifications

General

Display diagonal	10.4 \
Display resolution	1024 x 768 pixels
Touchscreen technology	Resistive
Storage temperature (T-T)	-30 - 60 °C
Operating temperature (T-T)	-30 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
Processor cache	2 MB
Processor cores	4
Processor model	E3845
Processor family	Intel Atom®
Processor frequency	1.91 GHz
Internal memory	4 GB
SSD capacity	The Solid State Drive's storage capacity in Gigabytes.
SSD interface	mSATA
Storage media	SSD
Total storage capacity	128 GB
Certification	RoHS, WEEE, REACH compliant, IEC UL94-V0
Number of speakers	1
Card reader integrated	No
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Quantity per pack	1 pc(s)
RS-232 ports	2
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Product color	Black
Operating system installed	Windows 10 IoT Enterprise
Operating system architecture	64-bit
Harmonized System (HS) code	84715000

Weight and Dimensions

Depth	90 mm
Width	235 mm
Height	265 mm
Weight	3900 g
