Zebra ZE500 - Print Engine Orientation

ZE500 Quick Reference Guide
Load Ribbon and Media
14
P1047597-001 03/08/2012

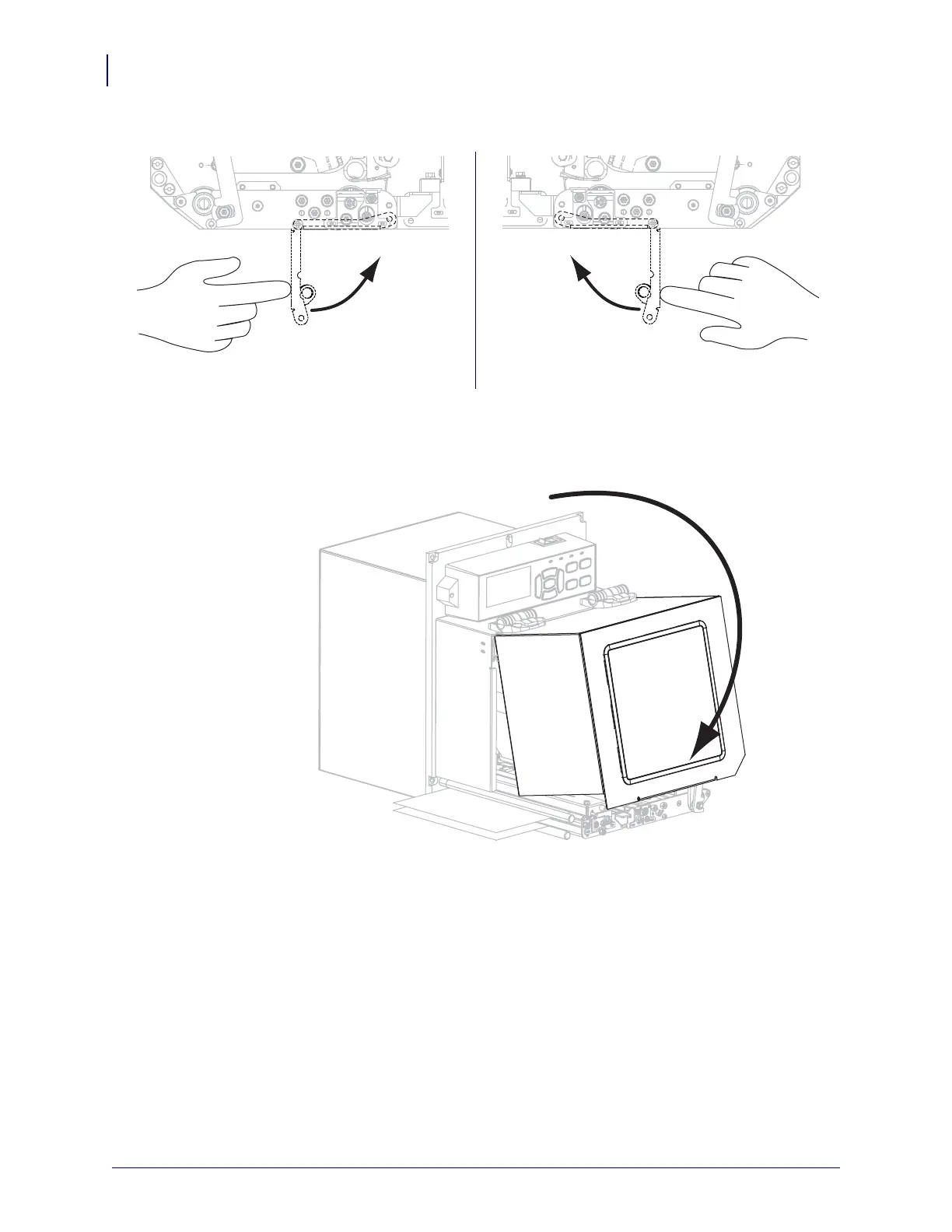

17. Rotate the peel roller assembly up until it locks into the closed position.
18. Thread the liner around the take-up spindle of the applicator (refer to the applicator’s
documentation for more information).
19. Close the media door.
LH RH
