Zebra ZE500 Quick Reference Manual

3
ZE500 Quick Reference Guide
Control Panel
03/08/2012 P1047597-001
Control Panel
All controls and indicators for the print engine are located on the control panel (Figure 4). The
power switch is located on top of the control panel.

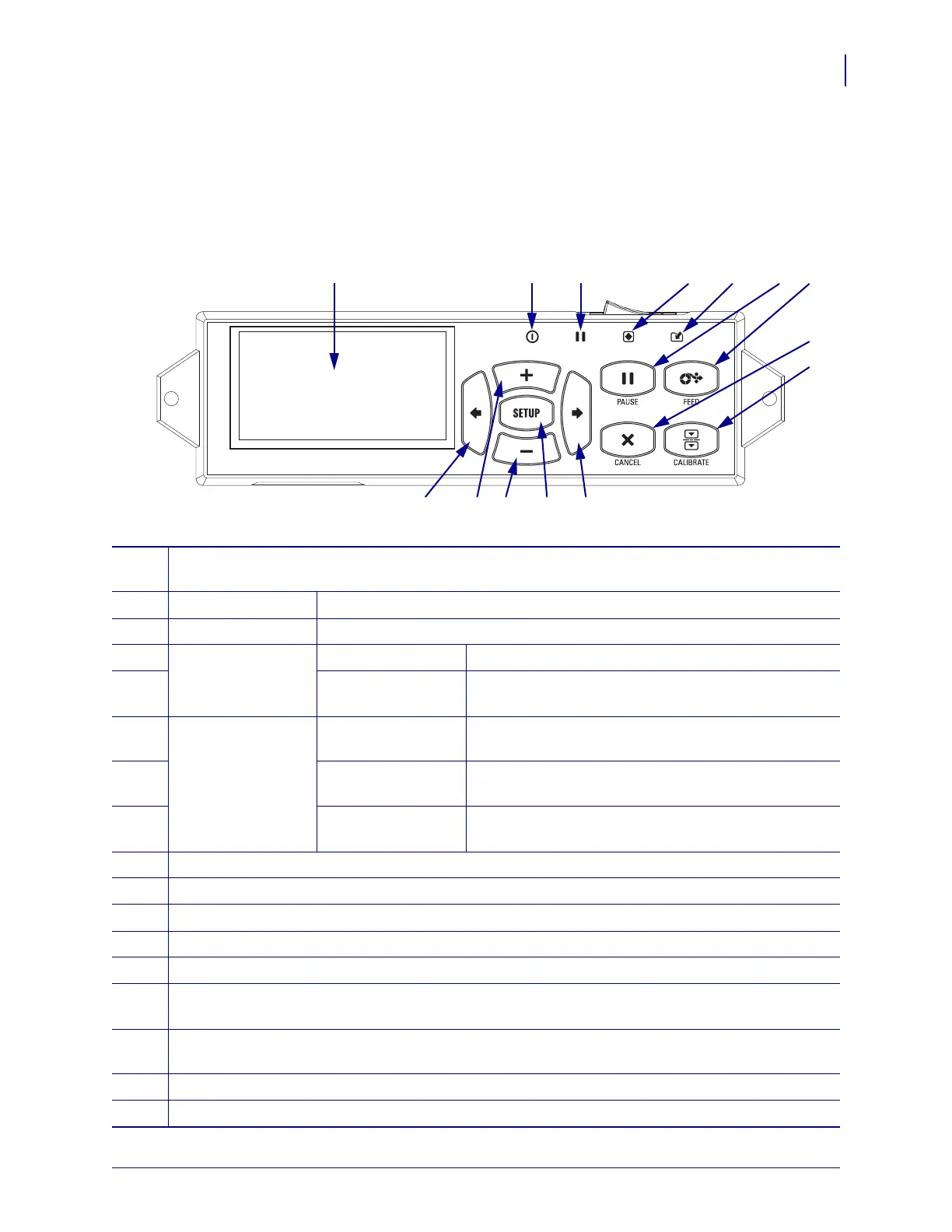

Figure 4 • Control Panel
1
The display shows the print engine’s operating status and allows the user to navigate the menu
system.
2
POWER light On when the print engine is on.
3
PAUSE light On when the print engine is paused.
4
STATUS light Off Normal operation—no print engine errors.
Blinking A print engine error exists. Check the display for more
information.
5
DATA light Off Normal operation. No data being received or
processed.
On The print engine is processing data or is printing. No
data is being received.
Blinking The print engine is receiving data from or sending
status information to the host computer.
6
The PAUSE button starts or stops print engine operation when pressed.
7
The FEED button forces the print engine to feed one blank label each time the button is pressed.
8
The CANCEL button cancels print jobs when the print engine is paused.
9
The CALIBRATE button calibrates the print engine for media length and sensor values.
10
The LEFT ARROW navigates to the previous parameter in the menus.
11
The PLUS (+) button changes the parameter values. Common uses are to increase a value, to scroll
through choices, or to change values while entering the print engine password.
12
The MINUS (-) button changes the parameter values. Common uses are to decrease a value, to scroll
through choices, or to change the cursor position while entering the print engine password.
13
The SETUP/EXIT button enters and exits configuration mode.
14
The RIGHT ARROW navigates to the next parameter in the menus.
POWER PAUSE STATUS DATA
1
2 3 4 5
10 11 12 13 14
6 7
9
8

Zebra ZE500 Specifications

General

Print technology	-
Maximum resolution	300 x 300 DPI
Maximum printing width	168 mm
Wi-Fi	No
Ethernet LAN	Yes
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Connectivity technology	Wired
Parallel ports quantity	1
Flash memory	64 MB
Internal memory	16 MB
Built-in barcodes	1D, 2D, CODABAR (NW-7), Code 129-Auto, Code 39, Code 49, Code 93, EAN13, EAN8, Industrial 2/5, Interleaved 2/5, MaxiCode, PDF417, POSTNET, QR Code, TLC39, UPC-A, UPC-E
Processor frequency	133 MHz
Page description languages	XML, ZPL, ZPL II
Display	LCD
Product color	Black
Housing material	Metal
Core diameter	25.4 mm
Ribbon length	600 m
Maximum label width	180 mm
Maximum media length	3810 mm
Sustainability certificates	ENERGY STAR
Storage temperature (T-T)	-40 - 71 °C
Operating temperature (T-T)	32 - 104 °F
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	20 - 85 %
Harmonized System (HS) code	84433210

Weight and Dimensions

Depth	438 mm
Width	245 mm
Height	300 mm
Weight	17300 g
