Zebra ZE500 Quick Reference Manual

ZE500 Quick Reference Guide
Print Engine Components
2
P1047597-001 03/08/2012
Print Engine Components

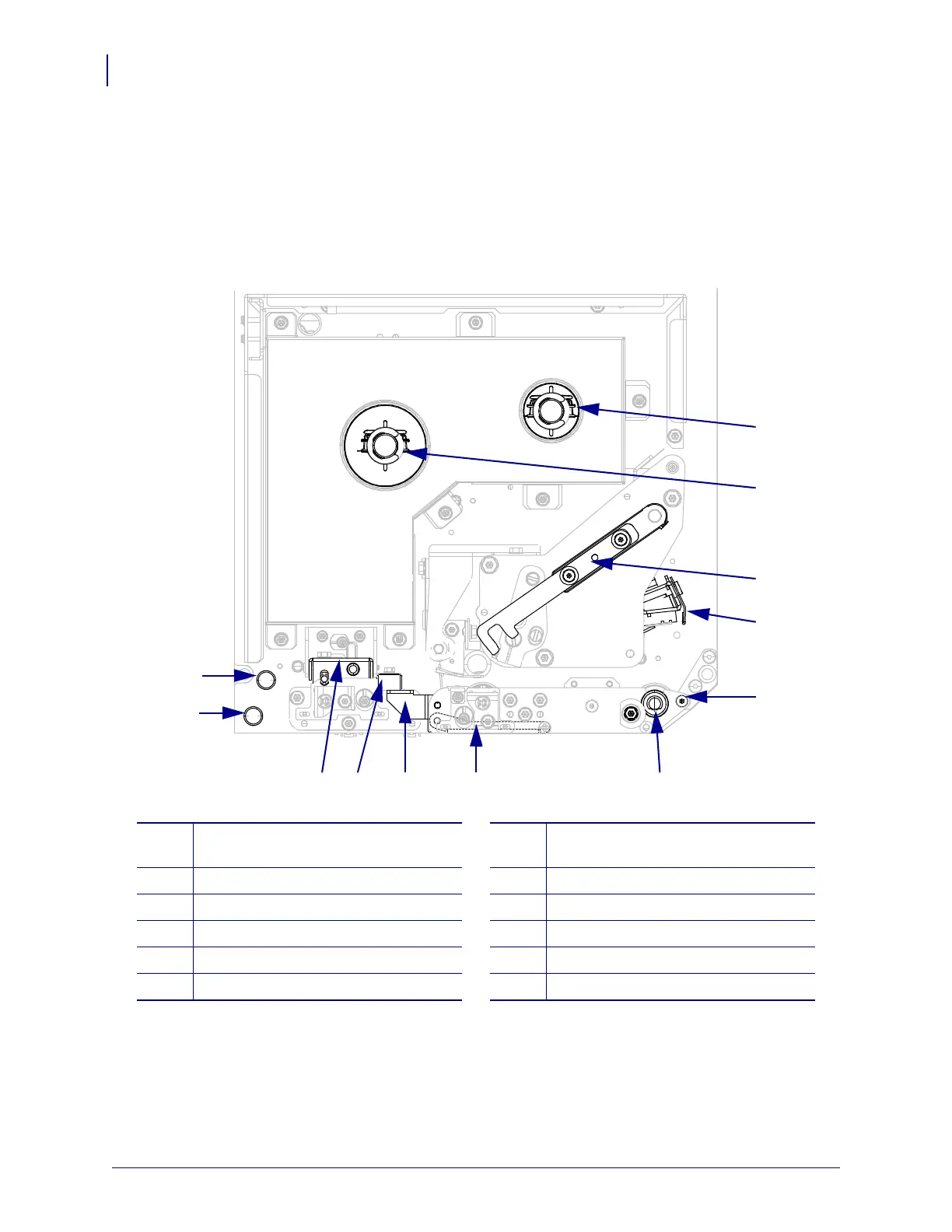

Figure 3 shows the components inside the media compartment of a right-hand print engine. A
left-hand unit contains a mirror image of these components. Familiarize yourself with these
components before continuing with the print engine setup procedure.
Figure 3 • Print Engine Components (RH model shown)
a222
1
ribbon take-up spindle
7
peel roller assembly (hidden when
closed)
2
ribbon supply spindle
8
peel roller latch
3
printhead-release latch
9
media guide
4
printhead assembly
10
pinch roller assembly
5
peel bar
11
lower guide post
6
platen roller
12
upper guide post
3
4
910 7
5
6
12
11
8
1
2

Zebra ZE500 Specifications

General

Print technology	-
Maximum resolution	300 x 300 DPI
Maximum printing width	168 mm
Wi-Fi	No
Ethernet LAN	Yes
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Connectivity technology	Wired
Parallel ports quantity	1
Flash memory	64 MB
Internal memory	16 MB
Built-in barcodes	1D, 2D, CODABAR (NW-7), Code 129-Auto, Code 39, Code 49, Code 93, EAN13, EAN8, Industrial 2/5, Interleaved 2/5, MaxiCode, PDF417, POSTNET, QR Code, TLC39, UPC-A, UPC-E
Processor frequency	133 MHz
Page description languages	XML, ZPL, ZPL II
Display	LCD
Product color	Black
Housing material	Metal
Core diameter	25.4 mm
Ribbon length	600 m
Maximum label width	180 mm
Maximum media length	3810 mm
Sustainability certificates	ENERGY STAR
Storage temperature (T-T)	-40 - 71 °C
Operating temperature (T-T)	32 - 104 °F
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	20 - 85 %
Harmonized System (HS) code	84433210

Weight and Dimensions

Depth	438 mm
Width	245 mm
Height	300 mm
Weight	17300 g
