External View

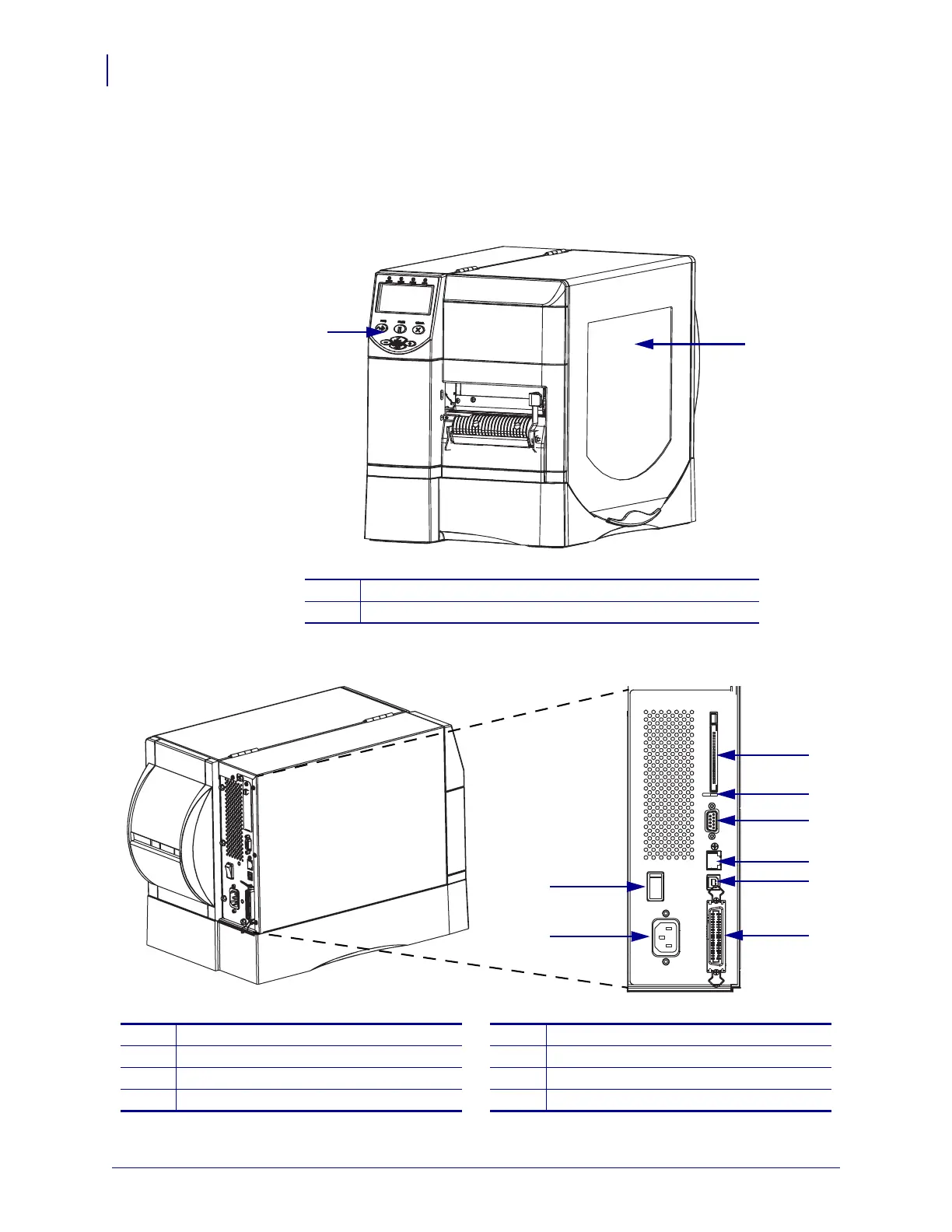

Figure 2 and Figure 3 show the components and connections on the outside of the printer.
Figure 2 • Front of Printer
Figure 3 • Rear of Printer
1
Control panel
2
Media door
1
2
1
Power switch (O = off, I = on)
5
Serial port
2
AC power connector
6
Internal wired print server port (Ethernet)
3
Wireless print server card slot (Ethernet)
7
USB port
4
Wireless card ejector button
8
Parallel port
5
6
7
8
1
2
3
4
