zebris Medical GmbH FDM Technical Data and Operating Instructions Page 12/36
2.3 Technical data of FDM system for stance and gait analysis
Platform Type FDM 1.5
Item number 124.3015
Dimensions (L x W x H) 158 x 60.5 x 2.1 cm (L x W x H)
Weight approx. 16.5 kg
Sampling frequency 100 Hz optional 200 / 300 Hz
Number of sensor 11264
Sensor surface 149 x 54.2 cm (L x W)

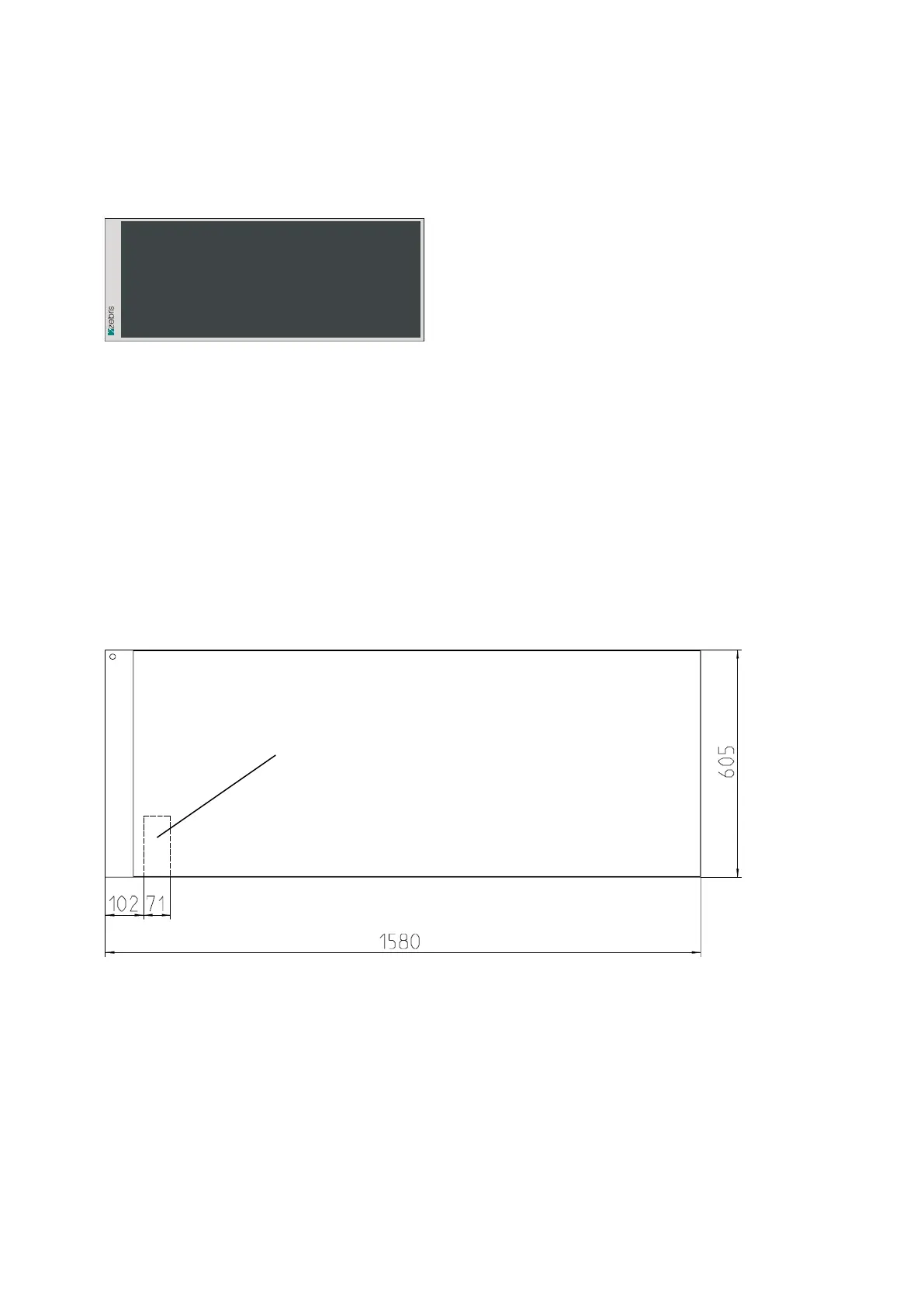

Dimensions for integration into walking range
Connector box
at bottom side
