zebris Medical GmbH FDM Technical Data and Operating Instructions Page 16/36
3 Setup and operation of the FDM System
3.1 General information
The floor where the device is set up must be absolutely even and horizontal. For further
details on setting up the measuring platform please see the section "Recommendations for
Recording Data".
3.2 Status indicator LED
green flashing The power supply unit is connected to mains and a correct supply
voltage is provided. A USB connection is not established yet or
recognized. The platform is not ready for initialization or
measurement.
green permanent The power supply unit is connected to mains and a correct supply
voltage is provided. A USB connection is established and
recognized. The platform is ready for initialization or
measurement.
orange flashing A measurement is in process.
orange permanent A measurement is in process and infrared synchronization signals
(from other zebris devices) are received. The orange flashing
signalizes that valid synchronization signals are received.
3.3 How to switch the platform On/Off
The platform is switched on and off by software control as soon as the WinFDM software
on the PC is started. If the device has been connected correctly, the green LED operating
indicator illuminates on the housing of the platform.

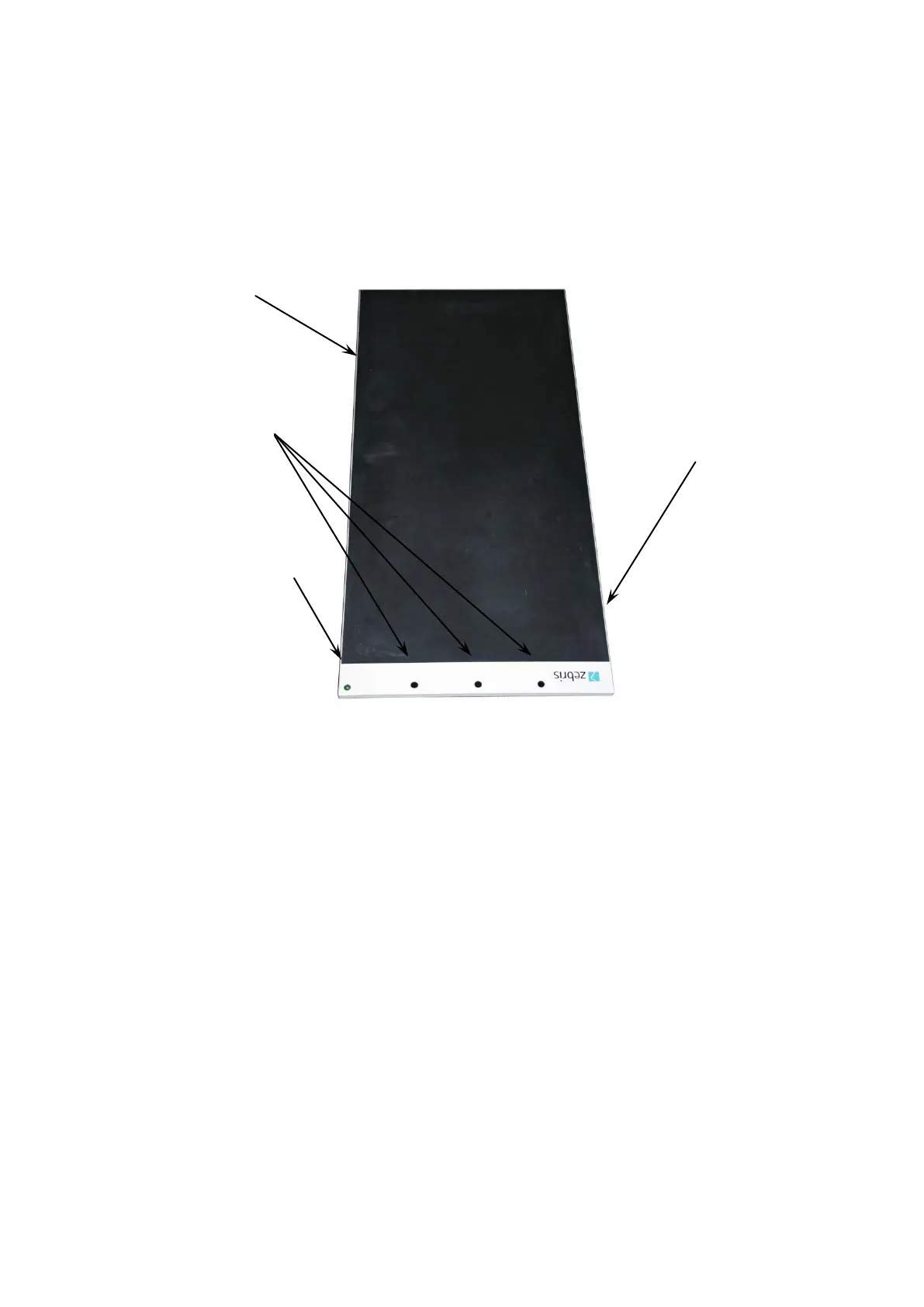

Connector box
