4.2 Infrared synchronization with zebris DAB-Bluetooth (EMG)
For synchronizing the FDM system with the zebris DAB-Bluetooth the optionally available
IR interface which will be integrated within the platform housing is required.
FDM platform and DAB-Bluetooth are synchronized automatically as soon as both devices
have been switched on and a measurement is started.

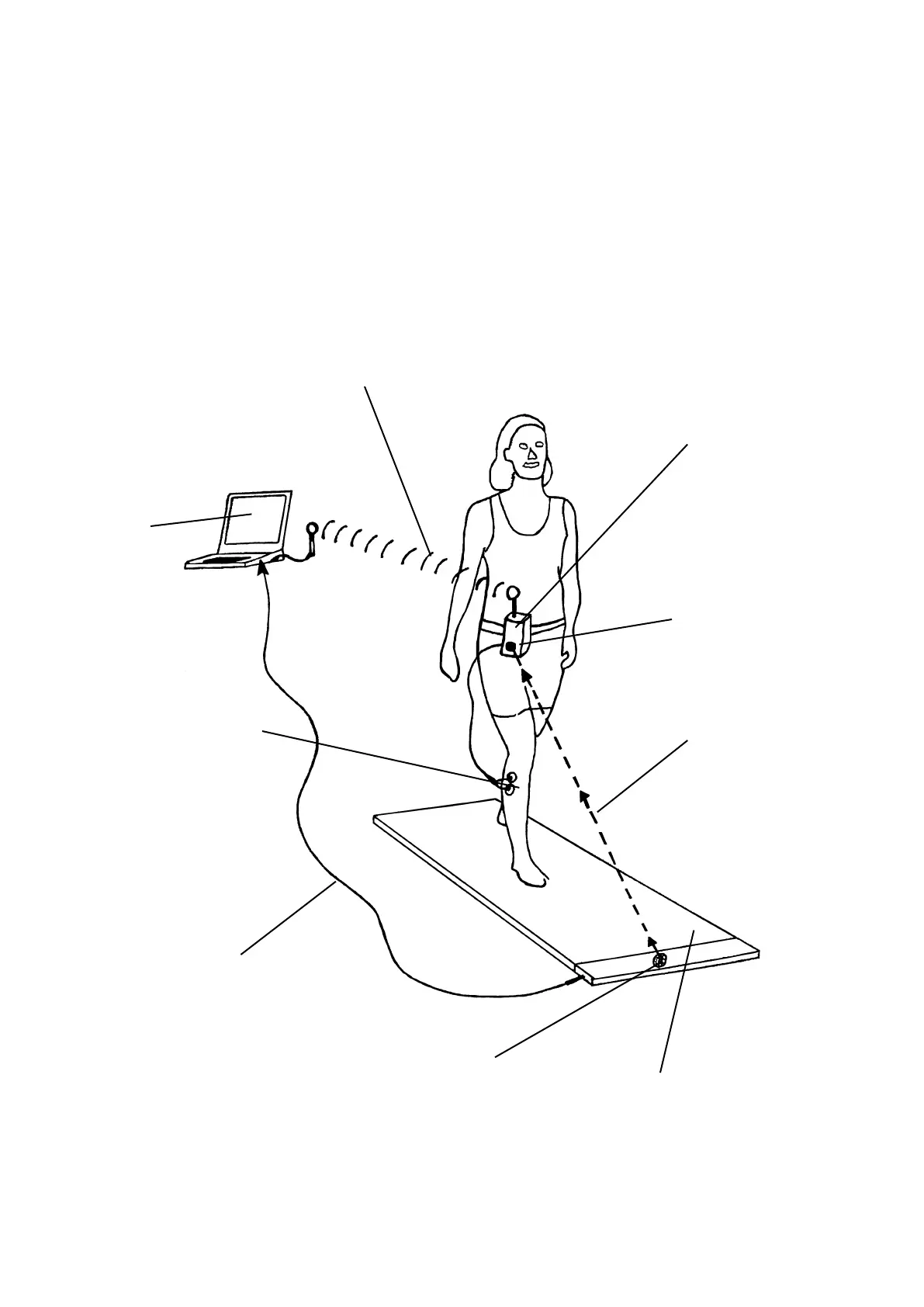

The following schematic diagram shows the interconnection of the FDM-platform and the
zebris DAB-Bluetooth.
FDM-Plattform
Infrared transmitter
USB-interface
Infrared
synchronization
signal
DAB-Bluetooth
Infrared reciever
EMG-electrodes
PC
Transmission of the
EMG signals
via bluetooth interface
