If you connect multiple solar panels as a group in series or parallel, make sure that the maximum operating
voltage (Vm) and maximum operating current (Im) of each group do not exceed the maximum input voltage
(60V) nor the maximum output current (MPPT1 14A, MPPT2 20A). Do not exceed the PV input of the AIO 2400.
The maximum operating voltage (Vm) and the maximum operating current (Im) of solar modules must be
uniform.
Before connecting cables, ensure that the Microinverter, solar panels, and the home grid are disconnected
and AIO 2400 is turned off.
1. Adjust the height of the elevation bracket at the back of the AIO 2400 to the appropriate level, then mount the
Microinverter on the back of the AIO 2400.
2. Connect the PV Input cable from the Microinverter to the Microinverter Output interface of the AIO 2400.
3. Use the original BKW-AC Cable to connect the Microinverter to a household outlet.
4. Connect one 400W solar panel to the PV Input 1 interface of the AIO 2400 using a solar panel extension cable.
1)Connect two 400W solar panels together using a solar panel parallel connection cable.
2)Connect the two parallel-connected 400W solar panels to the PV Input 2 interface of the AIO 2400 using a
solar panel extension cable.

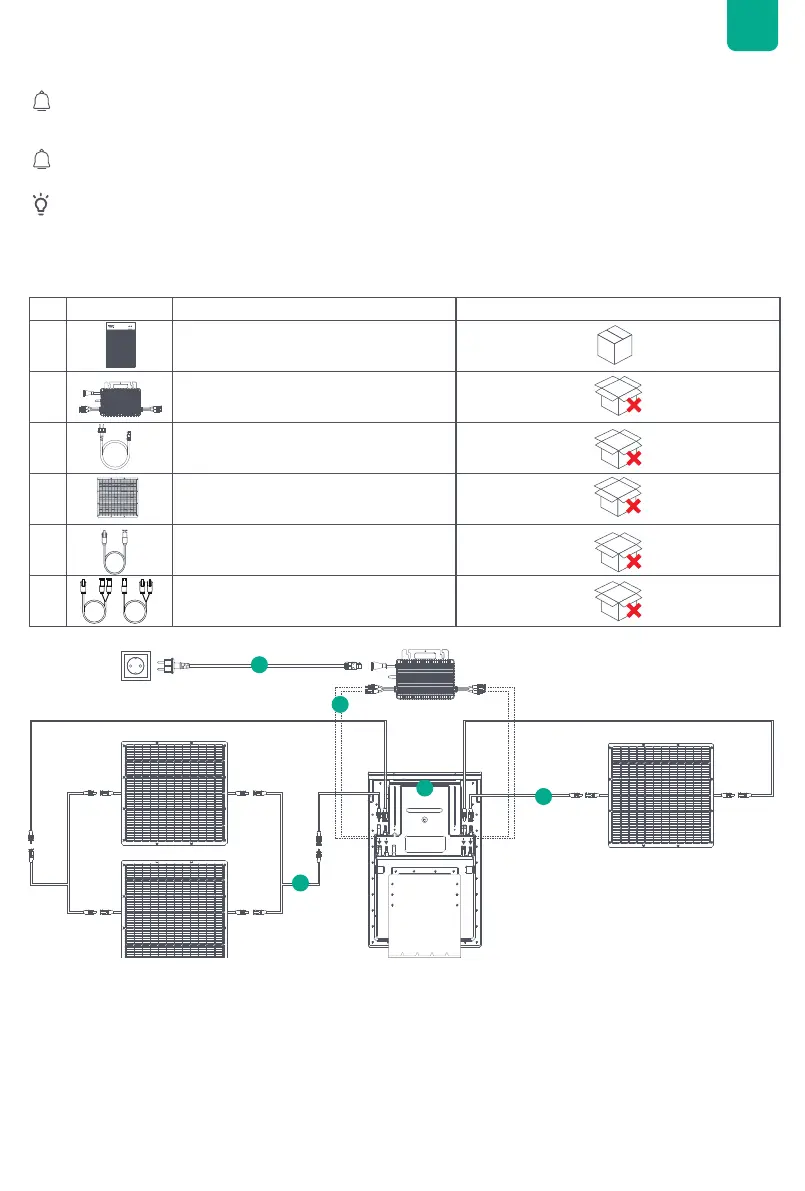

6.3 Connecting Cables
Single AIO 2400
Installation list
NO. Picture Name Part of a basic set / Optional (not included)
1 AIO 2400×1
2 Microinverter×1
3
BKW-AC Cable×1
(*The plug varies by region.)
4 Solar Panel
5 Solar Panel Extension Cable
6 Solar Panel Parallel Cable
√
400W
400W
1
2
3
4
4
EN
To Next Page
