Zenith C27V22 User Manual

PAGE 13
206-3594
Make the HD connections as indicated.
(Appearance of components may vary
from those in the illustrations.)
Plug in your TV. Do not plug it into a
switched outlet. Your Entertainment
Machine is designed to operate on stan-
dard household current, 120-volt 60
Hertz AC. Do not attempt to operate it
on DC power.
Press POWER to turn TV on.
On the remote, press SOURCE repeatedly
until “HD-In” is displayed. Or use the
Source menu to choose HD-In.

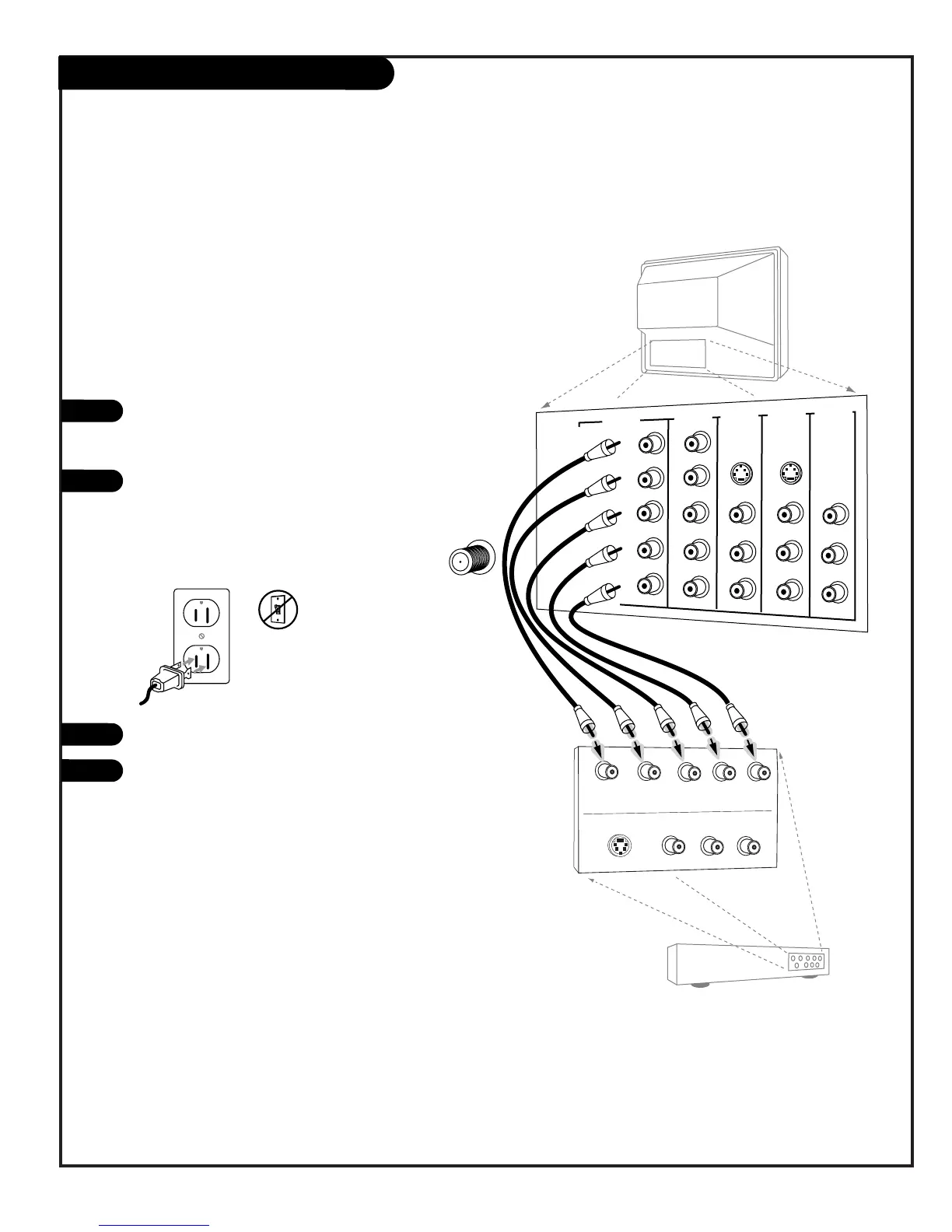

Hook Up HD Equipment
Connecting high-definition equipment
1
2
3
120 V AC
60 Hz
4
TV Back
Pr
Pb
Y
R
L
P
r
Pb
Y
R
L
R
L
R
L
R
L
RGB
VIDEO 2
IN
VIDEO 1
IN
DVD IN
HD IN
MONITOR
OUTPUT
AUDIO
AUDIO
AUDIO
AUDIO
AUDIO
MONO
MONO
VIDEO
VIDEO
VIDEO
S-VIDEO 1
S-VIDEO 2
ANTENNA
CABLE
Set Top Box with
Component Video
HD OUT
Y
Pr
Pb
R
L
S-VIDEO OUT
VIDEO
R-AUDIO
L-/MONO
HD IN
Connect progressive scan or high-definition component
video equipment to HD IN.
Progressive Scan DVD, 480p
EDTV Set top Box, 480p
HDTV Set top Box, 1080i
