10-82

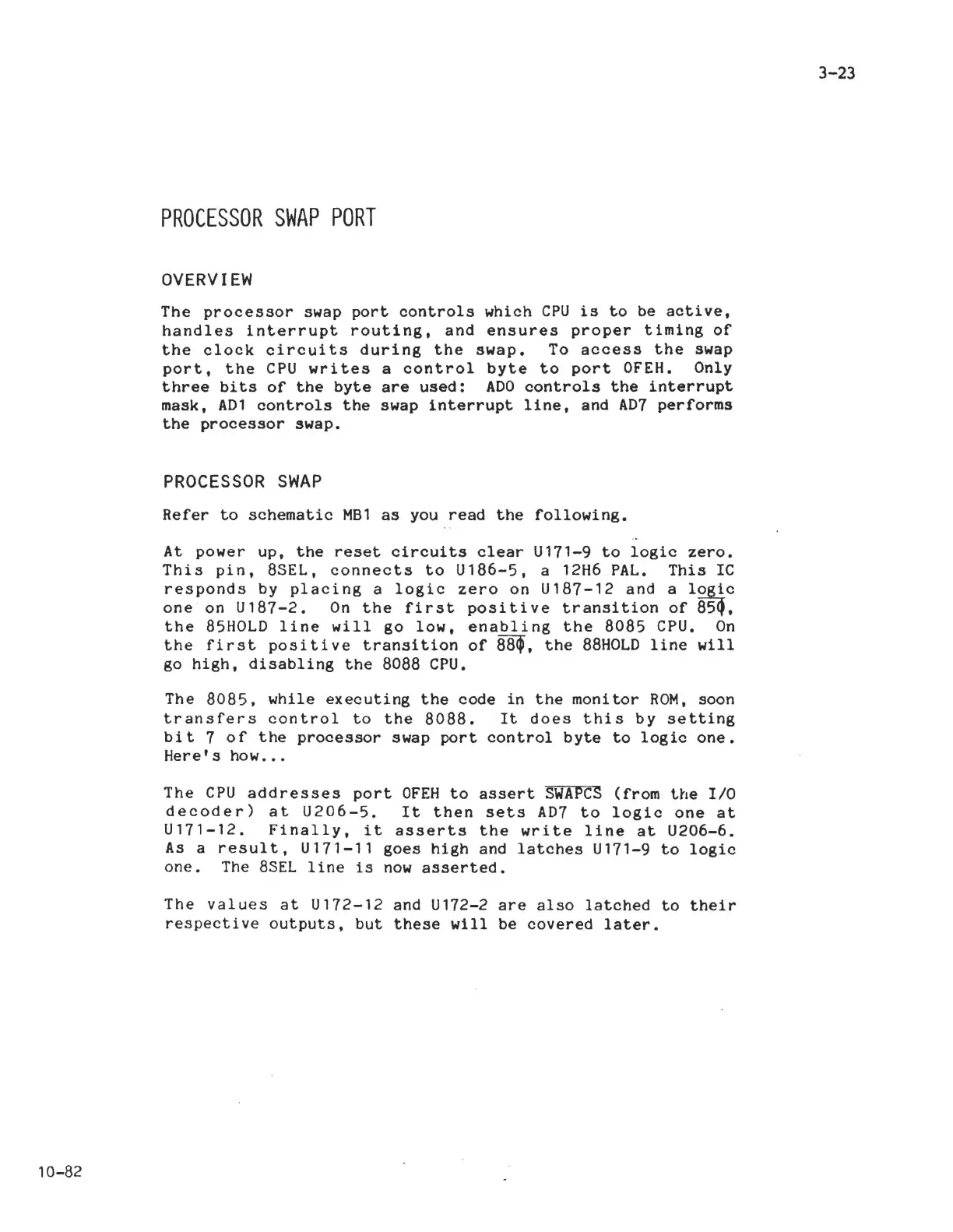

PROCESSOR
SWAP
PORT
OVERVIEW
The
processor
swap
port
controls
which
CPU
is
to
be
active,
handles
interrupt
routing,
and
ensures
proper
timing
of
the
clock
circuits
during
the
swap.
To
access
the
swap
port,
the
CPU
writes
a
control
byte
to
port
OFEH.
Only
three
bits
of
the
byte
are
used:
ADO
controls
the
interrupt
mask,
ADl
controls
the
swap
interrupt
line,
and
AD7
performs
the
processor
swap.
PROCESSOR
SWAP
Refer
to
schematic
MBl
as
you
read
the
following.
At
power
up,
the
reset
circuits
clear
U171-9
to
logic
zero.
This
pin,
8SEL,
connects
to
U186-5,
a 12H6
PAL.
This
IC
responds
by
placing
a
logic
zero
on
U181-12
and
a
l~c
one
on
U181-2.
On
the
first
positive
transition
of
85~,
the
85HOLD
line
will
go
low,
enabling
the
8085
CPU.
On
the
first
positive
transition
of
~,
the
88HOLD
line
will
go
high,
disabling
the
8088
cpu.
The
8085,
while
executing
the
code
in
the
monitor
ROM,
soon
transfers
control
to
the
8088.
It
does
this
by
setting
bit
7
of
the
processor
swap
port
control
byte
to
logic
one.
Here's
how
.•.
The
CPU
addresses
port
OFEH
to
assert
SWAPCS
(from
the
1/0
decoder)
at
U206-5.
It
then
sets
AD7
to
logic
one
at
U111-12.
Finally,
it
asserts
the
write
line
at
U206-6.
As
a
result,
Ul11-11
goes
high
and
latches
U171-9
to
logic
one.
The
8SEL
line
is
now
asserted.
The
values
at
U172-12
and U172-2
are
also
latched
to
their
respective
outputs,
but
these
will
be
covered
later.
3-23
